Labau S320 Quick Manual

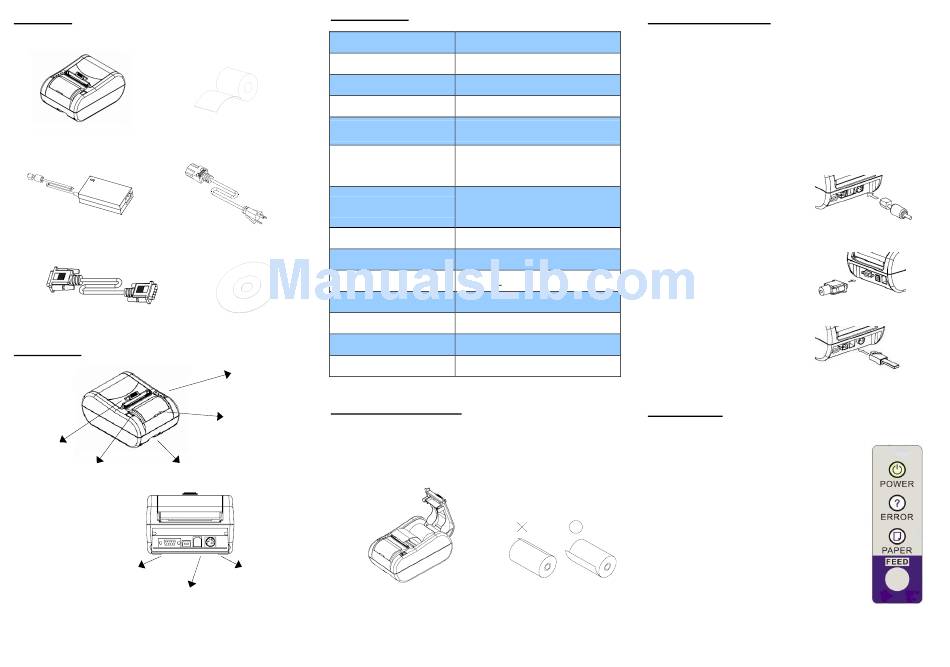

Unpacking
The items illustrated below are included in a standard package.

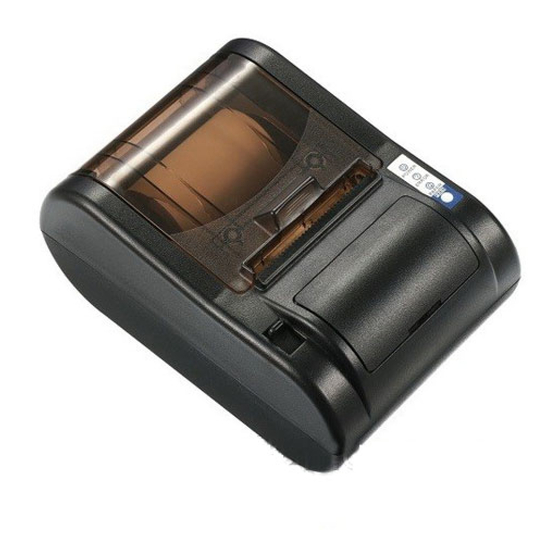

Printer
AC Adapter
Communication Cable
Printer parts
Printer Cover
Printer-Cover Lever Power Switch
Communication Connector
Cash Drawer Connector
1.
Specifications
Printer method
Print speed
Print resolution
Print font
Column capacity
Paper Roll
Character set
Bar code
Power Cord
Interface
Cash drawer port
Paper dimensions
Paper thickness
Power
Windows Driver & Utility
Overall dimension
Weight
Control Panel
Installing the Paper Roll
Cutter Cover
1. Open the printer cover.
2. Insert the paper roll and pull out a small amount of paper, as shown
below.
Power Supply Connector
Direct Thermal Printing
250mm/sec
203 dpi
9(W) × 17(H) / 12(W) × 24(H)
34 characters in Font A,
46 characters in Font B
95 Alphanumeric
32 International
128 × 5 graphics
UPC-A 、 U PC-E 、 E AN-13 、 E AN-8
Code 39 、 C odabar 、 C ode 93 、
Code 128 、 I TF-25
RS-232 and USB / Parallel
RJ-11
+
57 mm 0.5 mm × dia 50 mm
0.06 to 0.12 mm
24V
120(W) × 170(D) × 85 (H) mm
850 g
2.
Connecting the cables
Power supply cable, communication cable, and cash drawer cable.
Note:
Make sure that you use +24V power supply or equivalent for your
printer. Using an incorrect power supply may cause fire or electrical
shock.
1. Turn off the printer and the host computer.
2. Plug the power cord into the adaptor,
then plug the adaptor into the power
connector of the printer.
3. Plug the communication cable into
the communication connector.
4. Plug the drawer cable into the drawer
kick-out connector, if needed.
Control Panel
The control panel has three LEDs and one button.
POWER light---green light
Light on when the power is on
Light off when the power is off.
ERROR light---red light
Light on when an error occurs.
PAPER light---red light
Light when the paper roll is nearly end.
FEED button
Feed the paper.
3.
