Safety, Operations & Maint. Manual
Cleanfix
Cleanfix
This manual is furnished with each new Pelican QuadVac and Pelican QuadVac Auto unit (Model
HBP1224 and HBP1224AD). It provides necessary operation and maintenance instructions.
Model HBP1224
Model HBQ1224AD
READ AND FOLLOW ALL INSTRUCTIONS, WARNINGS AND CAUTIONS BEFORE AND WHEN
All information and specifications printed in this manual are current at the time of printing. However,
because of Cleanfix's policy of continual product improvement, we reserve the right to make changes at
any time without notice.
Copyright ©2006 by Cleanfix Cleaning Systems Inc., 465 West Main St., Wyckoff, NJ 07481.
®
Pelican QuadVac +
®
Pelican QuadVac Auto

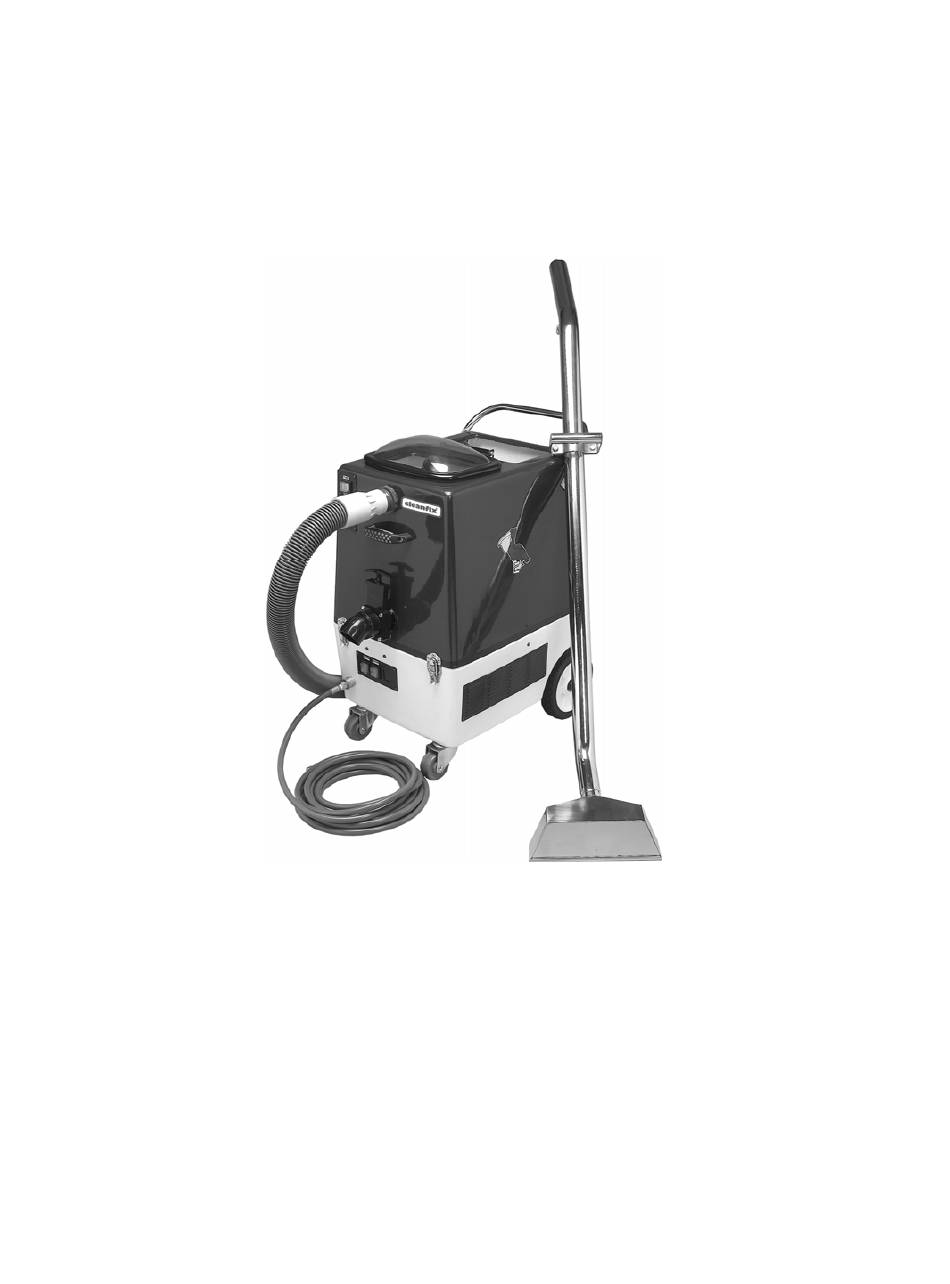

12 GAL. FOUR VACUUM CARPET EXTRACTOR
12 GAL. FOUR VACUUM CARPET EXTRACTOR
- DUAL CORD UNIT W/ AUTO FILL/DRAIN FEATURE
USING THIS EXTRACTOR.
All rights reserved. Content is subject to change. Version 1.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cleanfix Pelican QuadVac +
Summary of Contents for Cleanfix Pelican QuadVac +
- Page 1 USING THIS EXTRACTOR. All information and specifications printed in this manual are current at the time of printing. However, because of Cleanfix’s policy of continual product improvement, we reserve the right to make changes at any time without notice. Copyright ©2006 by Cleanfix Cleaning Systems Inc., 465 West Main St., Wyckoff, NJ 07481.
-
Page 2: When The Machine Is Delivered
3) large debris filter bag (vacuum intake) verified your claim. CLEANFIX’S LIABILITY CEASES WHEN THE SHIPMENT IS PICKED UP BY THE CARRIER. Cleanfix will furnish any PELICAN QUADVAC AUTO information needed to expedite the claim 1) 2” x 25 ft. crush proof vacuum and 3/8”... -
Page 3: Grounding Methods
GENERAL PRECAUTIONS (cont.) • Do not expose machine and wand to • If an extension cord is necessary, use a 12 freezing temperatures or store in areas ga. or heavier grounding cord to prevent where the solution lines can freeze. The motor burnout and overheating of wires. - Page 4 FUNCTIONAL PARTS AND ACCESSORIES PELICAN QUADVAC Front View (1) Recovery tank with clear high impact (6) Drain valve for recovery tank – Pull “T” resistant dome – Dome must be closed handle up to open. Drain valve must be when using the machine. closed after each use.
- Page 5 FUNCTIONAL PARTS AND ACCESSORIES (cont.) PELICAN QUADVAC Rear view (10) (11) (12) (13) (10) Power cord for primary vacuum motors. motors is plugged into a second circuit, independent from the circuit where the (11) Cooling fan for motor compartment. first cord is plugged in. Maintain clearance between a wall and the machine.
- Page 6 FUNCTIONAL PARTS AND ACCESSORIES (cont.) PELICAN QUADVAC AUTO Front View (10) (1) Recovery tank with clear high impact (7) Latches to motor compartment – Latches resistant dome – Dome must be closed must be secured when using the when using the machine. machine.
- Page 7 FUNCTIONAL PARTS AND ACCESSORIES (cont.) PELICAN QUADVAC AUTO Rear view (11) (12) (14) (13) (15) (16) (17) (18) (11) Female coupler for 5/8” fill hose. (15) Power cord for secondary vacuum Connect red hose. motors and waste pump. (12) Chemical feed adjuster. (16) Cooling fan for motor compartment.
- Page 8 OPERATING INSTRUCTIONS A) PELICAN QUADVAC (MODEL HBQ1224) 1) Connect one end of the vacuum hose to the 7) Turn on all the two GREEN SWITCHES on vacuum hose adaptor on the machine and the lower part of the machine (VACUUM 3 the other end of the vacuum hose to the VACUUM (secondary...
- Page 9 5) Add recommended amount of DEFOAMER to prevent streaks. Make an additional pass into the recovery tank. on the area previously cleaned without applying solution to speed up drying. The 6) Plug the machine into two, independent and use of an AIR MOVER will also speed up dedicated 120 VOLT, 15 AMP circuits.
-
Page 10: Troubleshooting
TROUBLESHOOTING Symptom: No power to the machine! Problem: Blown fuse/circuit breaker has tripped. Solution: Replace fuse with the same rating. Reset circuit breaker. Make sure no other appliances are connected on the same circuit as the machine. The machine requires two independent dedicated 15 amp circuits. - Page 11 TROUBLESHOOTING (cont.) Symptom: Weak vacuum! Problem: Worn out lid gasket. Solution: Replace lid gasket (# 12062). Problem: Defective vacuum motor (noisy bearing, carbon brush sparking burn out armature & worn out carbon brush). Solution: Replace vacuum motor (# 12210) and motor gasket (# 12062.1). Problem: Lint accumulation on vacuum filter screen.
- Page 12 No person, agent, representative or distributor the written warranty. Cleanfix will not be liable for any other is authorized to give any warranties on behalf of Cleanfix, or to damages, including but not limited to incidental, indirect or...
