Discription

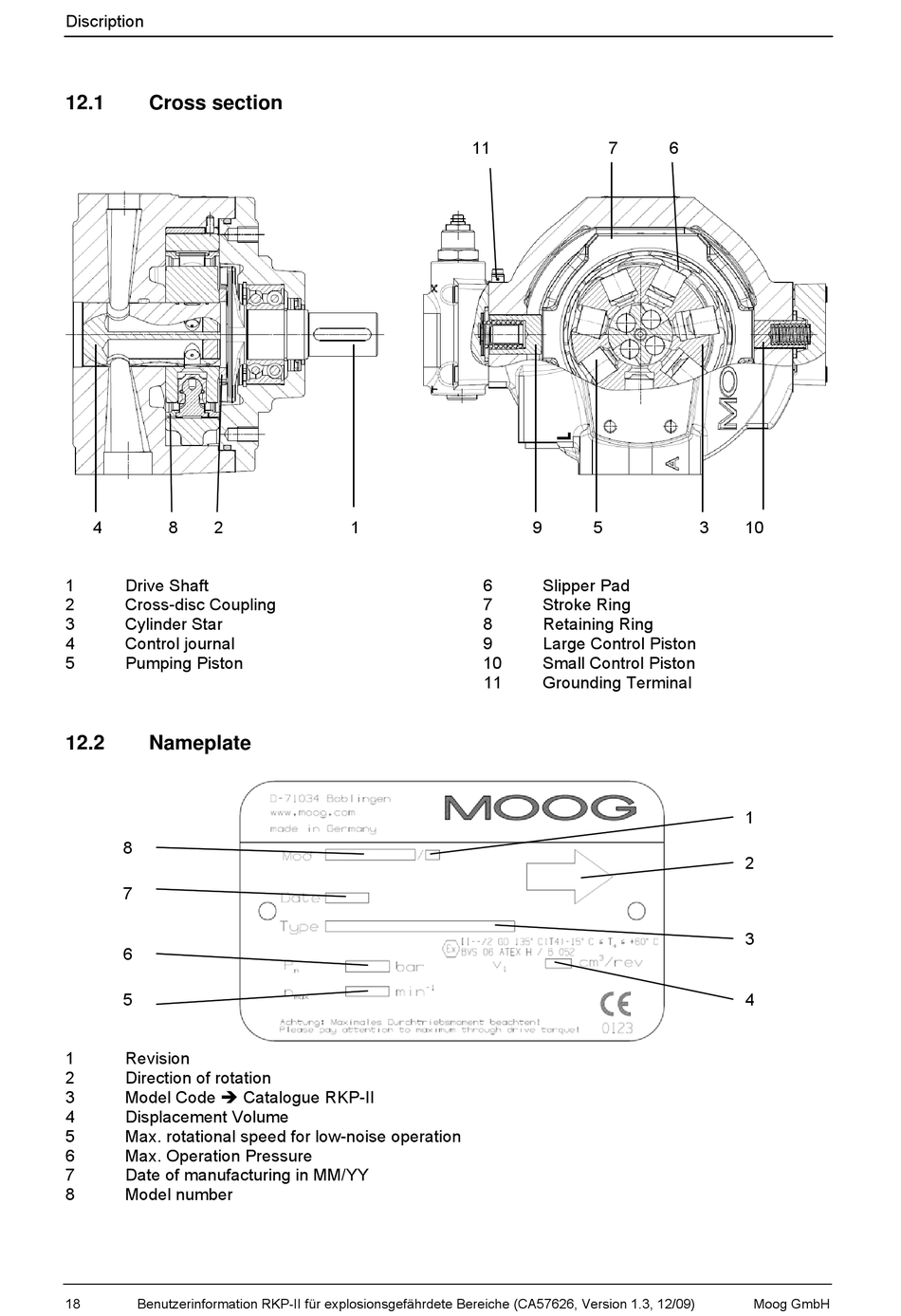

12.1

Cross section

4 8 2
1 Drive Shaft
2 Cross-disc Coupling
3 Cylinder Star
4 Control journal
5 Pumping Piston
12.2

Nameplate

8
7
6
5
1 Revision
2 Direction of rotation
3 Model Code  Catalogue RKP-II
4 Displacement Volume
5 Max. rotational speed for low-noise operation
6 Max. Operation Pressure
7 Date of manufacturing in MM/YY
8 Model number
18 Benutzerinformation RKP-II für explosionsgefährdete Bereiche (CA57626, Version 1.3, 12/09)
11
1
6
7
8
9
10
11
7 6
9 5 3
Slipper Pad
Stroke Ring
Retaining Ring
Large Control Piston
Small Control Piston
Grounding Terminal
10
1
2
3
4
Moog GmbH
