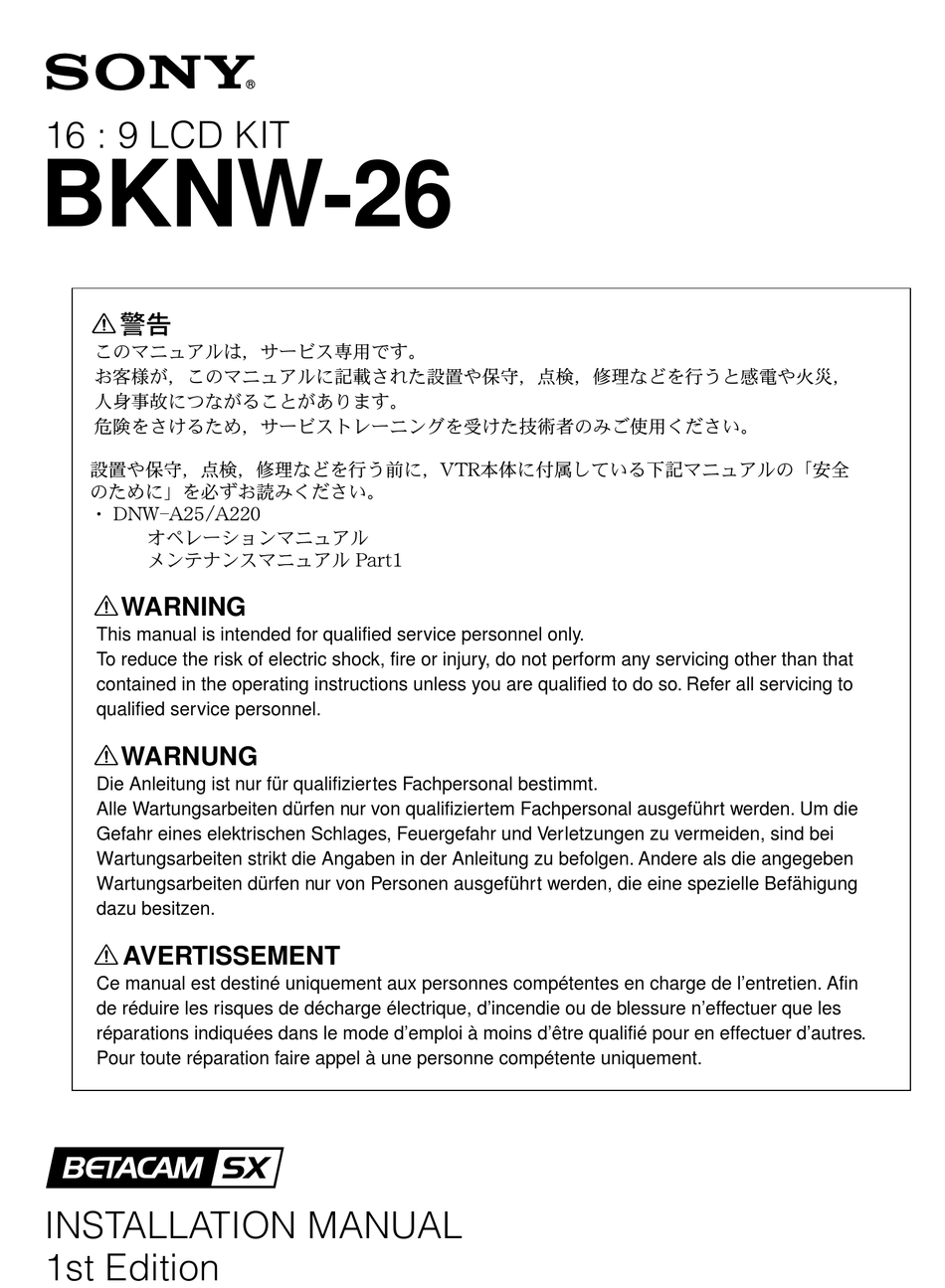

16 : 9 LCD KIT
BKNW-26
! WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
! WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
! AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l'entretien. Afin
de réduire les risques de décharge électrique, d'incendie ou de blessure n'effectuer que les
réparations indiquées dans le mode d'emploi à moins d'être qualifié pour en effectuer d'autres.
Pour toute réparation faire appel à une personne compétente uniquement.
INSTALLATION MANUAL
1st Edition

Advertisement

loading

Summary of Contents for Sony BKNW-26

  • Page 1 16 : 9 LCD KIT BKNW-26 ! WARNING This manual is intended for qualified service personnel only. To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified service personnel.
  • Page 3: Section 1 Installation

    KY ROM: Version 2.00 and higher Installation of BKNW-26 1-1. Specifications of DP-265B Board The BKNW-26 (DP-265B board) is replaced with the DP- 265/265A board installed in the VTR. General Be sure to attach the BKNW-26 in accordance with Dimensions (w/h) 163 x 145 mm Section 1-3.
  • Page 4: Installation Procedures

    KY ROM: Version 2.00 and higher When each ROM version is lower than 2.00, the picture is not displayed properly even if the BKNW-26 is correctly installed. When updating the software is 4. Remove the four screws (B2 x 4).
  • Page 5 * * * * * in illustrations (up to 910 lot) Re-attachment CN12 CN10 CN11 Shielding plate (A) assembly Not required Tape Shield wire Not required Screw (PS3 x 10) Required Shield plate Required Bonding wire Required DP shield case Required DP-265A board 1-3 (E) BKNW-26...
  • Page 6 1-3. Installation Procedures When having removed five harnesses Attaching the BKNW-26 (DP-265B board) Reconnect the harnesses to CN5, CN6, CN10, CN11 1. Connect the DP-265B board to the CN-1541 board. and CN12 on the DP-265B board respectively, and then clamp the harnesses for CN10 and CN12 by the When having removed the DP shield case in step 7 of lead pin.
  • Page 7 * : The parts marked by an asterisk are not used in the units of 910 lot or later. 8. Turn on the power of the VTR, and then check that a picture of the LCD monitor is properly displayed. 1-5 (E) BKNW-26...
  • Page 9 The material contained in this manual consists of information that is the property of Sony Corporation. Sony Corporation expressly prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual without the express written permission of Sony Corporation.
  • Page 10 Printed in Japan Sony Corporation BKNW-26 (SY) J, E 2001. 12 08 B&P Company 3-206-722-01 ©2001...
