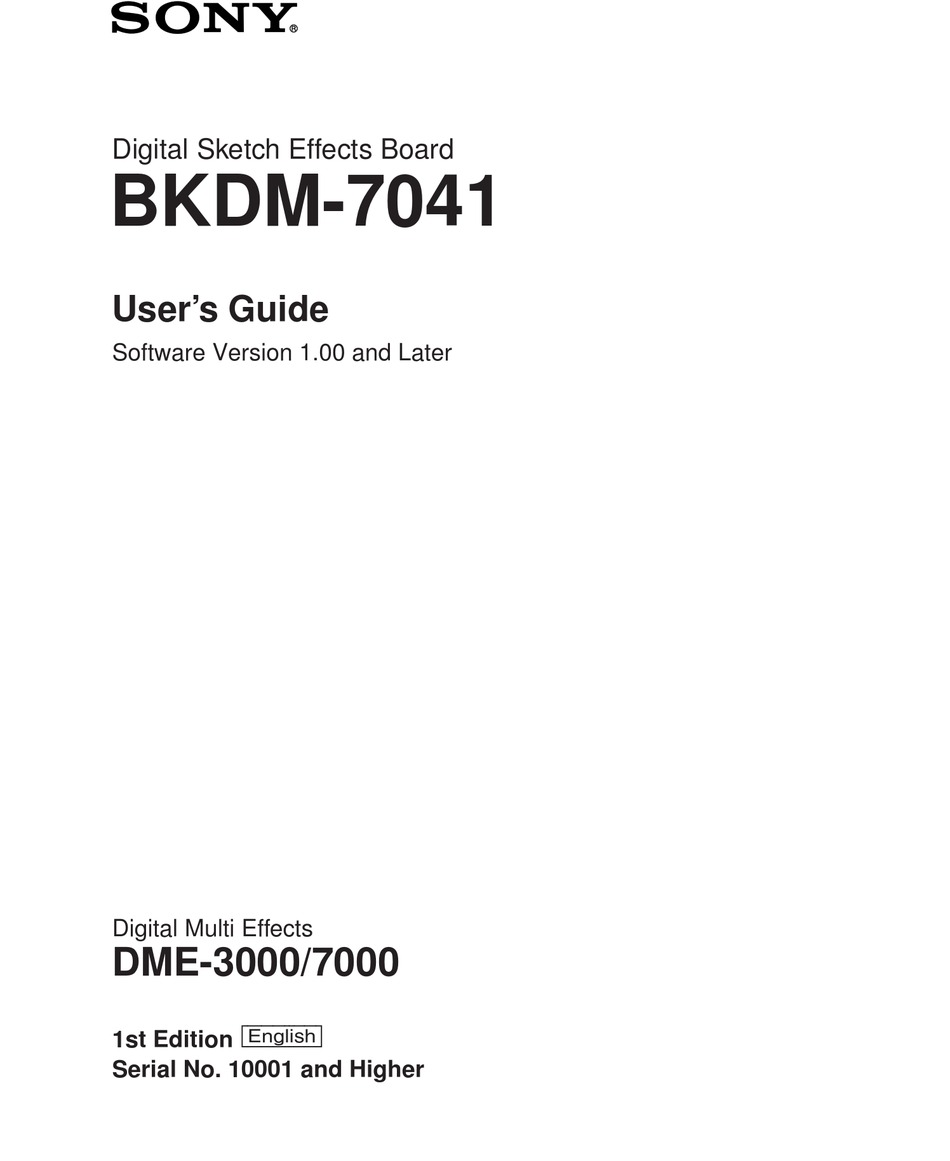

Digital Sketch Effects Board
BKDM-7041
User's Guide
Software Version 1.00 and Later
Digital Multi Effects
DME-3000/7000
1st Edition [English]
Serial No. 10001 and Higher

Advertisement

Table of Contents

   Related Manuals for Sony BKDM-7041

   Summary of Contents for Sony BKDM-7041

  • Page 1 Digital Sketch Effects Board BKDM-7041 User’s Guide Software Version 1.00 and Later Digital Multi Effects DME-3000/7000 1st Edition [English] Serial No. 10001 and Higher...
  • Page 2 NOTICE FOR USERS l’utilisateur peut être amené à prendre des © 1996 Sony Corporation. All rights reserved. mesures appropriées. This manual or the software described herein, in whole or in part, may not be reproduced, translated or reduced to any machine readable Für Kunden in Europa...
  • Page 3 Contents Digital Sketch Effects ..............2 Overview ................2 BEVELED EDGE Settings – 18 ..........3 SKETCH Settings – 46 ............5 COLOR GRABBER Settings – 78 ........10...
  • Page 4 Digital Sketch Effects Digital Sketch Effects Overview The BKDM-7041 consists of an option board and software which enable the use of the so-called Digital SKETCH™ Effects, including the BEVELED EDGE and SKETCH effects. You can use this option not only with the DME-7000 but also with the DME-3000.
  • Page 5 BEVELED EDGE Settings – 18 This gives an image a beveled edge. LIGHT MATTE In the BKGD & EDGE menu, select F8 (BEVELED EDGE) to display the BEVELED EDGE menu. 18.1 BEVELLED PATTERN EDGE SOFT EDGE EDGE MODE SOURCE BEVELED EDGE menu soft key indications The following are some of the operations carried out in this menu.
  • Page 6 Digital Sketch Effects Adjust the “Width” parameters. • Left knob (“H”): width of left and right beveled edges (0 to 100%) • Center knob (“V”): width of top and bottom beveled edges (0 to 100%) • Right knob (“All”): width of all beveled edges (***) (The “All”...
  • Page 7 Adjust the parameters for the edges. “MATTE” parameters • Left knob (“Lum”): luminance (0 to 100%) • Center knob (“Sat”): saturation (0 to 100%) When you selected “FLAT COLOR”: • Right knob (“Hue”): hue (0 to 359.99 degrees) When you selected “HUE ROT”: •...
  • Page 8 Digital Sketch Effects Applying a sketch effect – F1 (SKETCH) to F3 (NEGA) Use the following procedure. Press F1 (SKETCH), turning it on. Press F2 (MODE), to select “SKETCH”. The soft key indications appear as follows. SKETCH MODE NEGA SKETCH menu soft key indications (“SKETCH” mode) Adjust the “Contour”...
  • Page 9 Adjust the “Contour” parameters. • Left knob (“Clip”): reference level for outline extraction (0 to 100%) • Right knob (“Mix”): mix amount for input video (0 to 100%) Adjust the “Chroma gain” parameters. • Left knob (“Gain”): chroma gain of sketch image (–100 to +100%) To interchange the outline portions and non-outline portions, press F3 (NEGA).
  • Page 10 Digital Sketch Effects Adjust the “Contour” parameters. • Left knob (“Clip”): reference level for outline extraction (0 to 100%) • Right knob (“Mix”): mix amount for input video (0 to 100%) To apply a color to the outline portions, press F4 (EDGE FLAT) or F5 (EDGE HUE ROT), turning it on, then adjust the parameters.
  • Page 11 Applying a relief effect – F1 (SKETCH) to F4 (CHROMA TYPE) Use the following procedure. Press F1 (SKETCH), turning it on. Press F2 (MODE), to select “RELIEF”. The soft key indications appear as follows. SKETCH MODE RELIEF CHROMA PATTERN TYPE SKETCH menu soft key indications (“RELIEF”...
  • Page 12 Digital Sketch Effects COLOR GRABBER Settings – 78 This allows you to extract a color from an input image for use by an internal color matte generator. For details, see the BKDM-7020 User’s Guide, or the supplement to the BZDM-3020.
  • Page 13 The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the purchasers of the equipment described in this manual. Sony Corporation expressly prohibits the duplication of any portion of this manual or the use thereof for any...
  • Page 14 BKDM-7041 Printed in Japan Sony Corporation (WW, 1999.12.13 © 1996 B & P Company 3-810-460-01(2)
