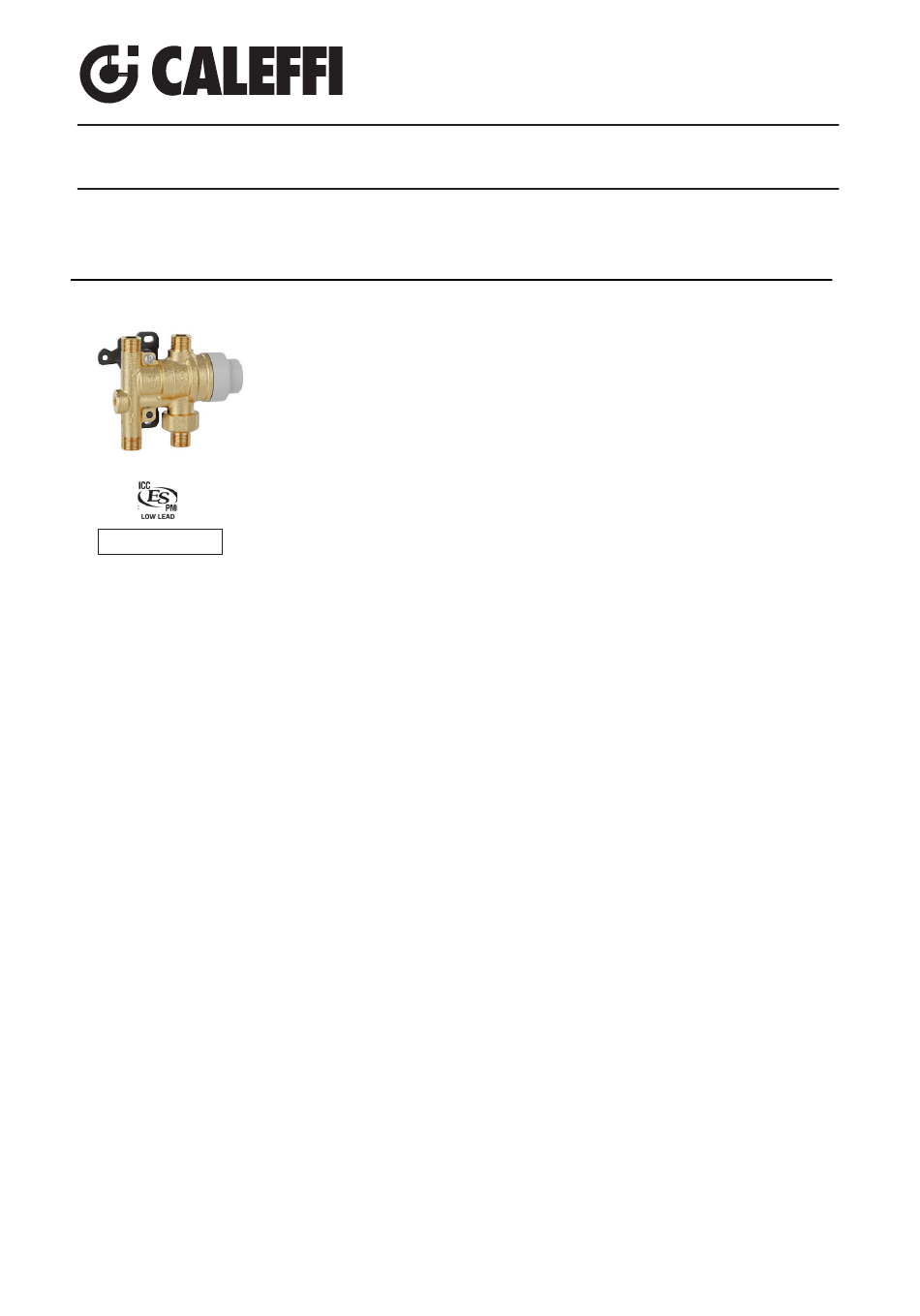

CALEFFI SinkMixer 521201A Installation And Commissioning Manual

SinkMixer™ Under Sink Thermostatic Mixing Valve
© Copyright 2019 Caleffi
INSTALLATION AND COMMISSIONING MANUAL
ASSE 1070
Product range
521201A SinkMixer Under sink thermostatic mixing valve with compression union
connections...................................................................................................................size
Technical specifications
Materials:
- Valve body, regulating spindle, spring holder and cold inlet union nut:
- Internal shutter:
- Hot inlet strainer:
- Spring:
- Seals:
- Cover:
- Mounting bracket and adjustment key:
Temperature adjustment range:
Temperature set:
Temperature stability:
Cold inlet temperature:
Hot inlet temperature:
Maximum operating differential pressure:
Minimum operating differential pressure (dynamic):
Maximum unbalanced dynamic supply (hot/cold or cold/hot):
Minimum temperature differential between hot water inlet
and mixed water outlet to ensure thermal shutoff function:
Minimum temperature differential between mixed water outlet
and cold water inlet to ensure stable operation:
Minimum flow rate for stable operation:
Certifications:
1. ASSE 1070/CSA B125.3-2012, certified by ICC-ES, file PMG-1358.
2. NSF/ANSI 372-2011, Drinking Water Systems Components-Lead Content Reduction of Lead in
Drinking Water, California Health and Safety Code 116875 S.3874, Reduction of Lead in Drinking
Water Act, certified by ICC-ES, file PMG-1360.
3. Complies with codes IPC, IRC, UPC and NPC.
Function
The Caleffi SinkMixer™ thermostatic mixing valve is used in under sink
and under counter applications where the user must be protected from
the danger of scalding caused by hot water. The Caleffi SinkMixer, code
521201A, provides water at a safe and usable temperature in situations
where the control of the temperature of the water discharging from a
terminal fitting is of the utmost importance, i.e. within hospitals, schools,
nursing homes, etc. The valve is designed to prevent the flow of water
discharging from the mixed water outlet in the event of the failure of hot
or cold supply. It is compact for easy installation and includes a cold
water outlet to the fixture eliminating the need for additional piping and
a tee for standard three-port mixing valves. It has integral check valves
on the hot and cold inlets and is certified to Low Lead Plumbing Law by
ICC-ES, ASSE 1070 listed (temperature cannot exceed 120°F).
must be commissioned on site to achieve desired temperature
www.caleffi.com
Low-lead brass (<0.25% lead content)
Minimum 39°F (4°C); Maximum 85°F (29°C)
Minimum 120°F (49°C); Maximum 195°F (90°C)
Static: 150 psi (10 bar); Dynamic: 70 psi (5 bar)
1
H0007288
code 521201A
3
Polysulfone
AISI 304 stainless steel
AISI 302 stainless steel
Peroxide-cured EPDM
ABS white
Polyamide Nylon
95–120°F (35–50°C)
±3°F (±2°C)
1.5 psi (0.1 bar)
18°F (10°C)
9°F (5°C)
0.35 gpm (1.3 l/min)
/ "
8
2:1
