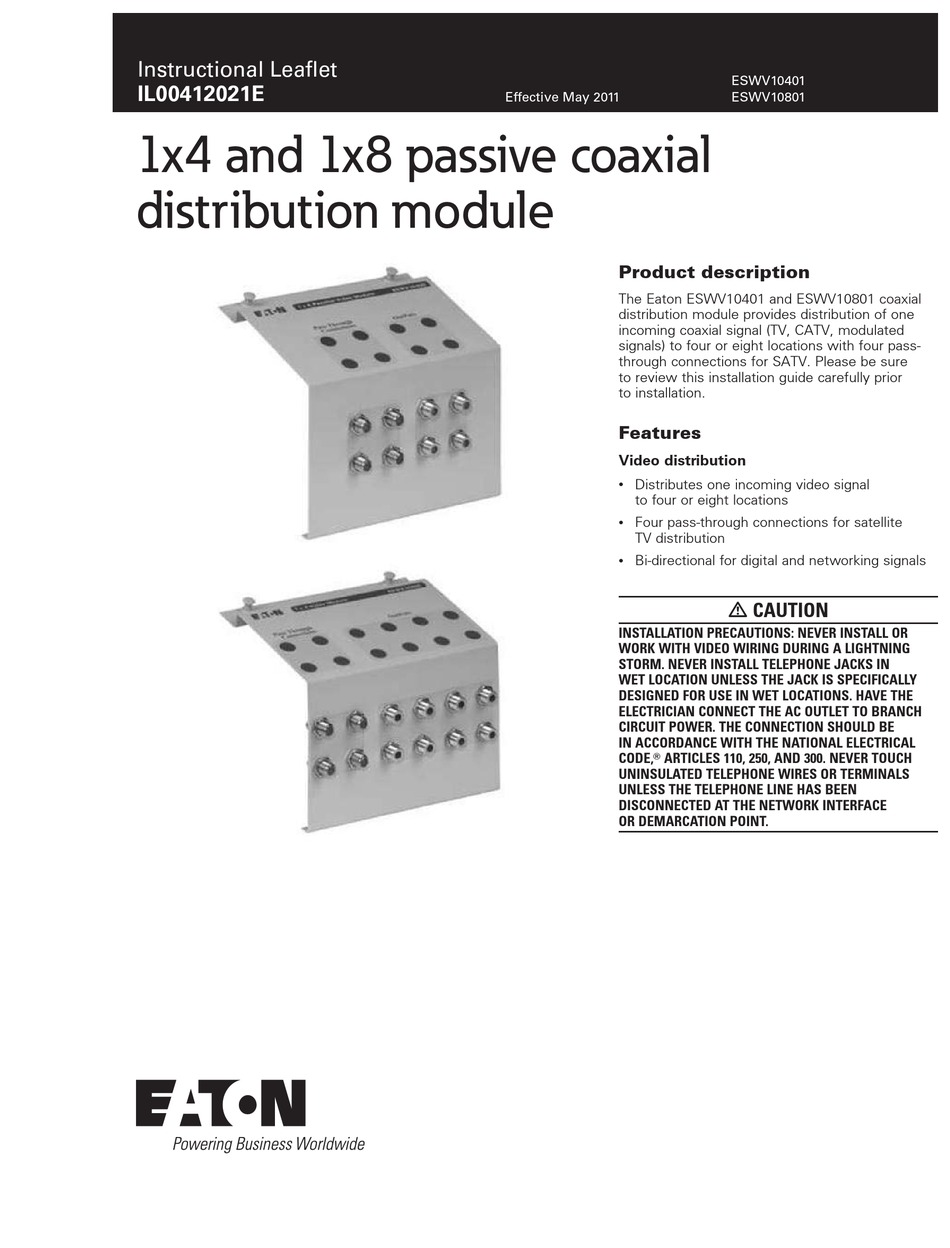

Instructional Leaflet
IL00412021E
1x4 and 1x8 passive coaxial
distribution module
Effective May 2011
Product description
The Eaton ESWV10401 and ESWV10801 coaxial
distribution module provides distribution of one
incoming coaxial signal (TV, CATV, modulated
signals) to four or eight locations with four pass-
through connections for SATV. Please be sure
to review this installation guide carefully prior
to installation.
Features
Video distribution
Distributes one incoming video signal
•
to four or eight locations
Four pass-through connections for satellite
•
TV distribution
Bi-directional for digital and networking signals
•
installation preCautions: never install or
work with video wiring during a lightning
storm. never install telephone jaCks in
wet loCation unless the jaCk is speCifiCally
designed for use in wet loCations. have the
eleCtriCian ConneCt the aC outlet to branCh
CirCuit power. the ConneCtion should be
in aCCordanCe with the national eleCtriCal
Code,T artiCles 110, 250, and 300. never touCh
uninsulated telephone wires or terminals
unless the telephone line has been
disConneCted at the network interfaCe
or demarCation point.
ESWV10401
ESWV10801
Caution
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eaton ESWV10401
Summary of Contents for Eaton ESWV10401
- Page 1 ESWV10801 1x4 and 1x8 passive coaxial distribution module Product description The Eaton ESWV10401 and ESWV10801 coaxial distribution module provides distribution of one incoming coaxial signal (TV, CATV, modulated signals) to four or eight locations with four pass- through connections for SATV. Please be sure to review this installation guide carefully prior to installation.
- Page 2 SATV connections 1. Run an RG6 coaxial cable from the video source (antenna or cable TV D-marc) location to the ESWV10401 or ESWV10801. 2. Connect the RG6 cable to the RF input located on the rear of the coaxial distribution module (see Figure 1).
