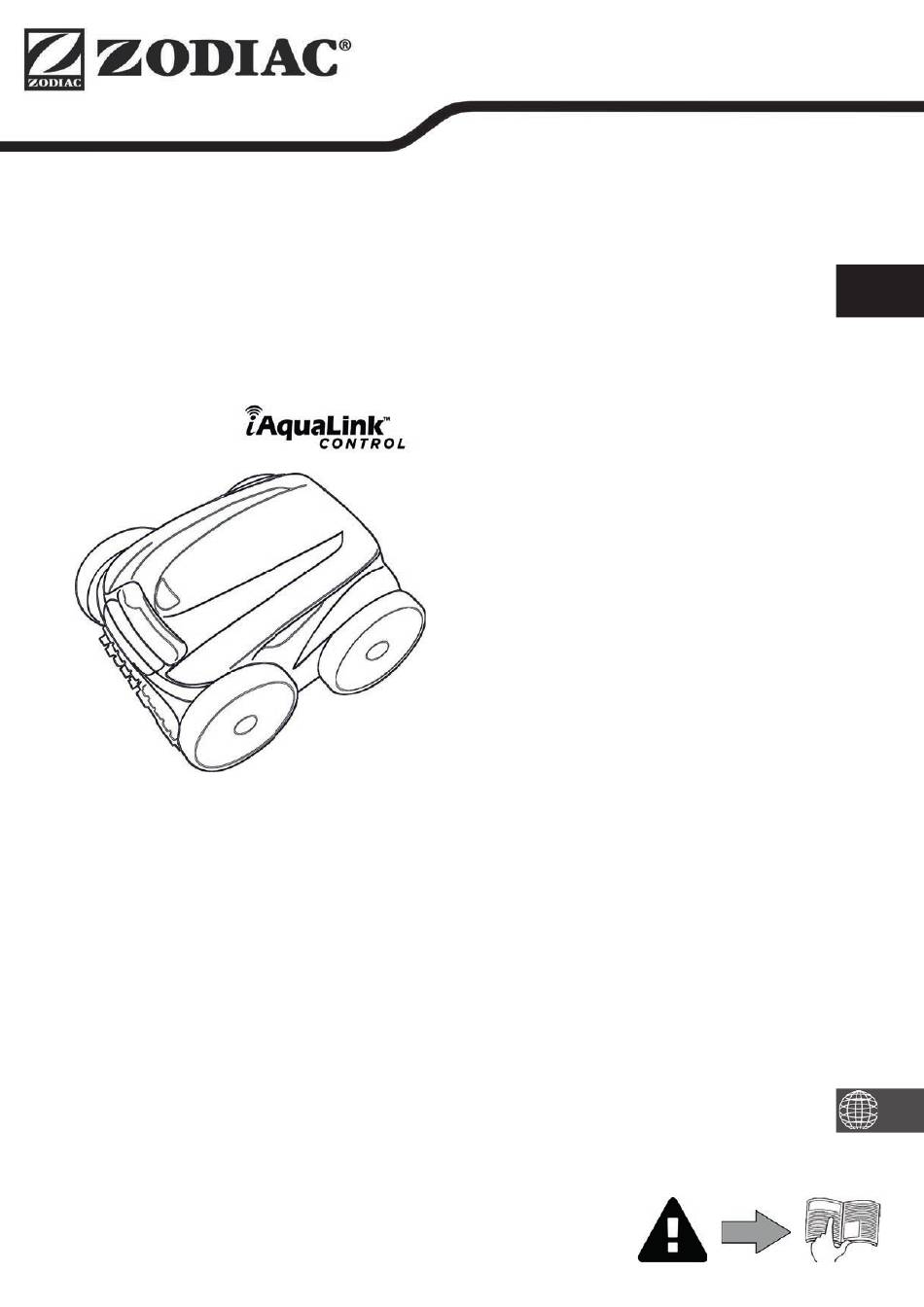

- Page 1 Vortex™ iQ Instructi ons for installati on and use - English Electric pool cleaner Translati on of the original instructi ons in French More documents on: www.zodiac.com H0605500.REVC - 2019/10 - EC11--...
- Page 2 WARNINGS GENERAL WARNINGS • Failure to respect the warnings may cause serious damage to the pool equipment or cause serious injury, even death. • Only a person qualifi ed in the technical fi elds concerned (electricity, hydraulics or refrigerati on) is authorised to carry out maintenance or repair work on the appliance.
-
Page 3: Table Of Contents
• The distributi on or modifi cati on of this document in any way is prohibited, without prior authorisati on from Zodiac®. • Zodiac® is constantly developing its products to improve their quality. The informati on contained herein may therefore be modifi ed without noti ce. -
Page 4: ❶ Specifi Cati Ons 3 En
❶ Specifi cati ons 1.1 I Descripti on (x2) (x2) (x2) (x2) Cleaner + fl oati ng cable Front/rear driving wheels (4WD) Control box Caddy kit 100µ fi ne debris fi lter 200µ large debris fi lter 60µ very fi ne debris fi lter Protecti ve cover : Included : Opti onal extra... -
Page 5: I Technical Specifi Cati Ons And Parts List
1.2 I Technical specifi cati ons and parts list 1.2.1 Technical specifi cati ons 220 - 240 VAC, 50Hz, short circuit-resistant safety separator* Control box power supply Cleaner power supply 30 VDC Maximum power input 150 W Cable length 18 m Cleaner size (L x W x h) 43 x 48 x 27 cm Package size (L x W x H) -
Page 6: ❷ Installati On
❷ Installati on 2.1 I Set-up 3.5 metres Minimum : Control box : Caddy : Cleaner : Floati ng cable : Plug : Power cord : “iAquaLink™” remote control... -
Page 7: Assembling The Caddy
2.2 l Assembling the caddy • Tool-free assembly (x2) (x2) (x2) Lightly ti ghten the nut Finish ti ghtening the... -
Page 8: ❸ General Use
❸ General use 3.1 I Operati ng principle The cleaner is separate from the fi ltrati on system and can functi on independently. It simply needs connecti ng to the mains. It fi nds the best route to move around and clean the areas of the pool for which it has been designed (depending on the model: fl... -
Page 9: I Electricity Supply Connecti On
3.4 I Electricity supply connecti on In order to avoid any risk of electrocuti on, fi re or serious injury, please follow the instructi ons below: • Use of an electrical extension is prohibited when connecti ng the control box. •... -
Page 10: The Control Box
3.5 l The control box The control box allows the main functi ons to be used and the cleaner to be connected to the home Wi-Fi network, see “❹ Control using the iAquaLink™ app". LEDs on when the connecti on is confi rmed: LED on when Wi-Fi direct LAN: Home Wi-Fi connecti on mode is acti vated... -
Page 11: I Starti Ng And Stopping A Cleaning Cycle
3.6 I Starti ng and stopping a cleaning cycle In order to avoid any risk of injury or material damage, please follow the instructi ons below: • Bathing is prohibited when the appliance is in the pool. • Do not use the appliance during a shock chlorinati on. Wait unti l the chlorine level has reached the recommended value before immersing the cleaner. - Page 12 3.6.2 Stopping a cleaning cycle • To avoid damaging the equipment: Do not pull on the cable to remove the appliance from the pool. Use the handle. - Do not leave the appliance to dry out in sunlight aft er use. - Store all the elements away from sunlight, humidity and bad weather.
-
Page 13: ❹ Control Using The Iaqualink™ App
❹ Control using the iAquaLink™ app Mobile device Home Wi-Fi Cleaner (smartphone or tablet) Cleaner network control box The iAquaLink™ app is available for iOS and Android systems. With the iAquaLink™ app, you can control the cleaner from any locati on at any ti me and have the benefi t of advanced functi ons such as additi onal programming and troubleshooti ng assistance. -
Page 14: I Iaqualink™ Remote Control
• It can take several minutes to connect. • If an error message appears or the connecti on sti ll isn't made, refer to the table“6.3 I Troubleshooti ng the connecti on to the iAquaLink™ app". • It is possible to customise the cleaner's name, so that it can be found easily in the “My appliances” page if there are several appliances connected to the iAquaLink™... - Page 15 4.3.2 Start / Stop cleaning and adjust the cleaning ti me • When confi guring the cleaner, choosing the pool shape allows you to set up customised cleaning modes. By default, the cleaning surface is Floor, Walls and Water Line. •...
- Page 16 4.3.5 "Lift System” remove from pool mode The Lift System functi on was designed to facilitate removing the cleaner from the water. It may be acti vated at any ti me, during or at the end of a cleaning cycle. •...
- Page 17 4.3.7 Error messages and troubleshooti ng - in the iAquaLink™ app If an error is detected, a warning symbol will be displayed on the home screen • Press the warning symbol to display the troubleshooti ng soluti ons, see “6.2 I Error codes". •...
-
Page 18: ❺ Maintenance
❺ Maintenance To avoid serious injury: • Disconnect the cleaner from the power supply. 5.1 I Cleaning the cleaner • The appliance must be cleaned regularly using clean or slightly soapy water. Do not use solvents. • Rinse the appliance thoroughly with clean water. •... -
Page 19: I Cleaning The Propeller
5.3 I Cleaning the propeller To avoid serious injury: • Disconnect the cleaner from the power supply. Disconnect the cleaner from the power supply. Disconnect the cleaner from the power supply. • Wear gloves when maintaining the propeller • Loosen the screw on the grid (see image •... -
Page 20: I Replacing The Brushes
5.4 I Replacing the brushes • Each brush is equipped with wear indicators, the diff erence between the indicators and the end of the brush indicates that the brush is in good conditi on (see image • When the wear indicators look like those shown in the image , the brushes are worn and must be replaced. -
Page 21: I Changing The Tyres
5.5 I Changing the tyres... -
Page 22: ❻ Troubleshooti Ng
❻ Troubleshooti ng • If a problem occurs, before you contact your retailer, please carry out these few simple checks using the following tables. • If the problem conti nues, contact your retailer. • : Acti ons to be performed by a qualifi ed technician only. 6.1 I Appliance behaviour Part of the pool is not •... -
Page 23: I Error Codes
6.2 I Error codes • The error codes are displayed both on the control box and in the iAquaLink™ app. • Follow the troubleshooti ng soluti ons suggested below; they can also be accessed in the iAquaLink™ app: press when an error code appears. Display in the iAquaLink™... -
Page 24: I Troubleshooti Ng The Connecti On To The Iaqualink™ App
6.3 I Troubleshooti ng the connecti on to the iAquaLink™ app • Before you connect to a new Wi-Fi network, reset the parameters of your current Wi-Fi network or simply change the Wi-Fi password. You will have to re-establish the connecti on between the control box and the new Wi-Fi network, see “4.2 I First-ti me cleaner confi... - Page 25 Control box status Possible causes Soluti ons • Connecti on problem Contact your Internet service provider. • Only one LED is on: with the Local Wi-Fi • Disconnect the home Wi-Fi router for 10 seconds. Re-connect LAN or WEB. network or to the it and see whether the LEDs come back on.
- Page 26 Appliance model Numéro de série Serial number Pour plus d’informati ons, enregistrement produit et support client: For more informati on, product registrati on and customer support: www.zodiac.com ZODIAC® is a registered trademark of Zodiac Internati onal, S.A.S.U., used under license.
