Models:
51350 – 11" Long File
51351 – Versatility Kit

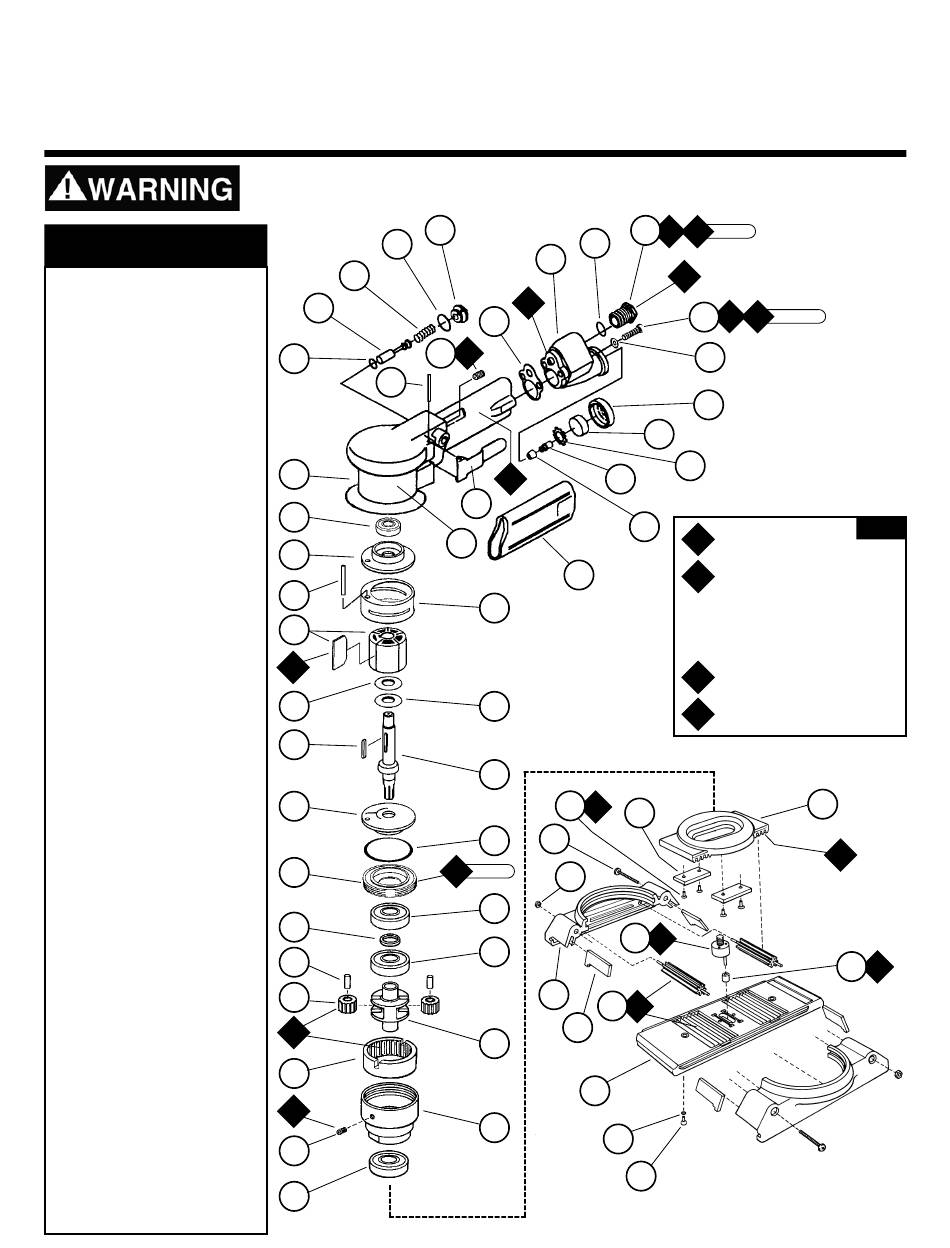

Index Key
No. Part #
Description
1 01139 Bearing (3)
2 54467 Retaining Ring
3 95593 Set Screw
4 54468 Ring Gear
5 54465 Planetary Carrier
6 06213 Gear(2)
(incl. 01033 Bearing)
7 54475 Shaft (2)
8 07146 Packing
9 56046 Lock Ring
10 50659 Lock Ring Seal
11 57437 Front Bearing Plate
12 54470 Rotor Pinion
13 56047 Rotor Key
14 95988 Shim
15 95972 Shim (2)
16 54491 Rotor/Blade Set (5/pkg.)
17 51354 Cylinder
18 95971 Line-Up Pin
19 57056 Rear Bearing Plate
20 01206 Bearing
21 54183 Motor Housing
22 01020 O-Ring
23 56029 Valve Stem
24 54192 Valve Spring
25 95523 O-Ring (2)
26 56076 Valve Plug
27 01017 Pin
28 95020 Set Screw
29 54193 Gasket
30 54186 Adapter
31 01494 Inlet Bushing
32 95720 Screw (2)
33 01791 Lock Washer (2)
34 54689 Adapter
35 56091 Nozzle
36 54199 Muffler Seat
37 54195 Muffler (3)
38 54194 Muffler Cap
39 54187 Throttle Lever
40 51358 Housing Cover
41 54188 Rubber Grip
42 57438 Counter Weight
43 57439 Rail (2)
44 96027 Screw (4)
45 95642 Screw (2)
46 95641 Nut (2)
47 57424 Gear Box (2)
48 57429 Felt Seal (4)
49 57431 Transfer Pinion (2)
50 57430 Cam Assembly
51 57445 Needle Bearing
52 57433 Slide Board
53 01211 Lock Washer (2)
54 95885 Screw (2)

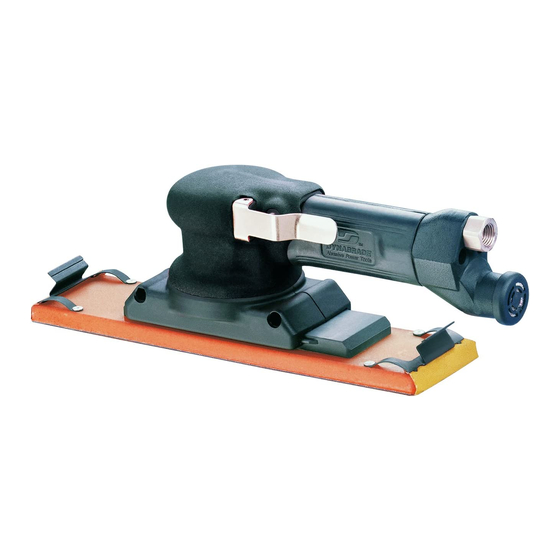

Dynaline File Board Sander
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
25
24
23
22
27
21
20
19
18
16
O
1
15
13
11
9
8
7
6
G
1
4
A
10
3
1
Two-Handed Air-Powered, 2,400 Strokes Per Minute.
26
25
30
A
14
29
A
28
10
A
6
39
40
41
17
14
12
44
A
2
45
10
T
28 N•m
46
1
1
47
49
48
5
52
2
53
Parts Page Reorder No. PD00•85
Effective December, 2000
A
31
T
23 N•m
2
O
1
A
32
T
2.82 N•m
8
33
38
37
36
35
34
Oil: O
= Air Lube
O
1
A
Adhesive: A
2
A
6
A
8
A
10
A
14
Torque: N•m x 8.85 = In. - lbs.
T
Grease: G
= Lubriplate 630AA
G
1
43
A
50
2
G
1
54
KEY
= Loctite #271
= Loctite #380
= Loctite #567
= Loctite #243
= Loctite #518
42
G
1
G
51
1
