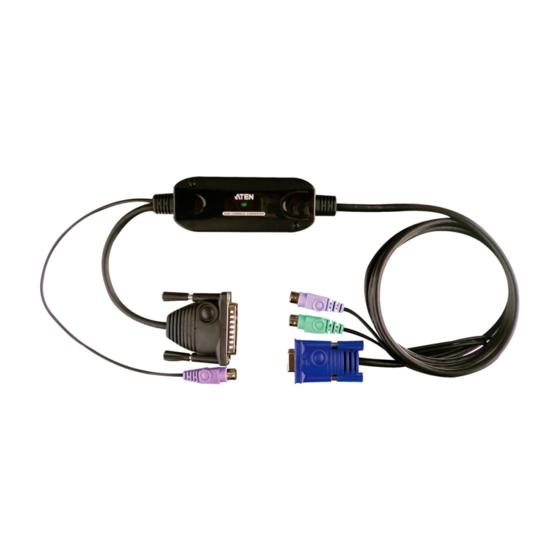

Sun Console Converter
CV-130A / CV-130B User Manual
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-130A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATEN CV-130A

Summary of Contents for ATEN CV-130A

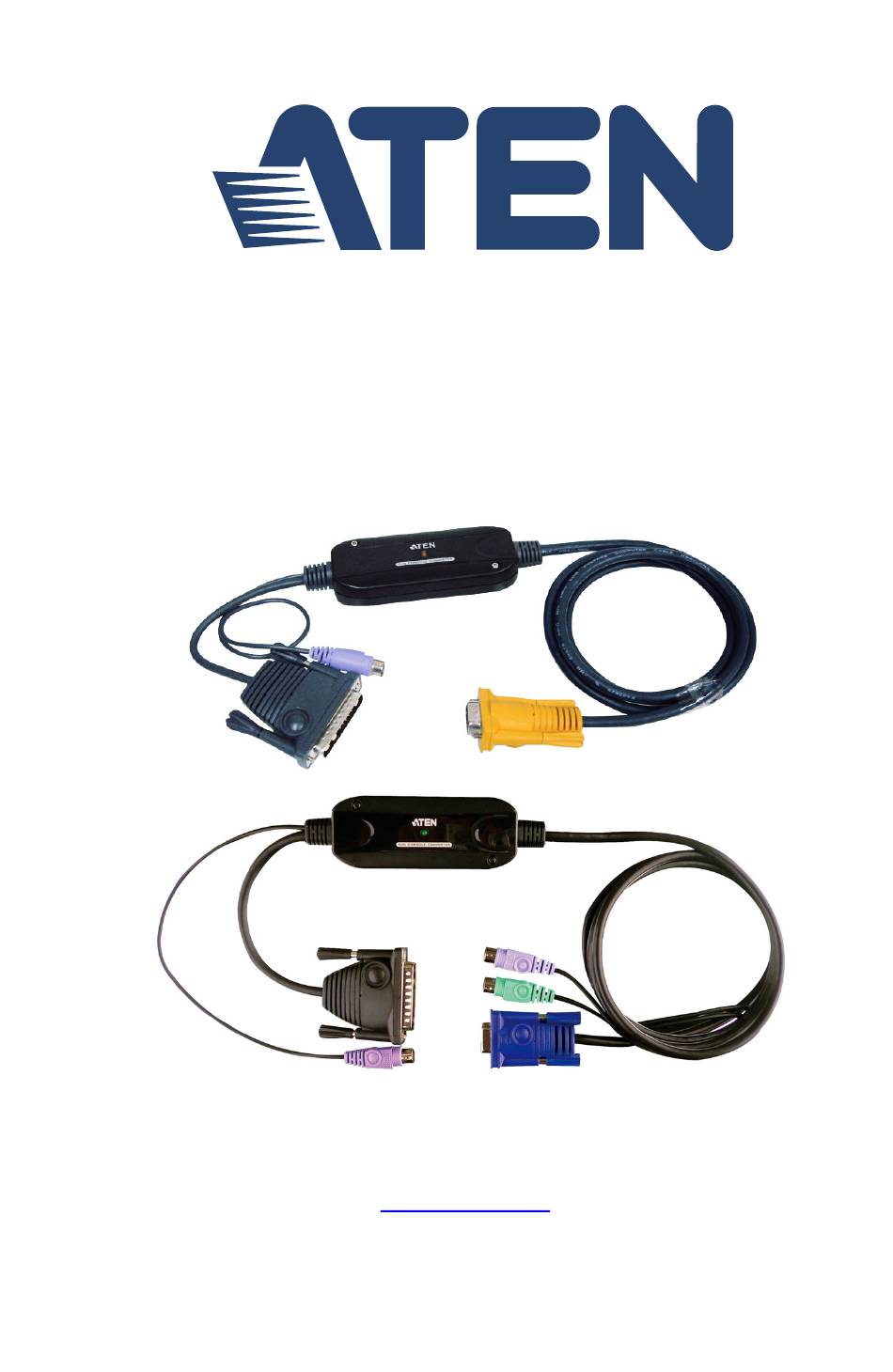

  • Page 1 Sun Console Converter CV-130A / CV-130B User Manual www.aten.com...

  • Page 2: Emc Information

    CV-130A / CV-130B User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: User Information

    CV-130A / CV-130B User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America...

  • Page 4: Package Contents

    CV-130A / CV-130B User Manual Package Contents  1 CV-130A / CV-130B Sun Console Converter Cable  1 User Instructions Note: 1. Check to make sure that all the components are present and that nothing got damaged in shipping. If you encounter a problem, contact your dealer.

  • Page 5: Table Of Contents

    CV-130A / CV-130B User Manual Table of Contents EMC Information..........ii RoHS .

  • Page 6: About This Manual

    CV-130A / CV-130B User Manual About this Manual This user manual is provided to help you get the most from the CV-130A / CV- 130B unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below.

  • Page 7: Conventions

    Indicates critical information. Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 8 CV-130A / CV-130B User Manual This Page Intentionally Left Blank viii...

  • Page 9: Introduction

    PS/2 and VGA connectors. The CV-130A / CV-130B are identical in their functions, except that the CV- 130A is for use with the SPHD-15 switches, whereas the CV-130B is designed for PS/2-VGA switches.

  • Page 10: Features

    Translates PS/2 keyboard, video, and mouse signals to legacy Sun keyboard, video, and mouse signals  Compatible with Sun systems  Compatible with ATEN PS/2 KVM switches & PS/2 console extenders  Keyboard and mouse emulation - computers boot even when the KVM focus is elsewhere ...

  • Page 11: Installation

    1. Plus the KVM switch end of the converter cable into any available CPU port on the KVM switch.  For SPHD-15 type switches, plug in the CV-130A’s single SPHD-15 connector.  For PS/2 type switches, plug the CV-130B’s keyboard, mouse, and monitor connectors into their respective ports in the CPU section of the switch.
  • Page 12 CV-130A / CV-130B User Manual SPHD-15 Switch PS/2 Switch...

  • Page 13: Sun Keyboard Emulation

    Chapter 2. Installation Sun Keyboard Emulation The PS/2 (101/104 key) keyboard can emulate the functions of the Sun keyboard. The corresponding functions are shown in the table below. PC Keyboard Sun Keyboard [Ctrl] [F1] Stop [Ctrl] [F2] Again [Ctrl] [F3] Props [Ctrl] [F4] Undo...
  • Page 14 CV-130A / CV-130B User Manual This Page Intentionally Left Blank...

  • Page 15: Appendix

    Appendix Safety Instructions  Read all of these instructions. Save them for future reference.  This device is for indoor use only.  Follow all warnings and instructions marked on the device.  Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 16 CV-130A / CV-130B User Manual  Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be stepped on or tripped over.  If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating.

  • Page 17: Technical Support

    Troubleshooting http://www.aten-usa.com/support Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 1-949-428-1111 When you contact us, please have the following information ready beforehand:  Product model number, serial number, and date of purchase.  Your computer configuration, including operating system, revision level, expansion cards, and software.

  • Page 18: Specifications

    CV-130A / CV-130B User Manual Specifications Function CV-130A CV-130B Connectors To Switch 1 x SPHD-15 Male 2 x 6 Pin Mini DIN Male 1 x HDB-15 Female To Sun 1 x Mini-DIN-8 1 x 13W-3 1 x Power (Orange) Emulation...

  • Page 19: Limited Warranty

    ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
  • Page 20 CV-130A / CV-130B User Manual MEMO...
