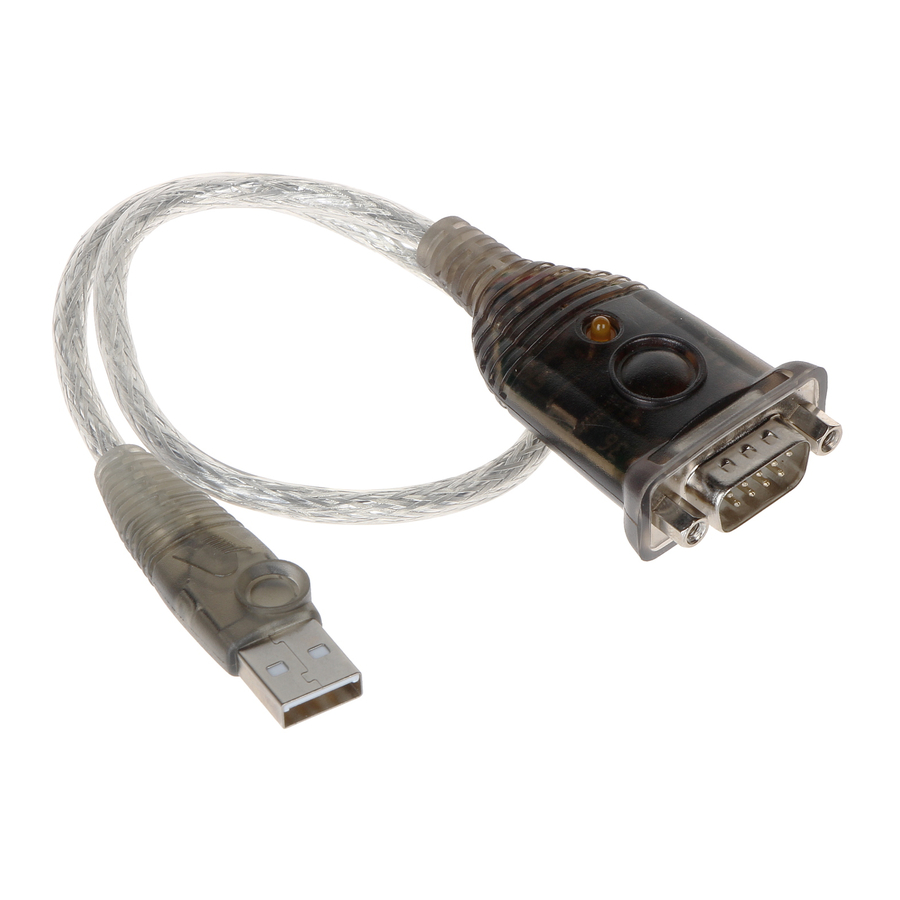

ATEN UC-232A User Manual

Specifications

Function Specification
Connectors USB Type A Plug
Serial DB-9 Male
Data Transfer Rate Over 230 Kbps
Cable Length 35 cm
LEDs Data Transfer / Handshaking (Orange)
Power Consumption 450 mW
Power Mode
Bus Powered
USB Specification V1.1 Compliant
o
Operating Temperature 5 ~ 40 C
o
Storage Temperature -20 ~ 60 C
Humidity 0 ~ 80% RH
Housing Plastic
Weight 60 g
Dimensions (L x W x H) 65.9 x 34 x 16 mm
DB-9 Pin Assignments
Pin Assignment
1 CD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
