LAUNCH
Vehicle
Click [Vehicle] in the passport function menu.
The screen will display the data stream value
related to vehicle as shown in Figure 26.
Adjust
Click [Adjust] in the passport function menu.
The screen will display the data stream value
related to adjust as shown in Figure 27.

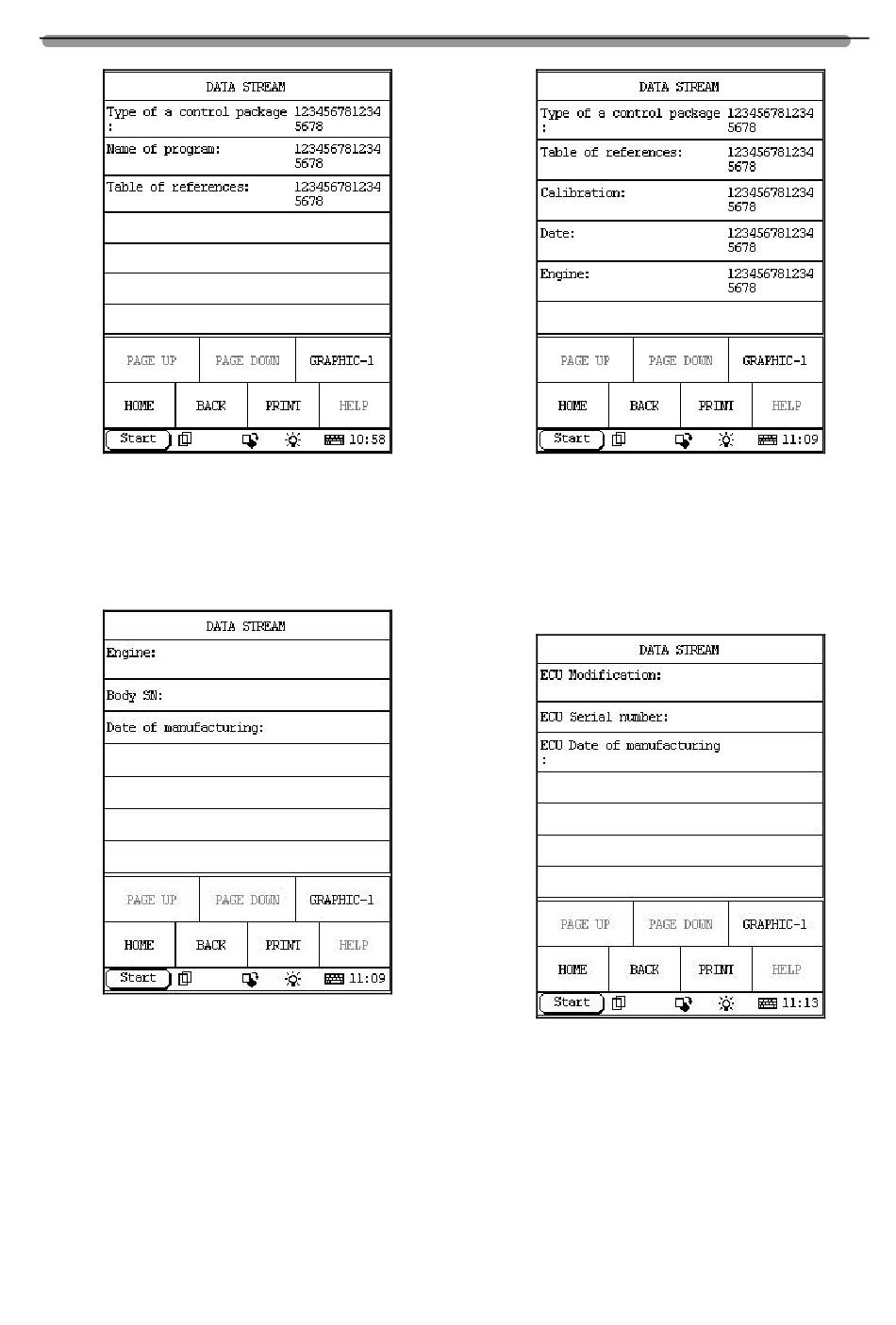

Figure 25
Figure 26
X-431 Russia GAZ Diagnosis
Control Block
Click [Control block] in the passport function
menu. The screen will display the data stream
value related to control block as shown in
Figure 28.
Actuator Test
Click [ACTUATOR TEST] in the function menu.
X-431 will display actuator menu as shown in
Figure 30.
8
Figure 27
Figure 29
