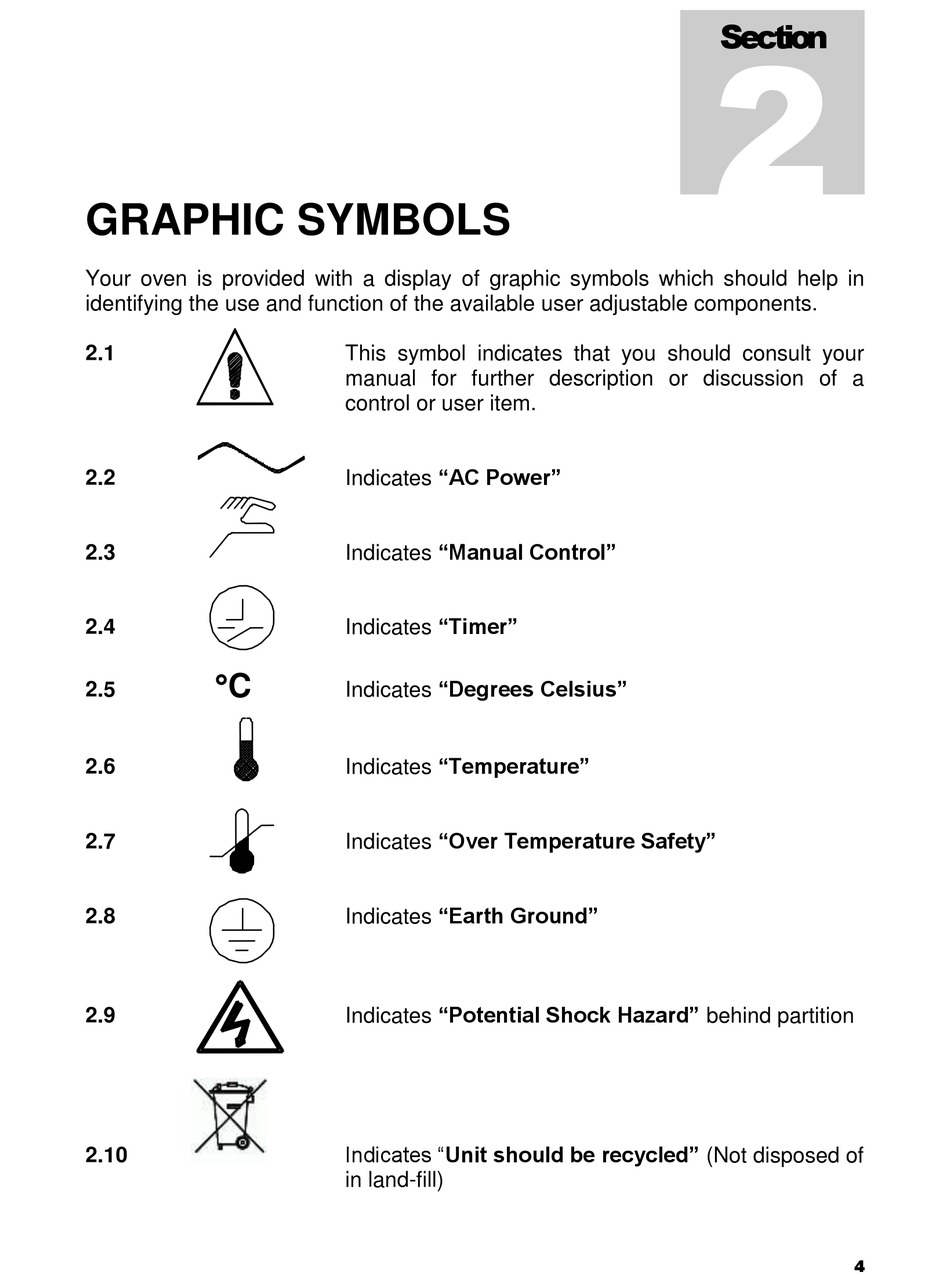

GRAPHIC SYMBOLS

Your oven is provided with a display of graphic symbols which should help in
identifying the use and function of the available user adjustable components.
2.1
2.2
2.3
2.4
C
2.5
2.6
2.7
2.8
2.9
2.10
This symbol indicates that you should consult your
manual for further description or discussion of a
control or user item.
Indicates "AC Power"
Indicates "Manual Control"
Indicates "Timer"
Indicates "Degrees Celsius"
Indicates "Temperature"
Indicates "Over Temperature Safety"
Indicates "Earth Ground"
Indicates "Potential Shock Hazard" behind partition
Indicates "Unit should be recycled" (Not disposed of
in land-fill)
