  • Page 1 OWNER’S MANUAL DISPLAY NODE SYSTEM COMPONENTS TEAMBMPRO.COM...
  • Page 3 To learn more about the BMPRO range of products, please visit our website teambmpro.com TEAM BMPRO...

  • Page 4: Safety Precautions

    Clean the housing of this product lightly with a dry or moist cotton cloth. Do not use alcohol, thinners, benzene or any other chemical cleaner. The JAYCOMMAND is a high precision electronic product. It contains no user- serviceable parts inside. Do not try to dismantle, modify or repair it yourself.
  • Page 5 WARNING Only install the SmartSense as described below. No field assembly is required. The sync process to the JAYCOMMAND APP on your smart JAYCOMMAND DISPLAY, as described below, should occur in an area clearly out of any explosive atmosphere Once SmartSense is synced to JAYCOMMAND, the device is “in service” and operating normally.

  • Page 6: Information For The User

    This device must accept any interference received, including what may have cause undesired operation. WARNING Any changes or modification are not approved by BMPRO and will void compliance of the product and the user’s authority to operate this equipment. INFORMATIONS POUR L’UTILISATEUR Le présent appareil est conforme aux CNR d’Innovation, Sciences et...
  • Page 7 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency and energy.

  • Page 8: Table Of Contents

    REV 1.0 product that will provide years of service. DISCLAIMER: BMPRO accepts no liability for any loss or damage which may occur from the improper or unsafe use of its products. Warranty is only valid if the unit has not been Copyright ©...
  • Page 9 SMARTTEMP TEMPERATURE SENSOR Pairing SmartTemp Sensors Warning Thresholds SmartTemp Settings Unpair SmartTemp Sensor ENERGY CENTER Battery Monitoring Generator General Settings Unit Conversion About Jaycommand Diagnostics How To Check Battery Status FAQS AND TROUBLESHOOTING APPENDICES Specifications LIMITED WARRANTY TERMS AND CONDITIONS...

  • Page 10: About The Jaycommand

    ABOUT THE JAYCOMMAND The JAYCOMMAND brings smart home technology to your RV, taking control and management of your RV features to new horizons! MOTOR AWNINGS/ HVAC/ LIGHTS GENERATOR TANK SENSORS CONTROLLERS SLIDES THERMOSTATS DISPLAY NODE SWITCH CAN BUS & POWER...

  • Page 11: What's Included

    9 BLE switches (optional)   NODE The heart of the JAYCOMMAND system, the NODE, is an RV management system that powers and monitors your RV features and accessories. The NODE communicates via RV-C to the DISPLAY and Bluetooth Low Energy with your smartphone, to receive the commands to control power to all your RV features and accessories.

  • Page 12: Display

    Water tanks, Temperature, Tire Pressure Sensor, battery and liquid propane. CONTROL Lighting, Slide-outs, Awnings, Jacks, Heating and Cooling Systems, Generators and leveling. SMARTCONNECT SENSORS A range of Bluetooth sensors which can be added to your JAYCOMMAND system to increase the monitoring of various inputs”...

  • Page 13: Description Of Parts

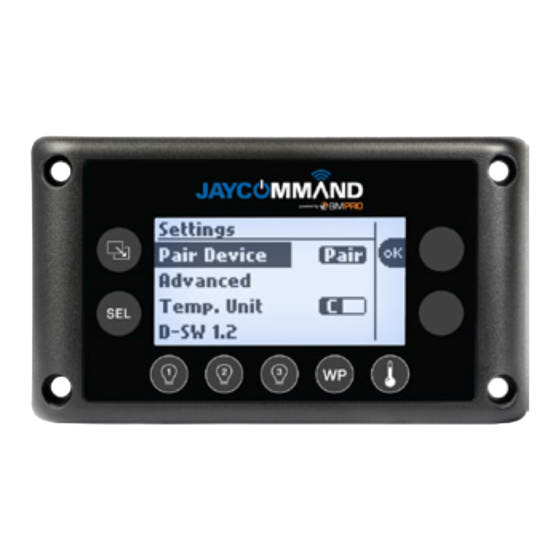

    DESCRIPTION OF PARTS FIGURE 3: The DISPLAY Page Navigation Button Move between function screens, eg. From Tanks to Water screen Menu Navigation Button This button allows navigation between items within a page, e.g. In the Water page move from Pump to Elec Heater 3-4.
  • Page 14 NODE. FIGURE 4: Pairing to the NODE When your smartphone is paired with the NODE, the Bluetooth icon is displayed on the JAYCOMMAND APP home screen. CONGRATULATIONS, YOU’RE CONNECTED! For additional support please refer to FAQs & Troubleshooting.

  • Page 15: The Display

    THE DISPLAY Use the Page Navigation Button to move from page to page Use the Menu Navigation Button to move between menu items within a page TANKS The Tanks display shows the levels of fresh, gray and black water tanks. Levels are displayed as: FULL 2/3 FULL 1/3 FULL...

  • Page 16: Energy

    ENERGY ON: Press and hold the ON action button, until the generator turns on. OFF: Press and hold the OFF action button, until the generator turns off. NOTE: A generator warning will appear if the FIGURE 9: generator fault LED is actively blinking. Energy Screen SETTINGS Pair Device: Press OK to pair to a device...

  • Page 17: The App

    Download the APP to your smartphone or tablet and enjoy the freedom to monitor and control the onboard features of your RV remotely. The JAYCOMMAND APP allows the user to access more features of their connected RV that may not be available on the DISPLAY.

  • Page 18: Tanks Screen

    The Leveling and Motors Screens control Slide-outs, Awnings, Landing Legs and Jacks. It contains controls for certain Leveling Systems installed in the RV. NOTE: Not all leveling systems are compatible with the JAYCOMMAND System. WARNING Before operating any motors, ensure the area is free from obstacles and other hazards.

  • Page 19: Leveling Control

    LEVELING CONTROL If equipped, the leveler can be controlled from the smartphone devices. Individual jack controls also available on some models. FIGURE 15: Motors Lock Screen FIGURE 16: Leveling Screen FIGURE 17: Jack Control Note: Depending on the type of leveling system installed, the tongue jack may not be available.

  • Page 20: Motor Control

    MOTOR CONTROL Only one motor may be operated at a time. Once a motor is in operation, motor control will be disabled in any other device running the APP. This does not include the leveling system. To operate motors on your own device, swipe to unlock the Motors screen.

  • Page 21: Fan

    The fan can be operated for air circulation in each zone. FIGURE 22: Fan Mode HEAT If available, the RV may be heated from the furnace, which is controlled from the Main Climate Zone. To set temperature: Turn climate on Select your mode of operation Adjust temperature to the desired setting (if available in selected mode)

  • Page 22: Smartpressure Tire Monitoring System (Tpms)

    TIRE MONITORING SYSTEM (TPMS) The JAYCOMMAND system can be equipped with a SmartPressure Tire Monitoring System. If available on your RV, the Tire Pressure Monitoring System allows the pairing and monitoring of your tire sensors, with the flexibility of adjusting your temperature and pressure warning limits.

  • Page 23: Unpair Smartpressure Sensors

    HOW TO INSTALL SMARTPRESSURE SENSORS Screw on anti-theft nut Tighten sensor Screw nut anticlockwise Tighten anti-theft nut to fix sensor with wrench BATTERY REPLACEMENT Refer to on page 31 to check the battery status of the sensor and for instructions on battery replacement. UNPAIR SMARTPRESSURE SENSORS Press the “Unpair”...

  • Page 24: Smartsense Propane Sensor

    PROPANE SENSOR The JAYCOMMAND system is able to integrate with BLE Propane sensors called SmartSense. PAIRING SMARTSENSE PROPANE Go to the Energy Center screen where the propane tank levels are displayed. Pressing the “Add” button on the Propane tile Choose between 3 bottle sizes.

  • Page 25: Unpair Smartsense Propane

    If pairing is unsuccessful, an error message will appear. Press the “Retry” button to try again. If the SmartSense sensor fails to pair: •  Bring the sensor closer to the NODE •  Check the sensor battery status. BATTERY REPLACEMENT Refer to on page 31 to check the battery status of the sensor and FIGURE 29: Pairing...

  • Page 26: Smarttemp Temperature Sensor

    TEMPERATURE SENSOR The JAYCOMMAND system is able to integrate with BLE temperature sensors called SmartTemp. The user will be able to pair a maximum of four temperature sensors. PAIRING SMARTTEMP SENSORS Go to the Status Screen and press the “Add” button located in the Temperature tile.

  • Page 27: Warning Thresholds

    WARNING THRESHOLDS To adjust your warning thresholds for both temperature and pressure sensors, press on the “Settings” button in the top right corner of the Status screen. The user will be able to set the minimum and maximum limits for pressure and temperature.

  • Page 28: Energy Center

    ENERGY CENTER BATTERY MONITORING Battery Monitoring allows you to monitor coach and/or chassis voltages. If no coach and chassis batteries are connected, the APP will monitor the system voltage of the NODE. Furthermore, if the voltage drops below 12V, a warning will appear on the screen.

  • Page 29: General Settings

    General Settings Screen depending on the level of controller installed, can be used to set zero-point calibration. •  About JAYCOMMAND : All about the JAYCOMMAND system, NODE Firmware version, JAYCOMMAND APP version, etc. •  Set your unit preferences for temperature and pressure • ...

  • Page 30: About Jaycommand

    ABOUT JAYCOMMAND This page provides information about the JAYCOMMAND System. FIGURE 36: Device Information Screen DIAGNOSTICS To clear these faults, remove suspected short circuit and toggle the suspected output to clear fault indicator For lights, tank heater, water heater, water pump, electric and gas heaters, if a short occurs on these outputs, a red fault indicator will appear.

  • Page 31: How To Check Battery Status

    BATTERY REPLACEMENT To check if any SmartConnect sensor batteries need to be changed, please select: Settings Battery Level SmartConnect sensor (SmartPressure, SmartSense, SmartTemp) Under selected sensor, the battery status will either display "Battery OK" or "Battery Low." If “Battery Low” appears, replace the battery using the following instructions. FIGURE 38: Replacing SmartPressure Battery Using a small screwdriver, Lift the board with...

  • Page 32: Faqs And Troubleshooting

    3. How do I update the APP on my smartphone? Most smartphones allow automatic updates. To confirm your JAYCOMMAND APP is up to date try the following: Verify mobile network or WiFi connection on your smartphone Launch your APP store app. (Google Play Store or Apple APP Store)

  • Page 33: Appendices

    APPENDICES SPECIFICATIONS NODE SPECIFICATIONS Input Voltage Range 8V to 15V DC Ambient Temperature -4°F to 140°F (-20°C to 60°C) IP Rating IP20 FCC 47 CR15, CAN ICES-3 (B) / NMB-3 (B), IEC Approvals 61000-4-2 Level III, IEC60068-2-27 Table A.1, IEC 60068-2-64 Spectrum A.3 Category 1 DISPLAY SPECIFICATIONS Input Voltage Range...

  • Page 34: Limited Warranty Terms And Conditions

    •  BMPRO will not be liable for any costs, charges or expenses incurred in the process of returning a product to initiate a warranty claim.
  • Page 36 BMPRO TEAM +61 3 9763 0962 sales@teambmpro.com BMPRO 19 Henderson Rd, Knoxfield VIC 3180 Australia .COM teambmpro.com...
