OWNER'S MANUAL
TEAMBMPRO.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONNECT+ and is the answer not in the manual?

Questions and answers

Russ Arnold
June 18, 2025

how to return to the home screen. currently stuck on mobile app setup

0

Related Manuals for BMPRO CONNECT+

Summary of Contents for BMPRO CONNECT+

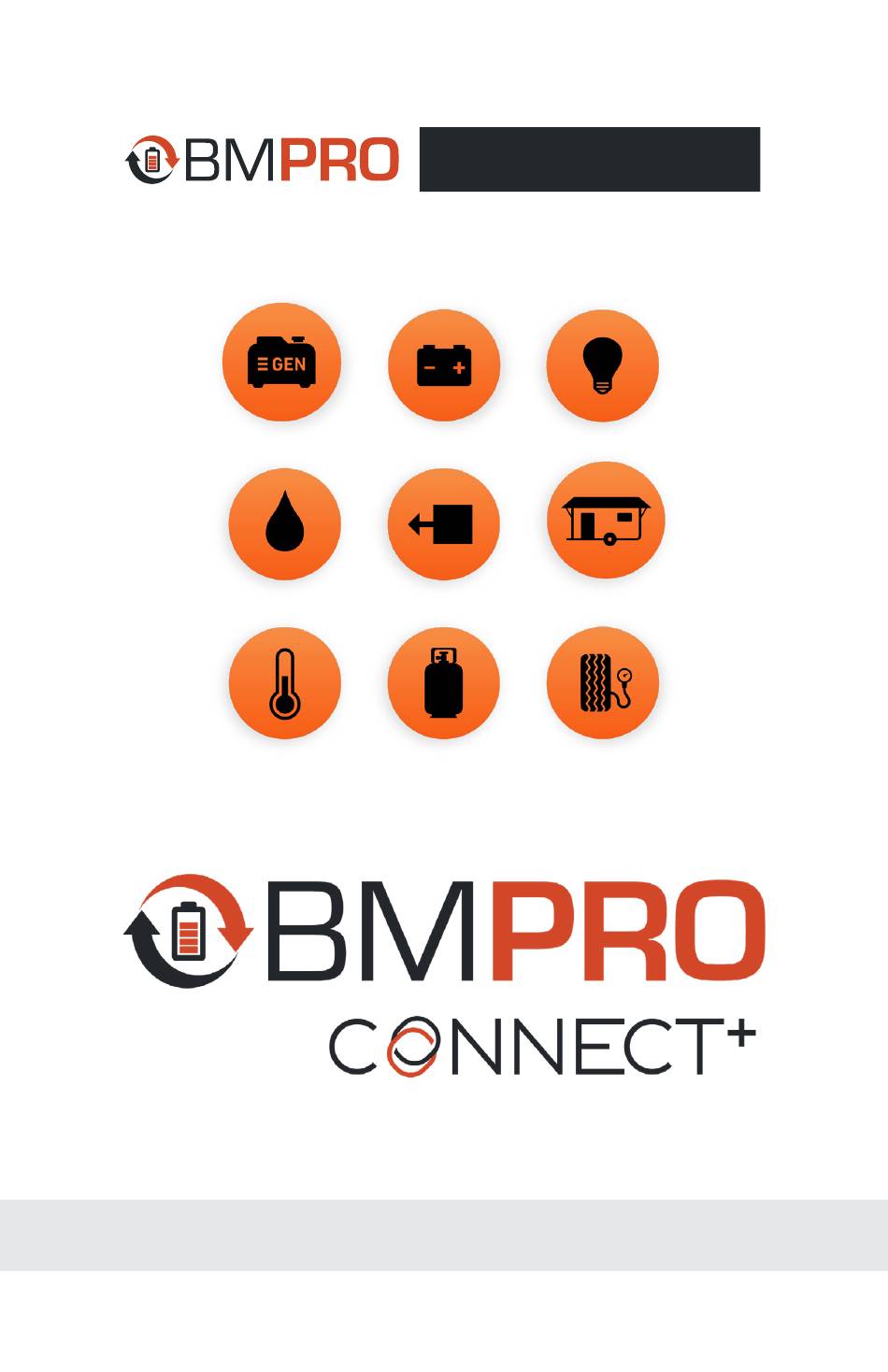

  • Page 1 OWNER’S MANUAL TEAMBMPRO.COM...

  • Page 2: Safety Precautions

    Copyright © 2025 REV 1.0 DISCLAIMER: BMPRO accepts no liability for any loss or damage which may occur from First published 2025-03-26 the improper or unsafe use of its products. Warranty is only valid if the unit has not been...
  • Page 3 WARNING Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate. Even used batteries may cause severe injury or death. Call a local poison control center for treatment information. Non-rechargeable batteries are not to be recharged.

  • Page 4: Information For The User

    This device must accept any interference received, including what may have cause undesired operation. WARNING Any changes or modification not expressly approved by BMPRO could void compliance of the product and the user’s authority to operate this equipment. Le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts...
  • Page 5 For body worn operation, this device has been tested and meets the IC RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 0 mm from the body. Noncompliance with the above restrictions may result in violation of RF exposure guidelines.

  • Page 6: Table Of Contents

    DEPENDENT) ......17 BMPRO CLOUD ..... . . 18 CONNECTING TO THE BMPRO CLOUD .
  • Page 7 ENERGY CENTER ..... . . 29 BATTERY AND FUEL ..... . 29 GENERATOR (MODEL DEPENDENT) .

  • Page 8: About Bmpro Connect

    ABOUT BMPRO CONNECT+ BMPRO Connect+ brings smart home technology to your RV, taking control and management of your RV to new horizons!

  • Page 9: Node

    NODE The heart of the BMPRO Connect+ system, the Node, is an RV management system that powers and monitors your RV features and accessories. The Node communicates via RV-C to the Controller, Display or RV Control Panel (depending on your model) and Bluetooth Low Energy with your smartphone, to receive the commands to control power to all your RV features and accessories.

  • Page 10: Description Of Parts

    DESCRIPTION OF PARTS DISPLAY (MODEL DEPENDENT) Page Navigation Button Move between function screens, eg. From Tanks to Water screen. Menu Navigation Button Navigate between items within a page, e.g. in the Water page move from Pump to Elec Heater. 3-4. Action Buttons The function for each of the action buttons changes depending on the selected menu item.

  • Page 11: Display Navigation (Model Dependent)

    DISPLAY NAVIGATION (MODEL DEPENDENT) Use the Page Navigation Button to move from page to page. Use the Menu Navigation Button to move between menu items within a page. Tanks The Tanks display shows the levels of fresh, gray and black water tanks. Levels are displayed as: FULL 2/3 FULL...
  • Page 12 If Furnace Mode is selected, the AC-Fan option displays. AC-Fan: Settings: OFF / LOW Energy ON: Press and hold the ON action button, until the generator turns on. OFF: Press and hold the OFF action button, until the generator turns off. NOTE: A generator warning will appear if the generator fault LED is actively blinking.

  • Page 13: Controller (Model Dependent)

    CONTROLLER (MODEL DEPENDENT) 1. Page Navigation Sidebar Used to navigate between pages. 2. CAN Bus Connection Indicator Indicates when the Controller is connected to the CAN Bus. 3. Wireless Connection Indicators Icons will appear on the screen if the Controller is connected to Bluetooth, the cloud or Wi-Fi.

  • Page 14: Rv Control Panel (Model Dependent)

    RV CONTROL PANEL (MODEL DEPENDENT) 1. Feature Control Buttons Used to control lights, water pump, awnings and slide-outs. The buttons available are floorplan dependent and vary across models. Each button has a soft backlight. When activated, they become fully lit. The RV Control Panel will go to sleep after 5 minutes of inactivity.
  • Page 15 2. Battery Voltage Level Indicator 4 LEDs show the battery voltage level. 9 All 4 LEDs on: 12.5-12.7V+   9 3 LEDs on: 12.3-12.49V   9 2 LEDs on: 12-12.29V   9 1 LED on: 11.4-11.99V   9 1 LED flashing: below 11.39V  ...

  • Page 16: Pairing To The Node

    PAIRING TO THE NODE Pairing your smartphone to the Node is simple. The BMPRO Connect+ app will guide you through the process. The Node can be paired to a total of four devices. PAIRING TO THE NODE WITH A DISPLAY (MODEL DEPENDENT) Launch the App on your phone and choose the device installed in your RV.

  • Page 17: Pairing To The Node With A Controller (Model Dependent)

    PAIRING TO THE NODE WITH AN RV CONTROL PANEL (MODEL DEPENDENT) To pair to the Node with the RV Control Panel: Launch the BMPRO Connect+ app on your phone and choose the device installed in your RV. Press the Bluetooth Pair button on the RV Control Panel. When in pairing mode, this button will begin flashing.

  • Page 18: Bmpro Cloud

    BMPRO CLOUD (MODEL DEPENDENT) You can only connect to the BMPRO Cloud if your RV is equipped with a Controller. Systems with a Controller have cloud control, which allows you to remotely connect, monitor and control your RV from your smart device.
  • Page 19 An email will be sent to your account to verify your email address. Click on the link provided in the email to complete verification. Now connect your smart device using your BMPRO account details to get started. Account Not Verified...

  • Page 20: Cloud Control

    Press Delete Account. In the pop-up, enter your password. Press Delete Account. Your BMPRO cloud account will be deleted. If you want to control your RV from the cloud again, you will need to create a new BMPRO cloud account.

  • Page 21: Winegard

    WINEGARD You can only set up Winegard if your RV is equipped with a Controller. To set up Winegard: In the page navigation sidebar, at the bottom, select the settings icon. Press Winegard Settings. Logging into the Winegard network Press the search button to search for the available networks. Select the desired network and enter the password or enter the network name and password.
  • Page 22 Winegard Status The current status of the Winegard is displayed on the Winegard tile in the General Settings area. 9 SETUP: This is seen when no Winegard network has been connected   previously. Press the tile to connect to a Winegard network. 9 UNAVAILABLE: This means that the Winegard network is not available  ...

  • Page 23: The App

    THE APP Download the BMPRO Connect+ app to your smartphone or tablet and enjoy the freedom to monitor and control the onboard features of your RV remotely. If your system has an RV Control Panel, the App allows you to access more features of your connected RV that otherwise may not be available.

  • Page 24: Home Screen

    HOME SCREEN The home screen provides a general overview of the key features of your RV. It also provides a quick way to control specific RV lights and the RV’s climate system, direct from the home screen. TANKS SCREEN You can control the water pump, electric heaters, gas heaters and tank heaters from the Tanks screen, if applicable.

  • Page 25: Motors Screen

    MOTORS SCREEN The Motors screen allows you to control the Slide-outs, Awnings, Landing Legs and Jacks. It contains controls for certain Leveling Systems installed in the RV. WARNING Before operating any motors, ensure the area is free from obstacles and other hazards.
  • Page 26 Motor Control Only one motor may be operated at a time. Once a motor is in operation, motor control will be disabled in any other device running the app. This does not include the leveling system. To operate motors on your own device, swipe to unlock the Motors screen. Motor Lockout Feature The motor lockout feature is only available if your RV is equipped with a Controller.

  • Page 27: Climate Screen

    CLIMATE SCREEN The Climate screen allows you to control the temperature inside your RV. The zones that appear depend on the vehicle configuration. Additional ACs can be configured by scrolling down from the Main AC. Choose from Cool, Cool Auto or Heat to adjust the temperature between 33°F –...

  • Page 28: Lights Screen

    Heat If available, the RV may be heated from the furnace, heat pump or a combination of both. The furnace can only be controlled from the Main Climate Zone. To set the temperature: Turn climate on. Select your mode of operation. Adjust the temperature to your desired setting (if available in the selected mode).

  • Page 29: Energy Center

    ENERGY CENTER The Energy Center screen allows you to monitor energy usage within your BMPRO Connect+ system. BATTERY AND FUEL The Battery and Fuel section allows you to monitor RV voltages, chassis voltages and fuel levels. If no RV and chassis batteries are connected, the app will monitor the system voltage of the Node.

  • Page 30: Generator Lockout (Model Dependent)

    Generator Fault If the Generator Status section indicates a fault: Press the Stop Generator button. Fix the fault with the generator. Press the Start Generator button. If the fault has been fixed, when you next turn the generator on from the app, the Generator Status section will display “No fault”.

  • Page 31: Solar Controller

    SOLAR CONTROLLER When solar is connected to a compatible RV-C controller, the Energy Center screen will display the Solar Controller section, allowing you to view the status of any connected solar panels. Solar Controller This section displays the input voltage and current from the solar panel and the output voltage and current of the battery.

  • Page 32: Energy Management

    By shedding loads, you can ensure that the circuit breakers of your AC Mains supply are not tripped. If an appliance is shed, it will be temporarily disabled in the BMPRO Connect+ app. A pop-up message will appear if you try to interact with a shed appliance while load shedding is active.

  • Page 33: General Settings

    GENERAL SETTINGS General Settings may be accessed by pressing the Settings icon from the bottom left corner of the home screen.
  • Page 34 9 Set Load Shedding Settings.   9 Access a digital version of the User Manual.   9 View information About SYSTEM: all about the BMPRO Connect+ system,   Node version, app version, etc. 9 View the BMPRO Privacy Policy.  ...

  • Page 35: Sensor Settings

    SENSOR SETTINGS The Sensors Settings screen allows you to configure push notification warning limits for any connected tire and temperature SmartConnect sensors, and allows you to toggle the sensor displays on or off. For more information about SmartConnect sensors, refer to the SmartConnect user manual.

  • Page 36: Energy Center Settings

    ENERGY CENTER SETTINGS Energy Center Settings can be used to adjust Automatic Generator Start usage. Use AGS to Support This setting is used to determine if AGS will support battery levels, climate or both. 9 Battery Levels: the generator will turn on and run until the battery is  ...
  • Page 37 Run Time Limits Used to set the minimum time the generator will continue to run for after the target battery voltage and/or temperature is reached. The maximum time is the total run time that the generator will operate to reach the target battery voltage and/or temperature. If targets are not reached and the generator run time exceeds the maximum run time limit set in the Energy Settings, the generator will automatically turn off.

  • Page 38: Motor Settings

    MOTOR SETTINGS If your model supports zero point leveling, you can use the Motor Settings screen to perform zero point calibration. To access Motor Settings: In the page navigation sidebar, at the bottom, select the settings icon. Press Motor Settings. Depending on the type of leveling system installed, the tongue jack may not be available.

  • Page 39: Solar Controller Settings

    SOLAR CONTROLLER SETTINGS The Solar Controller Settings screen is used to configure the Solar Controller to your liking. To access Solar Controller Settings: In the page navigation sidebar, at the bottom, select the settings icon. Press Solar Controller Settings.

  • Page 40: Unit Preferences

    Display Solar Controller Allows you to toggle Solar Controller information to be hidden if you do not want it to be displayed in the app. If Solar Controller information is hidden, you can toggle it to be displayed. Operating Status Displays the current operating status of the Solar Controller.

  • Page 41: Diagnostics

    DIAGNOSTICS The Diagnostics screen displays any detected faults in the system, and allows you to force reset the Node. To clear circuit faults, remove the suspected short and toggle the suspected output to clear the fault indicator. A red fault indicator will appear if a fault is detected on the lights, tank heaters, water heaters.
  • Page 42 Solar Controller Faults The Diagnostics screen will display any faults detected on the Solar Controller. The following types of faults will be displayed in the Diagnostics screen if detected: 9 Battery Over Voltage   9 Battery Under Voltage   9 Battery Over Temperature  ...
  • Page 43 Climate Faults The Diagnostics screen will display any faults detected in the climate system. The fault message will disappear from the Diagnostics screen once the fault has been externally cleared. Resetting the Node If the Node is not behaving correctly, you can force reset it. To reset the Node: In the page navigation sidebar, at the bottom, select the settings icon.

  • Page 44: Updating Software

    UPDATING SOFTWARE The Node can be updated over-the-air, meaning you get the latest feature updates without the need to bring your RV to your local RV dealer. Notifications to update the Node software may be received after release if your system is connected to Wi-Fi. Critical updates will start automatically, and non-critical updates can be postponed.

  • Page 45: Switch

    SWITCH The Switch communicates via Bluetooth to the Node, giving you additional control of RV features. Any Switch you install in your RV has been paired to the Node at the factory and is ready for immediate use. CHECKING THE BATTERY IN YOUR SWITCH The Switch is powered by a standard CR2032 3V Lithium Cell coin battery.

  • Page 46: Faqs And Troubleshooting

    Pair the RV Control Panel and your device to the Node again. Refer to Pairing to the Node with an RV Control Panel. How do I update the BMPRO Connect+ app on my smartphone? Most smartphones allow automatic updates. To confirm your app is up-to-date, try the following: Verify the mobile network or WiFi connection on your smartphone.

  • Page 47: Controller

    Press the OK action button to put the node into Switch pairing mode. Press any two buttons on the Switch at the same time. The Switch will now be paired to the BMPRO Connect+ system. If you have a Controller: Press the Settings button.

  • Page 48: Appendices

    APPENDICES SPECIFICATIONS NODE Input Voltage 8V-15V DC Range Ambient -4°F to 140°F (-20°C to 60°C) Temperature IP Rating IP20 Lithium Battery CR2032 Type Battery Voltage FCC 47 CR15.109, CAN ICES-3 (B) / NMB-3 (B), IEC 61000-4-2 Approvals Level III, IEC60068-2-27 Table A.1, IEC 60068-2-64 Spectrum A.3 Category 1 CONTROLLER Input Voltage...
  • Page 49 AC MONITOR AC Input 90Vac - 135Vac DC Input 8VDC - 16VDC Quiescent <30mA Current Operating Main 50-60Hz Frequency Maximum Current Measurement Temperature -4°F to 131°F (-20 °C to 55°C) (Operating) Temperature -22°F to 167°F (-30 °C to 75°C) (Non-operating) Humidity 10-85%, RH non-condensing (Operating)

  • Page 50: Limited Warranty Terms And Conditions

    •  BMPRO may seek reimbursement of any costs incurred when a product is found to be in proper working order or damaged as a result of any of the warranty exclusions listed above.
  • Page 52 BMPRO TEAM service@teambmpro.com BMPRO Unit 1, 821 E Windsor Ave, Elkhart IN 46514 USA .COM teambmpro.com...
