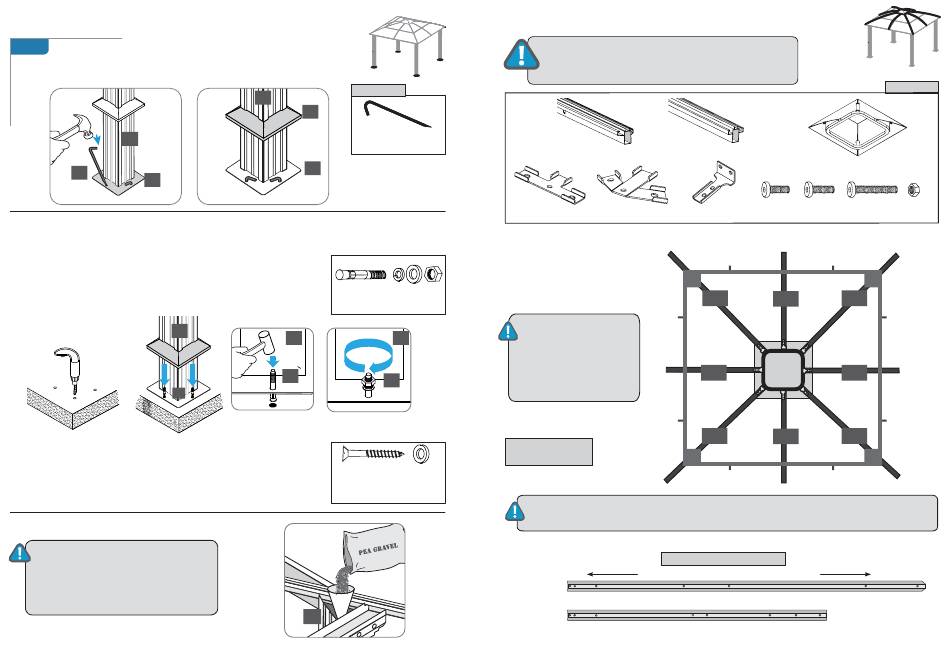

STEP 4 Securing the Gazebo to the Ground
Fasten the gazebo frame to the ground, using four spikes (28) for each
4.A
support plate.
Lower support frames (2) to cover support plates (3).
1
28
3
Optional
Securing the Gazebo to a Concrete Floor or Wood Deck
Concrete Floor:
1. Using a concrete drill, drill holes into the concrete floor,
corresponding to the holes in support plates (3).
2. Insert concrete bolts (29) into the holes and hammer into place, using a mallet.
3. Fasten concrete bolts with washers and nuts.
1
29
Wood Deck:
1. Using an electric wood drill, drill holes into the wood floor,
corresponding to the holes in support plates (2).
2. Insert wood screws with washers (not supplied) into the holes and fasten,
using an electric screw driver.
NOTE: After securing the gazebo to the
ground, we highly recommend filling the
corner profiles (1) with 2 bags (20LBs
each) of Pea Gravel each for extra stability,
as shown.
www.stcny.com
Components
1
2
Ground spike (28)
x 16
3
Components
Concrete bolts, washers and nuts (29)
x 16
1
29
29
Wood Bolts, washers
NOT SUPPLIED
to be purchased by user
1
12 of 24
STEP 5 Installing the Lower Roof Gable Profiles
ATTENTION:
DO NOT ATTEMPT TO ASSEMBLE THIS ALONE !
Roof Gable Profile (9)
2175mm
x 4
T- connector A (32)
x 4
Using at least three people,
install the roof gables (9,10)
in the following order:
ATTENTION:
Roof Profiles, roof panels
1
and gables must be aligned
properly during assembly
to minimize any possibility
of leaking.
VIEW FROM BELOW
(from inside gazebo)
x 16
IMPORTANT: Make sure that the roof gable profiles (9,10) are installed exactly as shown so that the
pre-drilled screw holes will align properly with screw holes on the roof panels.
Roof Gable Profile (9)
Roof Gable Profile (10)
www.stcny.com
Roof Gable Profile (10)
1562mm
x 4
Screw (19)
T- connector B (33) Roof top connector (34)
x 16
x 4 x 8
1.
9
2. 10
9
1.
2.
BOTTOM VIEW OF PROFILES
Upper end
13 of 24
Components
Roof Top Cover (15)
x 1
Screw (20) Screw (22) Nut M6 (24)
x 28 x 8 x 8
2.
1.
9
10
2.
10
10 9
1.
Lower end
2175mm
1562mm
