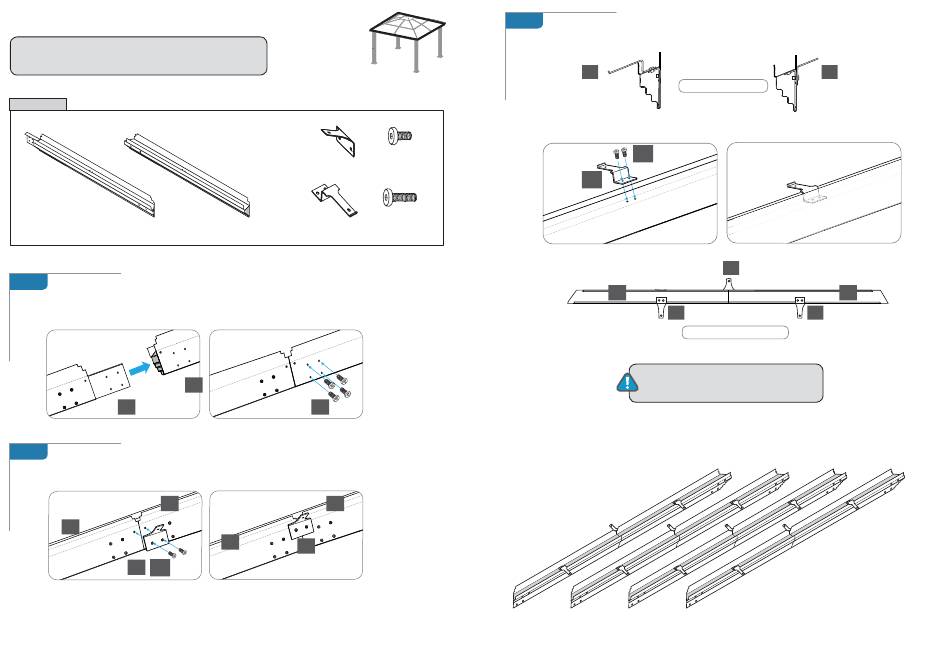

STEP 2 Assembling the Rails
NOTE: The Rails (5) have a preassembled connecting
parts to be inserted into Rails (6).
Components
Rail (5) Rail (6)
x 4 x 4
2.A
Insert connecting part of rail (5) into blunt end of rail (6) as shown.
Attach with four screws (18).
Repeat to create four sets of rails.
5
2.B
Attach inner roof connector (7) to each rail set as shown, using two screws (20).
6
5
7 20
www.stcny.com
Inner Roof Connector (7)
x 4
Outer Roof Connector (8)
x 8
6
18
6
5
7
8 of 24
2.C
Attach two outer roof connectors (8) to each rail set at pre-drilled screw holes, using screws (20).
Screw (18)
x 16
Screw (20)
x 24
www.stcny.com
8
VIEW FROM SIDE
20
8
7
6
8
VIEW FROM THE TOP
ATTENTION: Attach roof connectors
facing exactly in the directions shown.
x 4
9 of 24
7
5
8
