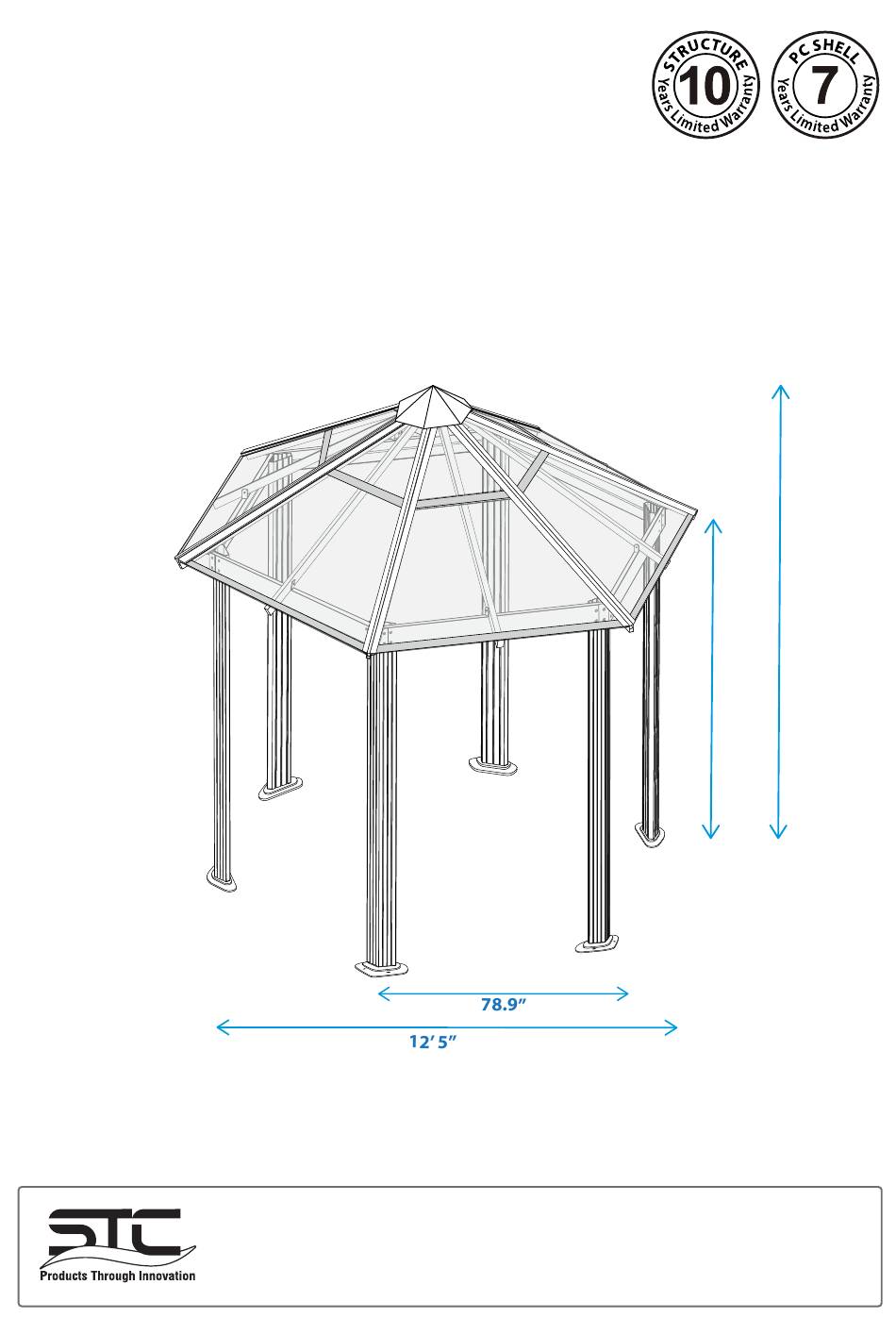

- Page 1 Gazebo GZ506D Assembly Instructions 7’2” 9’2” Systems Trading Corporation 450 7th Avenue Suite 2809, New York, NY 10123 Customer service: (877)782 4482 Email: easygrow@stcaustin.com of 20 www.stcny.com...
-
Page 2: Introduction
Introduction Thank you for purchasing the Gazebo GZ506D. When properly assembled and maintained, this gazebo will provide many years of enjoyment! These instructions include helpful hints and important information needed to safely assemble and properly maintain the gazebo. Please read these instructions completely before you begin. -
Page 3: Table Of Contents
Table of Contents Safety Advice Introduction..........• The gazebo must be positioned and fixed Table of Contents........on a flat level surface. List of Parts..........• Dispose of all plastic bags safely. Keep Step 1 Assembling the Corner Profiles..them out of the reach of children. •... -
Page 4: List Of Parts
The parts are identified by removable stickers. Place all the parts for each step in staging areas, checking that you have all parts as you go. If any parts are missing or damaged, contact STC customer service before beginning assembly: Customer service: (877)782 4482 Email: easygrow@stcaustin.com... - Page 5 1/4”x 32MM 1810mm We included some extra screws and bolts for your convenience. www.stcny.com of 20...
-
Page 6: Step 1 Assembling The Corner Profiles
Assembling the Corner Profiles STEP 1 Place all the parts on a level surface. Make sure the pieces are in the correct positions before assembling. Carefully follow the order of assembly to ensure an easy installation. Wear proper safety gear including work shoes, gloves and goggles. Components Place corner profiles (1) parallel to each other the ground. -
Page 7: Step 2 Attaching The Roof Profiles To Corner Profiles
Attaching Roof Profiles to Corner STEP 2 Profiles Slide eleven hooks (26) into rails in three profiles (3) as shown, to prepare for the VIEW FROM TOP Components hanging of curtains (25) in Step 8. Zipper side panel Roof profile (3) Position of hooks Screw (18) - Page 8 Using at least two people, attach the three remaining roof profiles (3) to the three corner profile sets (1+3+1) as shown, making sure the side with the ridge faces toward the corner profiles. Use screws (18) to fasten. VIEW FROM TOP ILLUSTRATION www.stcny.com of 20...
- Page 9 Attach corner connecting part (11) to inside of each corner using six screws (15) for each corner. Components Screw (15) x 36 Corner connecting part (11) IMPORTANT: After this step you should place the gazebo frame in its desired location. Make sure all corners are 120 degrees.
-
Page 10: Step 3 Attaching The Roof Connectors
STEP 3 Attaching the Roof Connectors Attach roof connectors (9) to roof profiles (3) as shown, Components using one screw (15) for each connector. Roof Roof Screw (15) connector (9) connector (10) x 30 Attach roof corner connectors (10) to roof profiles (4) as shown, using four screws (15) for each connector. -
Page 11: Step 4 Securing The Gazebo To The Ground
STEP 4 Securing the Gazebo to the Ground Fasten the gazebo frame to the ground, using three spikes (21) Components for each support plate. Ground spike (21) x 18 ATTENTION: For special instructions how to secure the gazebo to a concrete floor or wood deck, please turn to page 17. -
Page 12: Step 5 Installing The Roof Gables
Installing the Roof Gables STEP 5 Components 1/4”x 30MM 1/4”x 32MM 1/4”x 15MM Roof gable (4) Roof gable (20) Screw (16) Screw (19) Screw (15) Roof top plate (12) Roof top plate (13) x 24 With the help of at least two people, install the roof gables (4) in the following order: VIEW FROM BELOW IMPORTANT: The roof gable profiles (4) have pre-drilled screw holes underneath on each end. - Page 13 Using screws (15) connect three roof profiles (4) to roof connectors (10) and to roof top plate (12) as shown. ILLUSTRATION VIEW FROM BELOW VIEW FROM BELOW Install the remaining three roof gables (4) in the same way. VIEW FROM BELOW www.stcny.com of 20...
- Page 14 Using screws (15) connect the six roof profiles (20) to roof connectors (9) and to roof top plate (12) as shown. VIEW FROM BELOW Toward roof top plate (12) Toward roof connectors (9) Install roof top plate (13), using one screw (16) through roof top plate (12) from below (inside gazebo) as shown.
-
Page 15: Step 6 Installing The Roof Panels
Installing the Roof Panels STEP 6 Remove protective plastic from both sides of upper roof panels (6,8). Place side to face toward the sun facing out when installing. Components Slide one upper roof panel (6) into groove of roof connector profile (7A) and slide this Roof connector profile (7A) set between roof gable profiles (4) towards Screw... -
Page 16: Step 7 Installing The Roof Gable Covers
Installing the Roof Gable Covers and STEP 7 End Covers Components Slide upper end of roof gable cover profiles (5) under roof top plate (13) as shown and lower the profiles to fit snugly into roof gable profiles (4). Roof gable cover Screw End Cover (17) -
Page 17: Step 8 Hanging The Net Curtains
Hanging the Curtains STEP 8 Hang one piece of curtain (25) on the hooks in the rail of one roof profile (3). After hanging one piece of curtain on the Components rail, pull it from the mid point of the 1st rail to the mid point of the 3rd rail. - Page 18 GZ506D Gazebo Assembly Instructions WARRANTY: Warranty covers damage due to manufacturing defects only. Warranty does not cover weather inflicted damage (Force Majeure) and/or damages caused by not following assembly instructions and adhering to warnings in manual. ATTENTION: Roof profiles, roof panels and gables must be aligned properly during assembly to minimize any possibility of leaking.
