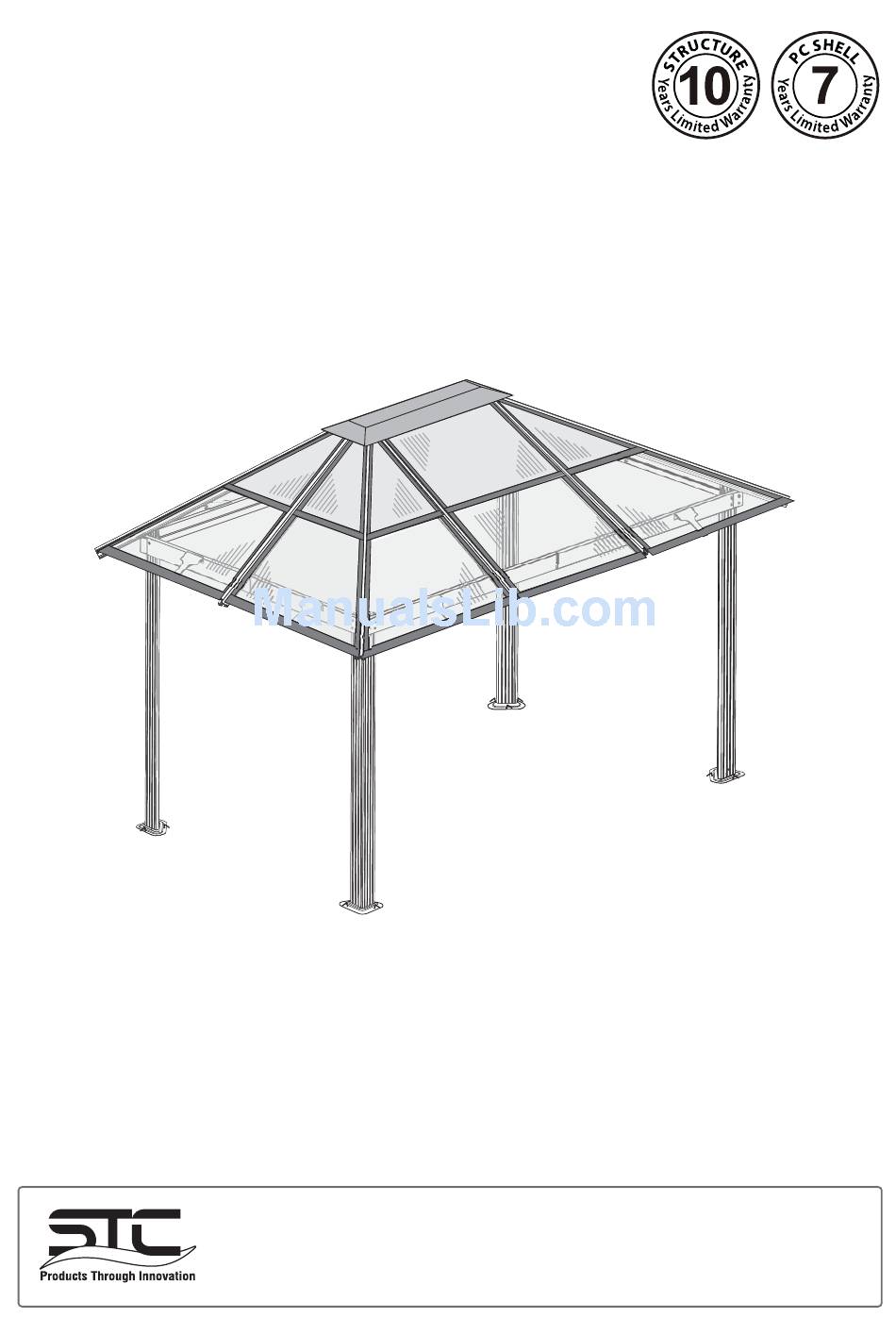

- Page 1 Gazebo GZ620H Assembly Instructions Systems Trading Corporation 450 7th Avenue Suite 2809, New York, NY 10123 Customer service: (877)782 4482 Email: easygrow@stcaustin.com of 20 www.stcny.com...
-
Page 2: Introduction
Introduction Thank you for purchasing the Gazebo GZ620H. When properly assembled and maintained, this gazebo will provide many years of enjoyment! These instructions include helpful hints and important information needed to safely assemble and properly maintain the gazebo. Please read these instructions completely before you begin. -
Page 3: Table Of Contents
Safety Advice Table of Contents • The gazebo must be positioned and fixed Introduction..........on a flat level surface. Table of Contents........• Dispose of all plastic bags safely. Keep List of Parts..........them out of the reach of children. Step 1 Assembling the Corner Profiles.. -
Page 4: List Of Parts
The parts are identified by removable stickers. Place all the parts for each step in staging areas, checking that you have all parts as you go. If any parts are missing or damaged, contact STC customer service before beginning assembly: Customer service: (877)782 4482 Email: easygrow@stcaustin.com Profile... - Page 5 We included some extra screws and bolts for your convenience. www.stcny.com of 20...
-
Page 6: Step 1 Assembling The Corner Profiles
Assembling the Corner Profiles STEP 1 Place all the parts for the Floor Frame face on a level surface. Make sure the pieces are in the correct positions before assembling. Carefully follow the order of assembly to ensure an easy installation. Wear proper safety gear including work shoes, gloves and goggles. -
Page 7: Step 2 Assembling The Roof Profiles
Assembling the Roof Profiles STEP 2 Insert connecting profile (21) Components into long roof profiles (3,4). Screw (25) x 16 Roof profile (3) Roof profile (4) Connecting profile (4) 1822mm 1822mm Fasten together using screws (25). Repeat steps 2A and 2B to make the two long roof profile sets. - Page 8 Components Insert connecting profile (21) into short roof profiles (5,6). Screw (25) x 12 Roof profile (5) Roof profile (6) Connecting profile (4) 1350mm 1350mm Fasten together using six screws (25). Repeat steps 2A and 2B to make the two short roof profile sets. ATTENTION: Insert screws exactly as shown.
-
Page 9: Step 3 Attaching The Roof Profiles To Corner Profiles
Attaching Roof Profiles to Corner STEP 3 Profiles Attach long roof profile set to corner profiles as shown, making sure the side with the ridge faces toward the corner profiles. Components Screw (26) Fasten together using two screws (26) on each side. Repeat to create two sides for the gazebo. - Page 10 Components Using three people, attach the short roof profile sets to corner profiles as shown, making sure the side with the ridge faces toward the corner profiles. Use screws (26). Screw (26) ILLUSTRATION www.stcny.com of 20...
- Page 11 Components Attach corner connecting part (22) to inside of each corner using seven screws (25) for each corner. Screw (25) x 28 Corner connecting part (22) IMPORTANT: After this step you should place the gazebo frame in its desired location. IMPORTANT: After this step you should place the gazebo frame in its desired location.
-
Page 12: Step 4 Attaching The Roof Connectors
Attaching the Roof Connectors STEP 4 Attach roof connectors (7) to roof profiles Components (3,4,5,and 6) as shown, using two screws (25) for each connector. Roof Roof Roof connector (7) connector (8) connector (9) Screw (25) x 44 Attach roof corner connectors (9) to roof profiles (3,4,5,and 6) as shown, using four screws (25) for each connector. -
Page 13: Step 5 Securing The Gazebo To The Ground
From inside of the gazebo frame, attach roof connectors (8) to roof profiles (3,4,5 and 6) as shown. 3 - 4 ATTENTION: Insert screws exactly as shown. In roof profiles (5,6), use empty screw holes. In roof profiles (3,4), use pre-drilled screw holes. Securing the Gazebo to the Ground STEP 5 Fasten the gazebo frame to the ground, using three spikes (23) -
Page 14: Step 6 Installing The Roof Gables
Installing the Roof Gables STEP 6 Components Roof top Roof top Roof gable (11) Roof gable (12) Screw (24) Screw (25) plate (16) plate (10) 2171mm 1584mm x 20 Using at least three people, install the roof gables (11,12) in the following order: VIEW FROM TOP IMPORTANT: The roof gable profiles (11,12) have two small protrusions underneath on each end. - Page 15 Slide screws (24) into profiles (12) and connect one end to roof top plate (16) and the other end to roof connectors (8), using the bolts. The protrusions will stop the profiles from sliding too far. ILLUSTRATION Install roof gable profiles (11) in the same way. Slide screws (24) into profiles (11) and connect one end to roof top plate (16) and the other end to roof connectors (9), using the bolts.
- Page 16 Connect the roof top plate (10) to the roof top plate (16) as shown, using four screws (25). VIEWS FROM BELOW www.stcny.com of 20...
-
Page 17: Step 7 Installing The Upper Roof Panels
Installing the Upper Roof Panels STEP 7 Remove protective plastic from both sides of upper roof panels (13,14,15). Place side to face toward the sun facing out when installing. Components Slide upper roof panels (13,14,15) into their positions as shown. Roof panel Screw (27) Roof panel... -
Page 18: Step 8 Installing The Lower Roof Panels
Installing the Lower Roof Panels STEP 8 Remove protective plastic from both sides of lower roof panels (17,18,19). Place side to face toward the sun facing out when installing. Components Slide lower roof panels (17,18,19) into their positions as shown. Roof panel Roof panel Roof panel... -
Page 19: Optional
Optional Securing the Gazebo to a Concrete Floor Components 1. Using an electric concrete drill, drill holes into the concrete floor, corresponding to the holes in the support plates. 2. Insert concrete bolts (28) into the holes and hammer into place, using a mallet. Bolts, disks and nuts (28) 3. - Page 20 Gazebo GZ620H Assembly Instructions Visit: http://www.stcny.com for more Lawn and Garden products EasyGrow 8’x 12’ Greenhouse Systems Trading Corporation 450 7th Avenue Suite 2809, New York, NY 10123 Customer service: (877)782 4482 Email: easygrow@stcaustin.com www.stcny.com of 20...
