STC GZ3D Assembly Instructions Manual page 11

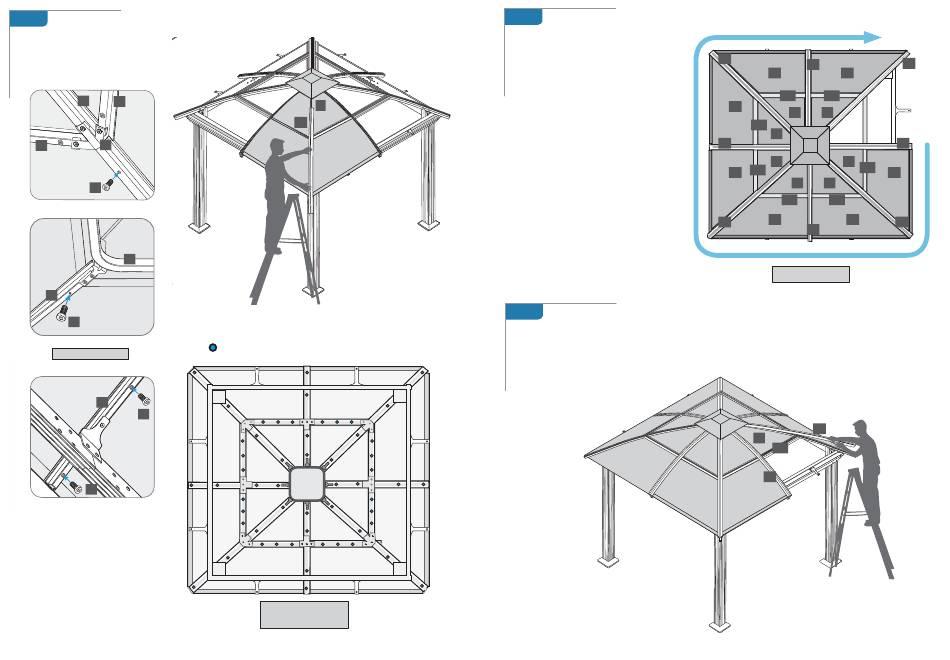

7.E
Slide roof profile (9A) into rails on top of roof profile (9)
from lower end towards top of gazebo as shown.
Fasten with four screws (22) from below.
9
17
33
16
22
15
9
22
VIEWS FROM BELOW
10
22
22
www.stcny.com
9
9A
Positions of screws (22) from below roof.
VIEW FROM BELOW
(from inside gazebo)
20 of 24
7.F
Continue in a clock-wise direction as
shown, until the last two panels:
Place the upper roof panel.
Place the lower roof panel, secure with
one screw (23) from below.
Place the roof gable profile, fasten with
four screws (22) from below.
7.G
Place the last upper roof panel (14).
Place the last roof gable profile (9A) on top of
(9), fasten ONLY AT THE TOP END
with 1 screw (22) from below
roof profile (9).
www.stcny.com
9A
10A
12 11
17A 16A
11
14 13
16A
13
10A
14 13
16A
17A
12
13 14
16A 17A
11 12
9A
10A
VIEW FROM TOP
9A
14
17
10A
21 of 24
9
10A
11
9A
