Step 8 Installing The Plastic Caps - STC GZ3D Assembly Instructions Manual

7.H
Slightly lifting the roof gable profiles (9A and 10A), place the lower roof panel (12) and secure with one screw
(23) from below.
Fasten the roof gable profiles (9A and 10A) at their lower end with screws (22) from below.
Place the horizontal roof profile (17A) carefully
from above as shown, fasten with three
screws (22) from below.

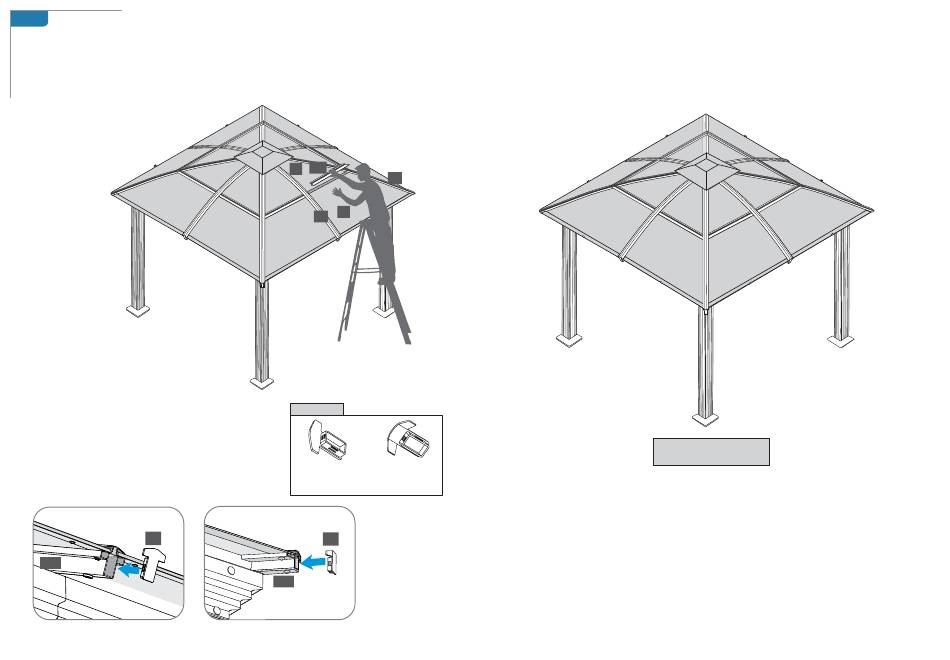

STEP 8 Installing the Plastic Caps
Close off roof profiles (10) with plastic caps #1 (26) and
roof profiles (9) with plastic caps #2 (27).
26
10
www.stcny.com
17A
14
12
10A
Components
Plastic Cap #1 (26) Plastic Cap #2 (27)
x 4
27
9
22 of 24
9A
x 4
www.stcny.com
ENJOY YOUR
COMPLETED GAZEBO !
23 of 24
