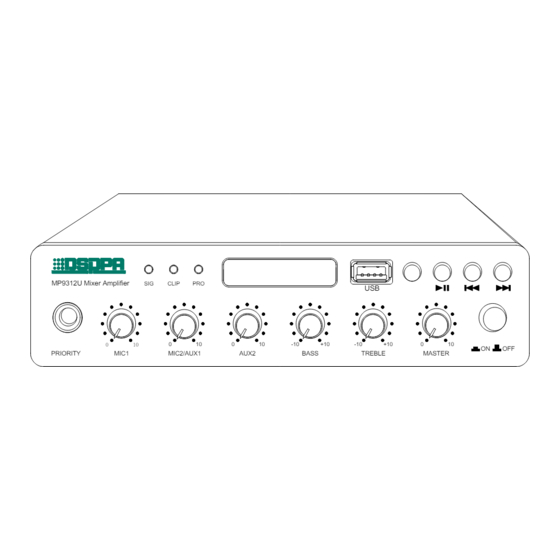

MP9312U Mixer Amplifier
PRIORITY
Operation Instructions
Welcome to use DSPPA public address system. For the better use of this product, please read this instruction carefully
prior to use.
export@dsppa.com
Guangzhou DSPPA Audio Co.,Ltd
SIG
CLIP
PRO
0
10
0
10
MIC1
MIC2/AUX1
Public Address System
0
10
-10
+10
AUX2
BASS
1
D
igital Mixer Amplifier
USB
M
-10
+10
0
10
TREBLE
MASTER
Guangzhou DSPPA Audio Co., Ltd
http://www.dsppatech.com
http:www.dsppatech.com
MP9306
MP9312
ON
OFF
Advertisement
Table of Contents
Related Manuals for DSPPA MP9312
Summary of Contents for DSPPA MP9312
- Page 1 CLIP PRIORITY MIC1 MIC2/AUX1 AUX2 BASS TREBLE MASTER Operation Instructions Welcome to use DSPPA public address system. For the better use of this product, please read this instruction carefully prior to use. Guangzhou DSPPA Audio Co., Ltd http://www.dsppatech.com export@dsppa.com http:www.dsppatech.com...
- Page 2 About this User Manual This User Manual is available and effective upon completion of development of the mixer amplifier MP9306/MP9312. The User Manual includes system description, matters needing attentions in use, instructions on system connection, instructions on use of product and technical specifications of the network address center. Please read this User Manual carefully before connection, installation and use and operate in accordance with corresponding instructions in the Manual.
-
Page 3: Table Of Contents
Guangzhou DSPPA Audio Co.,Ltd Content 1. PRODUCT DESCRIPTION....................错误！未定义书签。 1.1 FEATURES..............................4 2. APPEARANCE DESCRIPTION.......................... 4 2.1 Front panel..............................4 2.2 rear panel................................ 6 2.3 SIDE PANEL............................-4 - 3. WORKING MODE..............................7 3.1Bluetooth mode....................... 错误！未定义书签。 3.2 USBmode........................错误！未定义书签。 3.3 Line mode........................错误！未定义书签。... -
Page 4: Product Description
Guangzhou DSPPA Audio Co.,Ltd 1. Product Description 1.1 Features With 3 working modes:Bluetooth ,USB and Line. Wireless Bluetooth playing. With Signal level indicator (SIG), Clip Indicator (CLIP), and Protection indicator(PRO). 100 VRS prior line input ,EMC input. - Page 5 Guangzhou DSPPA Audio Co.,Ltd 1. Mic 1 priority input 2. MIC1 volume adjustment Adjust the volume of MIC1, turn clockwise to turn up, turn counter clockwise to turn down. 3. MIC2/AUX1 volume adjustment Adjust the volume of MIC2/AUX1, turn clockwise to turn up, turn counter clockwise to turn down.
-
Page 6: Rear Panel
Guangzhou DSPPA Audio Co.,Ltd 2.2 Rear panel 1. AC220V Power input socket The interface is to supply the working power. Insert the plug onto the machine, then connect the power grid. 2. Cooling fan window 3. Speaker output interface 4. LINE1 /MIC2 IN balanced input interface Can connect with microphone or other external audio 5. -
Page 7: Side Panel
Guangzhou DSPPA Audio Co.,Ltd 2.3 Side Panel Heat dissipation vent 3. W orking mode With 3 mode:USB mode, Bluetooth mode, Line mode 3.1Bluetooth mode Press MODE to display “BLUE” on the digital screen, the “BLUE” will always flash until device and mobile phone pairing success, the name is “Bluetooth”. -
Page 8: Remote Control Instructions
Guangzhou DSPPA Audio Co.,Ltd 4. Remote control instructions As shown in the following figure: Function key description： Mode main function key，working mode switch. Power switch Play & Pause/（Search the audio aromatically when in FM) EQ sound effect 0-9 song selection key，can be composed of digital channel selection when in FM Mute key Last song/（Last audio when in FM）... - Page 9 Guangzhou DSPPA Audio Co.,Ltd Safety Precautions 1. Safety Precautions Please do NOT connect this device to the power source, before the system is correctly wired. It is important to ensure that input voltage to the device is the same as required voltage of the device;...
-
Page 10: Packing List
Guangzhou DSPPA Audio Co.,Ltd Packing list List Quantity MP9306 or MP9312 Manual Guarantee card Certificate Power line Remote control Performance Model MP9306U MP9312U MP9306D MP9312D Rated Power 120W 120W Speaker Output 100V 0.06（±0.015） VRMS Sensibility Line 0.3（±20mV)VRMS 100V-IN 100 VRMS ≥74db(Maximum) - Page 11 ● This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the device from power source by pulling out the plug out from the socket, therefore, it is required that the power socket should be located somewhere with easy access. Guangzhou DSPPA Audio Co., Ltd. export@dsppa.com http:www.dsppatech.com...
