Honda 0SP36-HL5-201 Installation Instructions

Trailerable cover 2p/3p
Hide thumbs

Advertisement

Quick Links

INSTALLATION
INSTRUCTIONS
Honda Dealer: Please give a copy of these instructions to your customer.

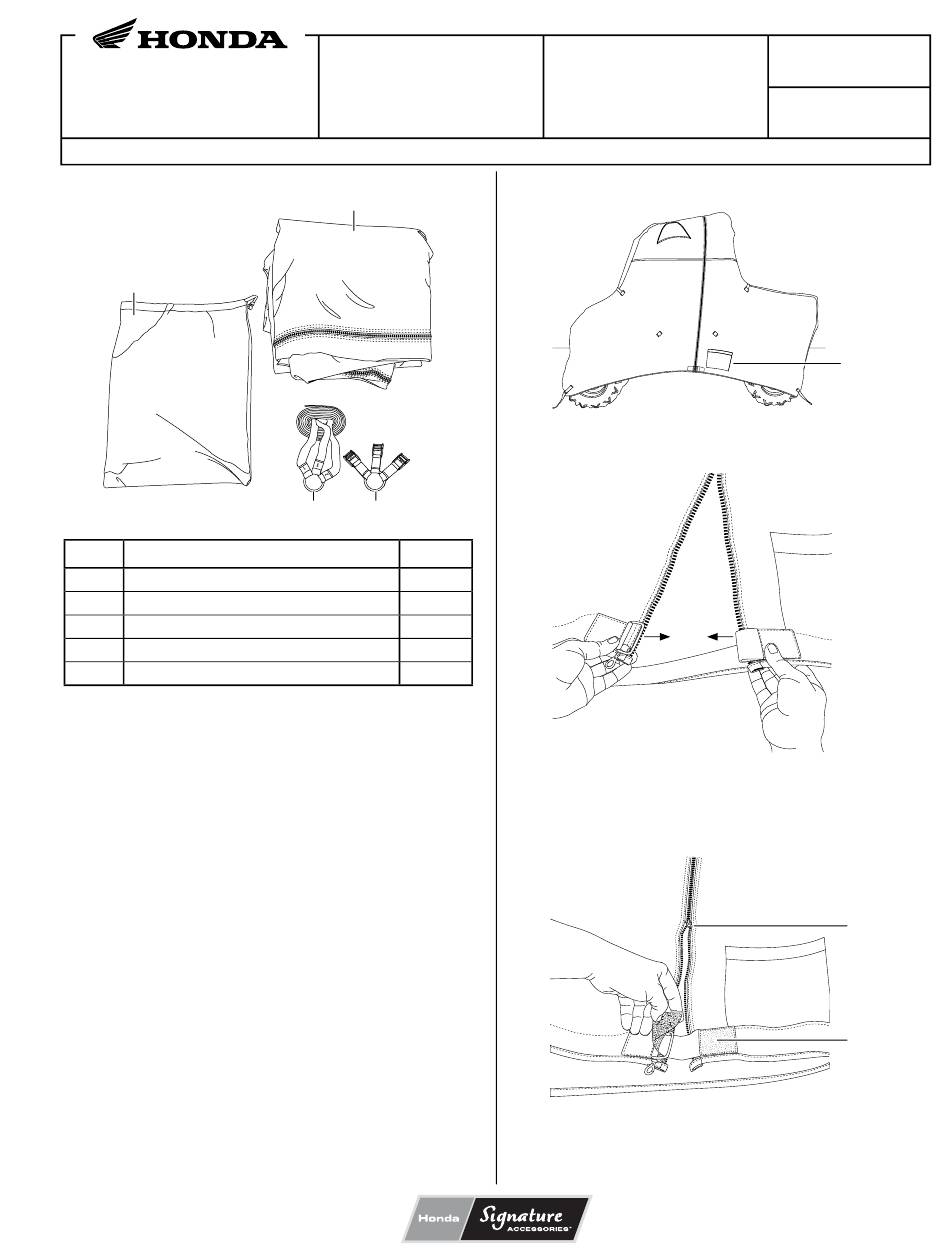

PARTS LIST
(1)
HONDA
No.
Description
(1)
Carry Bag
(2)
Storage Cover
(3)
Metal ring with 3 straps
(4)
Metal ring with 3 cam buckles
(5)
Installation Instruction URL (not shown)
USE AND CARE INFORMATION
• Clean this accessory with warm soapy water and a
sponge or soft brush. Let it air-dry.
• Do not use a washing machine or dryer.
INSTALLATION
NOTE:
• Allow the vehicle to fully cool before installing this
accessory.
• Remove any accessories with sharp edges that
could cut the cover before installing it.
• It may be easier to install the cover with the driver
side zipper open.
1.
Orient the cover with the Honda logo facing forward
over the front of the cab frame.
2. Place the cover over the top of the vehicle, covering
the back and front of the cab frame.
3. Pull the front of the cover over the hood and
headlights.
4. Pull the rear of the cover down to the ground.
Pull the front of the cover to the ground.
© 2016 American Honda Motor Co., Inc - All Rights Reserved.
Accessory
TRAILERABLE COVER (2P/3P)
P/N 0SP36-HL5-201
0SP36-HL3-202
0SP36-HL4-202
(2)
(3)
(4)
Qty
1
1
1
1
1
Application
SXS500M2
SXS700M2
SXS1000M3/M3P
5. Remove all straps from storage pouch.
6. Pull each side of the open panels together at the
bottom of the cover as shown.
7.
Lock the bottom of the cover together by looping the
self fastening strap through the D-ring and back onto
itself as shown.
Pull the zipper down to close the cover.
0SP36-HL5-201, 0SP36-HL3-202, 0SP36-HL4-202
Publication No.
Mll 15753
Issue Date
August 2016
STORAGE
POUCH
DRIVER SIDE
ZIPPER
SELF-
FASTENING
STRAP
1 of 3
