Honda 0SR73-HL5-100 Installation Instructions

INSTALLATION
INSTRUCTIONS
Honda Dealer: Please give a copy of these instructions to your customer.

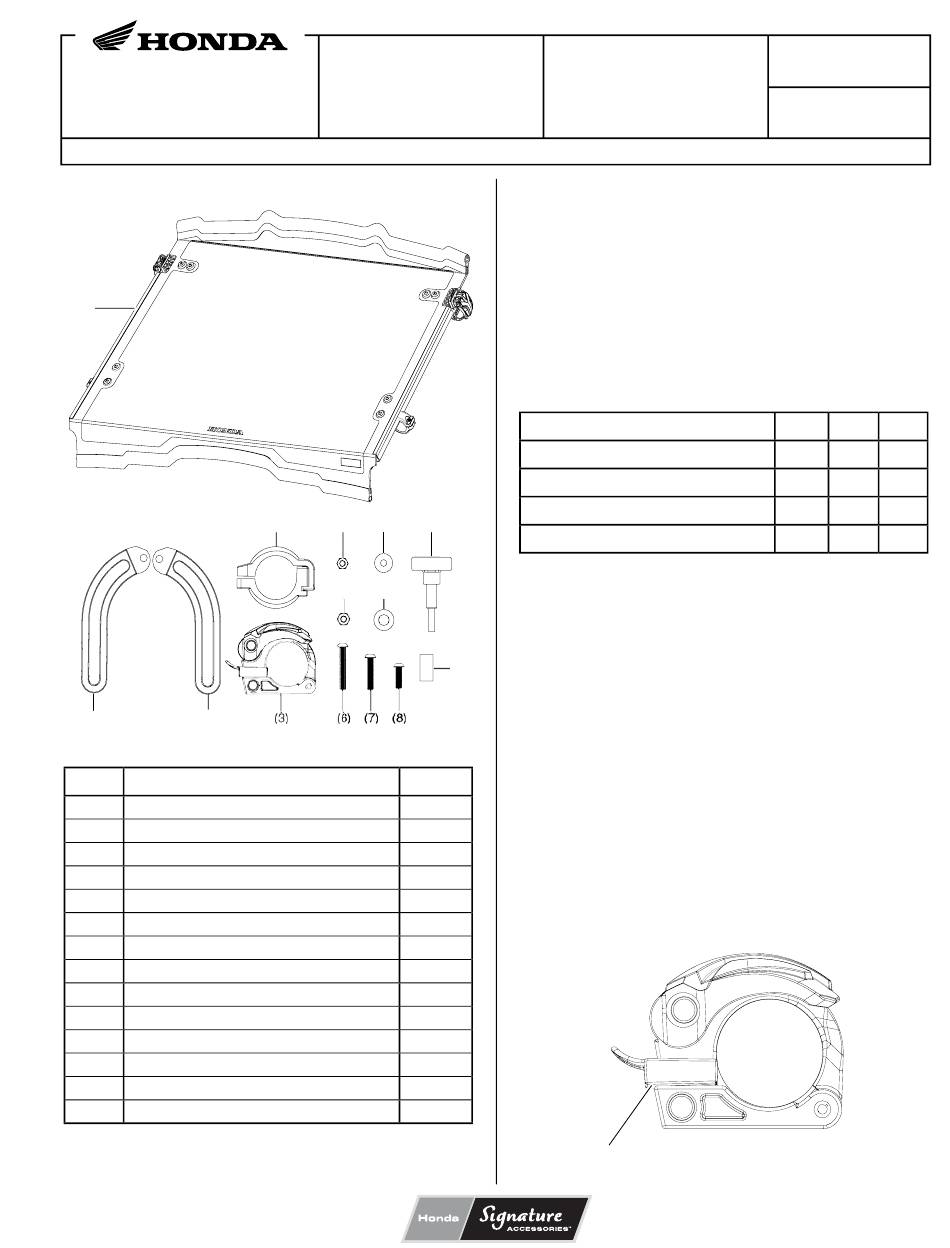

PARTS LIST
(1)
(5)
(4)
No. Description
(1) Windscreen
(2) Clamp
(3) Cam lock
(4) Hinge arm, left
(5) Hinge arm, right
(6) 6 x 40 mm socket bolt
(7) 6 x 30 mm socket bolt
(8) 6 x 20 mm socket bolt
(9) 6 mm lock nut (small)
(10) 1/4 inch lock nut (large)
(11) Small washer
(12) Large washer
(13) 25 mm collar
(14) Knob
© 2014 American Honda Motor Co., Inc - All Rights Reserved.
Accessory
FULL POLY TIP OUT
WINDSCREEN
(OPTICAL)
P/N 0SR73-HL5-100
(2) (9) (11) (14)
(10) (12)
Qty
1
2
2
1
1
2
2
2
6
2
2
4
2
2
Application
SXS500M2
TOOLS AND SUPPLIES REQUIRED
Hex wrench (4 and 6 mm)
Torque wrench
Open-end wrench (8 and 10 mm)
TORQUE CHART
Tighten all screws, bolts, and nuts to their specified
torque values. Refer to the Service Manual for the torque
values of the removed parts.
6 mm socket bolt
6 x 30 mm socket bolt
6 mm nut
Stud
USE AND CARE INFORMATION
• Check the accessor y mounts frequently and
retighten if necessary.
• Replace this accessory with a new one if it is
damaged or discolored excessively.
(13)
• When this accessor y becomes dir ty, rinse it
thoroughly with cool water to remove loose dirt, and
then wash with warm soapy water and a clean cloth
or sponge.
• Do not use a brush to clean this accessory as it may
scratch the surface.
• Never use petroleum solvents such as gasoline,
thinner, or benzene to clean this accessory. Also do
not use acid or alkaline cleaners.
NOTE
• Remove and discard the rubber shipping spacer from
the cam locks before installation of this accessory.
SHIPPING SPACER
(DISCARD)
Publication No.
June 2014
Item N·m
7
1
7
1
0SR73-HL5-100
Mll 14948
Issue Date
kgf·m Ibf·ft
0.7 5.2
0.1 0.9
0.7 5.2
0.1 0.9
1 of 3
