Summary of Contents for Dometic CPB101

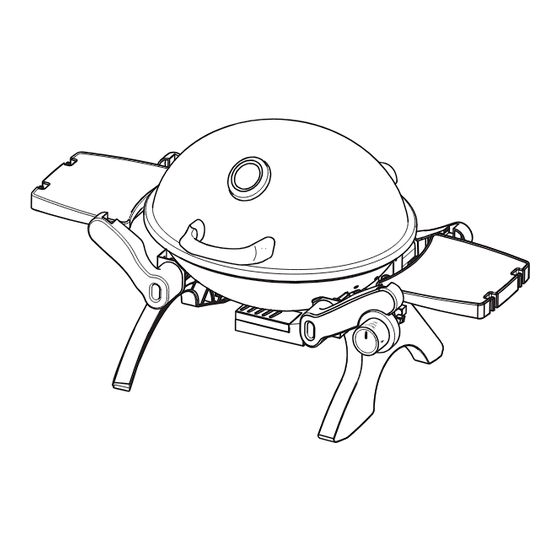

- Page 1 HOT & COOKING OUTDOOR CPB101 Portable BBQ Installation and Operating Manual...
- Page 2 © 2020 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
- Page 3 CPB101 M6x15...
- Page 4 CPB101...
- Page 5 CPB101...
- Page 6 CPB101 t 50 cm...
- Page 7 CPB101 CLICK...
- Page 8 CPB101...
- Page 9 CPB101...
-
Page 10: Table Of Contents
CPB101 Important. Read this instructions for use carefully. Familiarise yourself with the appliance before connecting it to its gas con- tainer. Keep this instructions for future reference. If the device is passed on to another person, this manual must be handed over to the user along with it. -
Page 11: Explanation Of Symbols
CPB101 Explanation of symbols Explanation of symbols WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. - Page 12 General safety instructions CPB101 Safety precautions when handling liquid gas WARNING! • After use always disconnect the gas cylinder. • Store gas cylinders away from heating or cooking devices and other light or heat sources in a well-ventilated area out of the reach of chil- dren.
- Page 13 CPB101 General safety instructions • Avoid twisting or kinking the flexible hose. • This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
-
Page 14: Scope Of Delivery
See fig. 1, page 3. Intended use The Dometic CPB101 portable BBQ is intended for domestic mobile outdoor use only. Do not use for commercial purposes including events in clubs or similar events. Any enclosure in which the appliance is used shall comply with one of the following (see fig. -
Page 15: Before Initial Use
CPB101 Before initial use Before initial use The permitted gas pressure can be found on the type plate of the device. Always use the supplied gas hose and regulator. If this becomes damaged please contact the manufacturer‘s support (see back page) to organise a replacement. -
Page 16: Using The Device
Using the device CPB101 Using the device Placing the device (fig. 5, page 6) When selecting the location for barbecuing, observe the following instructions: • Set up the device outdoors in a well-ventilated place. Do not place it in a dip to prevent any gases from accumulating there. - Page 17 CPB101 Using the device Igniting the device WARNING! Beware of injury • Only use the device when you or another person can attend to it. • Before igniting the BBQ ensure that there is no grease build up on the hotplate or in the grease tray as this may lead to unexpected flare ups.
- Page 18 Using the device CPB101 Barbecuing Please observe the following instructions when barbecuing: • Before barbecuing, coat the cooking surface of the portable BBQ with a liberal coating of cooking oil, which will assist to prevent food sticking. • The device must be warmed up before use, light the burner and allow it to oper- ate on high setting for 3 –...
-
Page 19: Cleaning And Maintaining The Device
CPB101 Cleaning and maintaining the device Replacing the gas cylinder WARNING! Beware of injury Change the gas cylinder in a well-ventilated location. Ensure that there are no open flames in the vicinity. Only replace the gas cylinder when the device is switched off. -
Page 20: Troubleshooting
Troubleshooting CPB101 ➤ Check the burner periodically for any sort of blockage. – If any flame ports are blocked, use a wire brush to unblock them. – If the burner is blocked, use a stiff wire ore pipe cleaner to unblock it. -
Page 21: Warranty
Warranty If the product does not work as it should, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer). The warranty applicable to your product is 1 year(s). For repair and warranty processing, please include the following documents when you send in the device: •... -
Page 22: Technical Data
Technical data CPB101 Technical data Dometic CPB101 Connection pressure: 2.75 kPa Gas consumption: 255 g/h Gas category: Universal LPG Injector size: 0.91 mm Thread connection: 5/8" – 18UNF Dimensions: Without side trays: 430 x 640 x 420 mm With side trays: 430 x 940 x 420 mm Weight: 9.2 kg... - Page 24 YOUR LOCAL YOUR LOCAL YOUR LOCAL DEALER SUPPORT SALES OFFICE dometic.com/dealer dometic.com/contact dometic DOMETIC GROUP AB...
