SUMS uridan ADMIRAL GV-10 Installation Instruction

Installation Instructions

x fitting No. 1

x uriLOCK 0.3 L

x uriCLEAN 0.5 L

Note

Installation of the uridan waterless urinal is very

simple.

If you are retrofitting existing flushing urinals with uridan

waterless urinals, please ensure that the sewer line is jetted

and clean of uric scale before installation.

Please also remove any existing s-trap to avoid double

trapping the urinal.

The uridan urinals work without water, and must be fitted to

a 50mm waste pipe. Installation should be carried out by

authorized plumbers in accordance with AZ/NZS3500.2.

PLEASE NOTE: The undiluted discharge from a waterless

urinal must not be transported through copper or copper alloy

pipework.

GV-10 Installation Instructions – May 2020

x screws fitting No. 1

x uriCLOTH

x 45° bend

x Cover

x suction device

www.uridanaustralia.com.au

Table of Contents

Need help?

Do you have a question about the uridan ADMIRAL GV-10 and is the answer not in the manual?

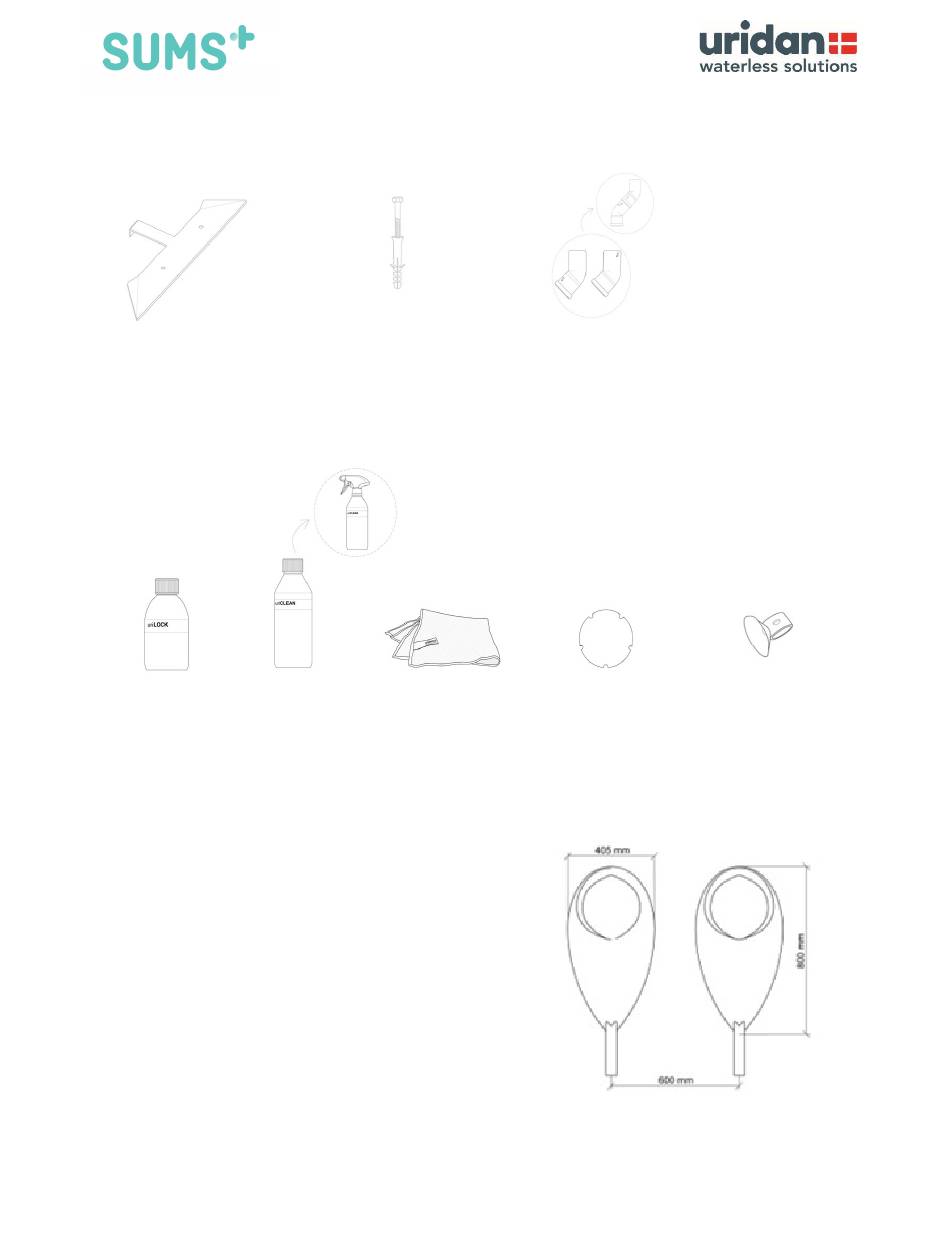

Page 1 Installation Instructions Parts List x screws fitting No. 1 x 45° bend x fitting No. 1 Fitting Kit x uriLOCK 0.3 L x uriCLEAN 0.5 L x uriCLOTH x Cover x suction device Note Installation of the uridan waterless urinal is very simple.
