Installation Instructions

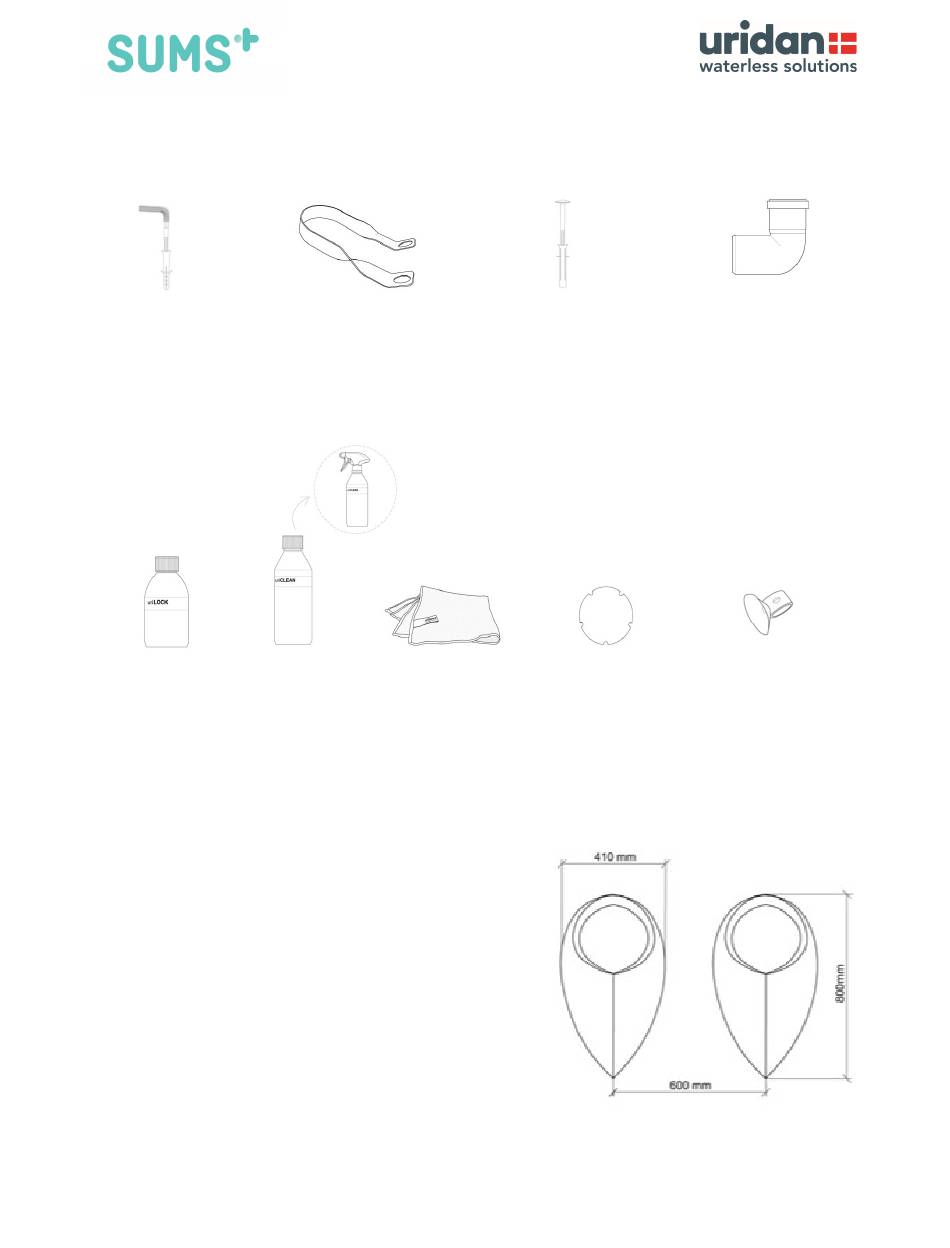

Parts List
|
2
x screws No. 19
Fitting Kit
|
1
x uriLOCK 0.3L
1
x uriCLEAN 0.5 L
Note
|
Installation of the uridan waterless urinal is very
simple.
If you are retrofitting existing flushing urinals with uridan
waterless urinals, please ensure that the sewer line is jetted
and clean of uric scale before installation. Please also remove
any existing s-trap to avoid double trapping the urinal.
The uridan urinals work without water, and must be fitted to a
50mm waste pipe. Installation should be carried out by
authorized plumbers in accordance with AZ/NZS3500.2.
PLEASE NOTE: The undiluted discharge from a waterless urinal
must not be transported through copper or copper alloy
pipework.
KH-10 Installation Instructions – May 2020
1
x fitting No. 15
2
1
x uriCLOTH
x screws fitting No. 15
1
x Cover
www.uridanaustralia.com.au
1
x 87° bend
1
x suction device
