SUMS uridan CADET KVC-10 Installation Instruction

Parts List

x screws No. 19

x 45° bend

x uriLOCK 0.3 L

x uriCLEAN 0.5 L

Installation of the uridan waterless urinal is very

simple.

If you are retrofitting existing flushing urinals with uridan

waterless urinals, please ensure that the sewer line is jetted

and clean of uric scale before installation. Please also remove

any existing s-trap to avoid double trapping the urinal.

The uridan urinals work without water, and must be fitted to

a 50mm waste pipe. Installation should be carried out by

authorized plumbers in accordance with AZ/NZS3500.2.

PLEASE NOTE: The undiluted discharge from a waterless

urinal must not be transported through copper or copper

alloy pipework.

KVC-10 Installation Instructions – May 2020

x uriCLOTH

x Cover

x suction device

www.uridanaustralia.com.au

Table of Contents

Do you have a question about the uridan CADET KVC-10 and is the answer not in the manual?

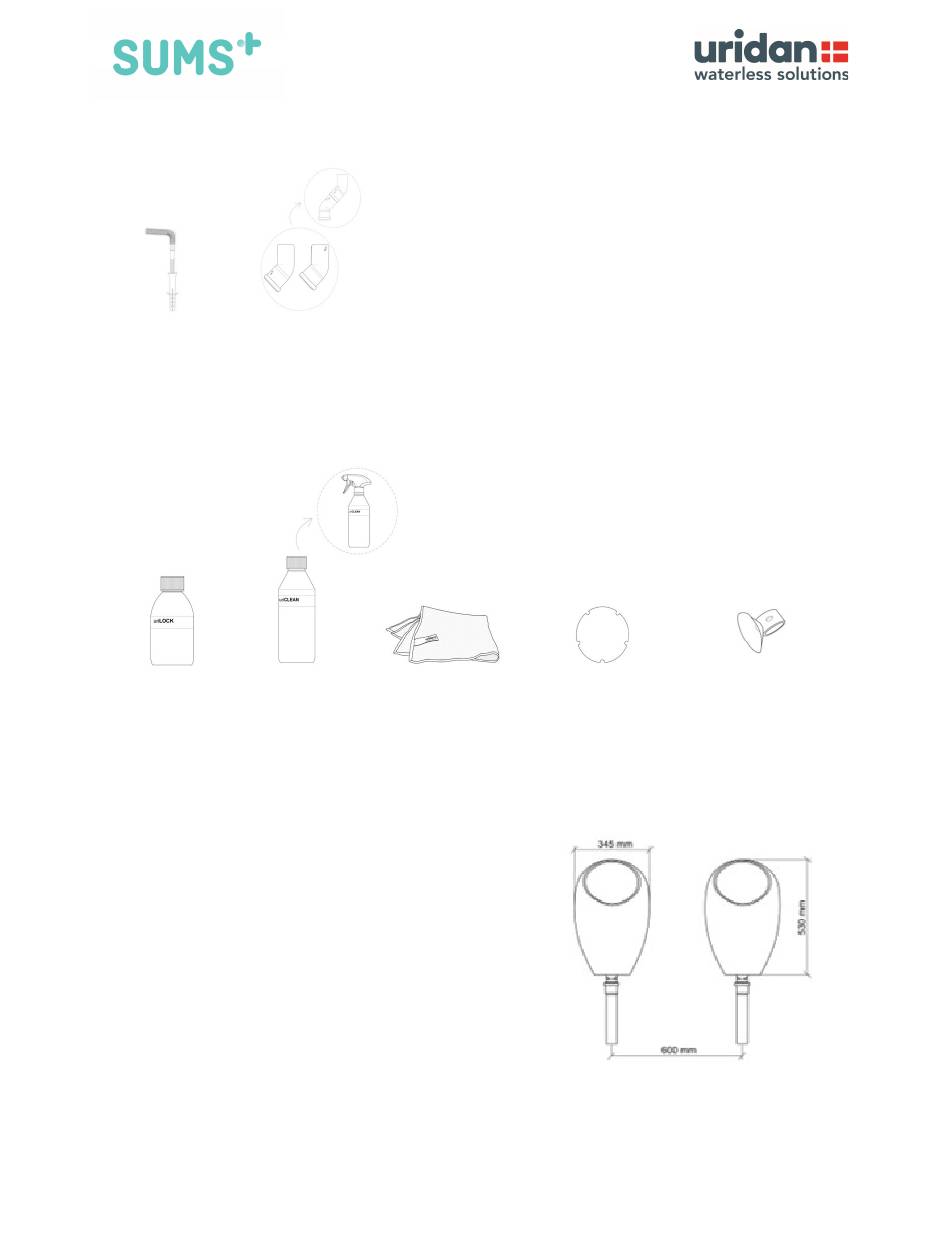

Page 1 Installation Instruction Parts List x screws No. 19 x 45° bend Fitting Kit x uriLOCK 0.3 L x uriCLEAN 0.5 L x uriCLOTH x Cover x suction device Note Installation of the uridan waterless urinal is very simple. If you are retrofitting existing flushing urinals with uridan waterless urinals, please ensure that the sewer line is jetted and clean of uric scale before installation.
