M-16-08
LIFT CORPORATION Sht. 1 of 9 DSG#
Rev. - Date: 05/05/17

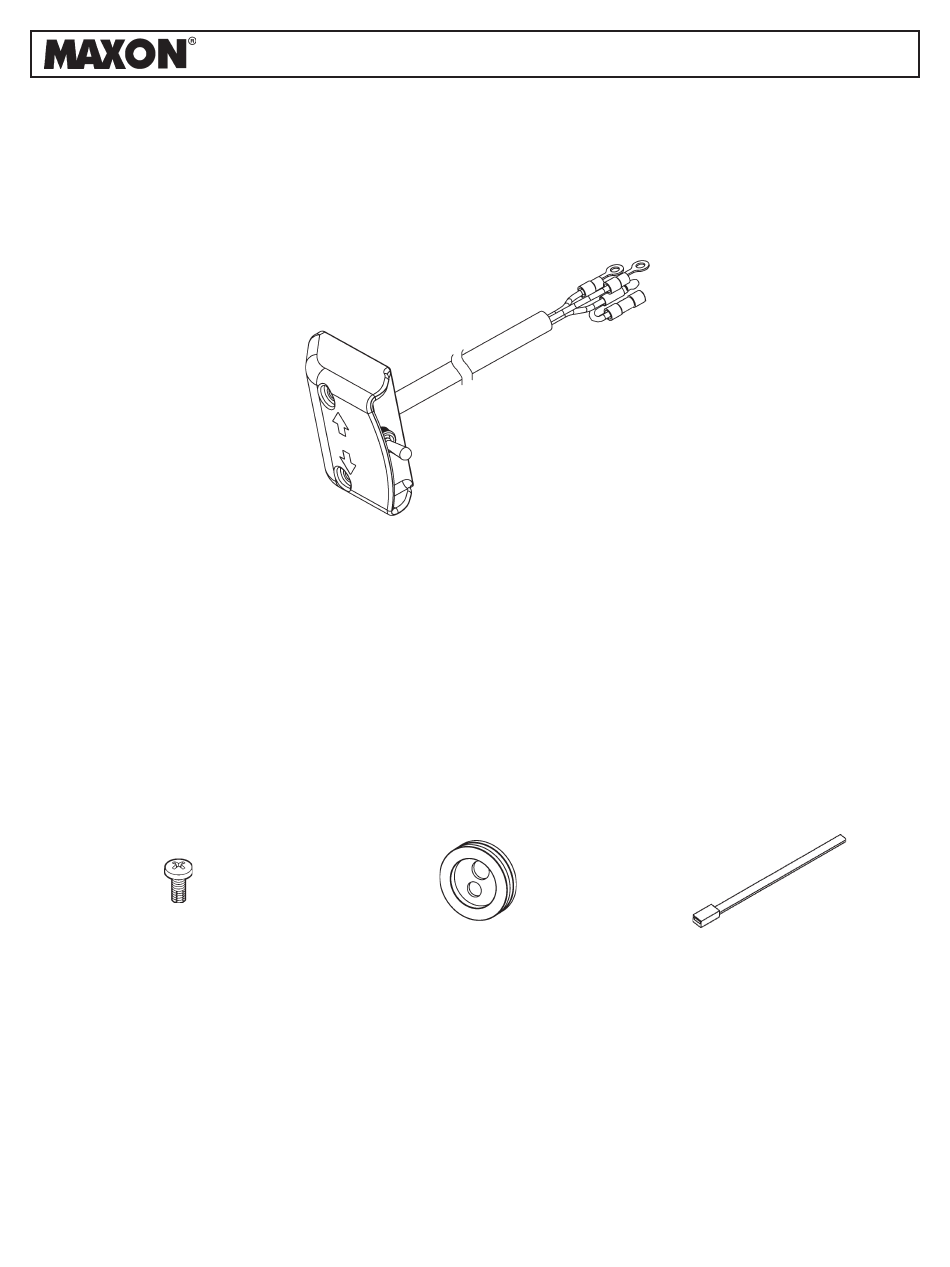

INSTRUCTION, TUK-A-WAY DUAL CONTROL
P/N 297115-01
TOGGLE SWITCH ASSEMBLY, 175" LG
P/N 296855-03
QTY. 1
SELF-TAPPING SCREW
GROMMET
7" PLASTIC TIE
P/N 900057-5
P/N 266428-12
P/N 205780
QTY. 2
QTY. 1
QTY. 3
© MAXON Lift Corp. 2017
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Maxon 297115-01
Summary of Contents for Maxon 297115-01
- Page 1 Rev. - Date: 05/05/17 INSTRUCTION, TUK-A-WAY DUAL CONTROL P/N 297115-01 TOGGLE SWITCH ASSEMBLY, 175” LG P/N 296855-03 QTY. 1 SELF-TAPPING SCREW GROMMET 7” PLASTIC TIE P/N 900057-5 P/N 266428-12 P/N 205780 QTY. 2 QTY. 1 QTY. 3 © MAXON Lift Corp. 2017...
- Page 2 M-16-08 LIFT CORPORATION Sht. 2 of 9 DSG# Rev. - Date: 05/05/17 ELECTRICAL SCHEMATIC (GRAVITY DOWN) FIG. 2-1 © MAXON Lift Corp. 2017...
- Page 3 M-16-08 LIFT CORPORATION Sht. 3 of 9 DSG# Rev. - Date: 05/05/17 ELECTRICAL SCHEMATIC (POWER DOWN) FIG. 3-1 © MAXON Lift Corp. 2017...
- Page 4 FIG. 4-1 2. Disconnect power from liftgate. Remove nut from negative (-) battery terminal (FIG. 4-2). Dis- connect negative (-) battery cable (FIG. 4-2). NEGATIVE (-) BATTERY CABLE NEGATIVE (-) BATTERY TERMINAL DISCONNECTING POWER FIG. 4-2 © MAXON Lift Corp. 2017...
- Page 5 Rev. - Date: 05/05/17 3. Measure, mark, and drill one 3/4“ hole and two #21–size holes in the vertical post on curb side of vehicle body as shown in FIG. 5-1. DRILLING HOLES IN VEHICLE BODY FIG. 5-1 © MAXON Lift Corp. 2017...
- Page 6 - FIG. 6-1.) Secure wiring to vehicle body using frame clips and/or loom clamps with CONTROL SWITCH self tapping screws (Kit items). WIRING Then, attach switch in correct position on corner post. PUMP ASSEMBLY CONTROL SWITCH WIRING FIG. 6-1 © MAXON Lift Corp. 2017...
- Page 7 (FIG. 8-2) as shown on the next page. 8. Reconnect battery cable to starter solenoid (FIG. 7-1B). 9. Bolt on the pump cover as shown in FIG. 7-1. BOLTING / UNBOLTING PUMP COVER FIG. 7-1 © MAXON Lift Corp. 2017...
- Page 8 FIG. 8-1 WHITE WIRE DUAL CONTROL SWITCH POWER DOWN MODULE TERMINAL 1 TERMINAL 2 BLACK WIRE MAIN CONTROL SWITCH CABLE GROMMET GREEN WIRE 10A FUSE STARTER SOLENOID CONNECTING SECOND CABLE TO P/D PUMP FIG. 8-2 © MAXON Lift Corp. 2017...
- Page 9 11. Verify street side control works correctly. Push switch to UP posi- tion to raise platform (FIG. 9-2). Then, push switch to DOWN po- sition (FIG. 9-2) to lower platform to the ground. VERIFYING DUAL CONTROL SWITCH FIG. 9-2 © MAXON Lift Corp. 2017...
