- Page 1 Item #32194 3000 LB. ROTISSERIE INSTRUCTIONS...

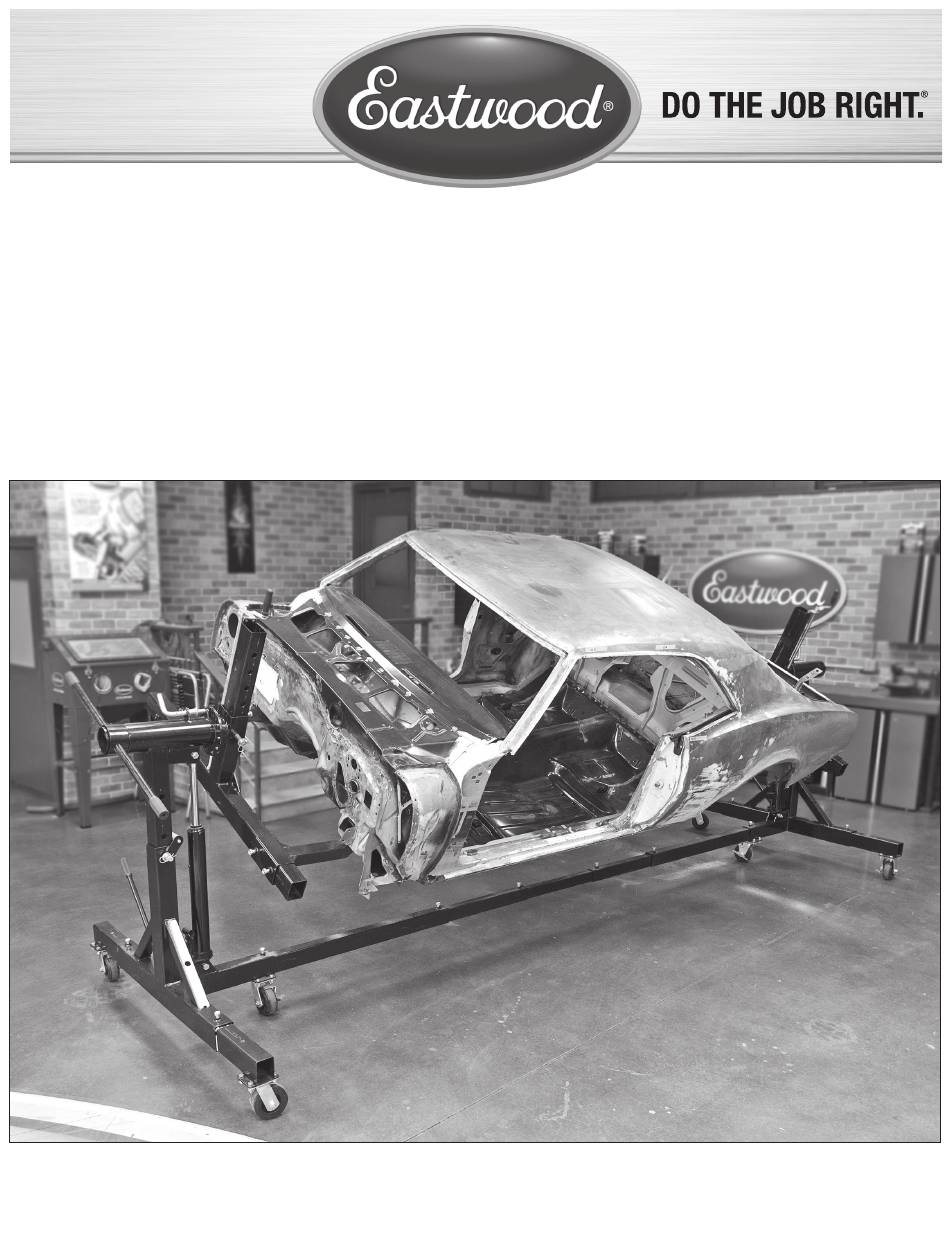

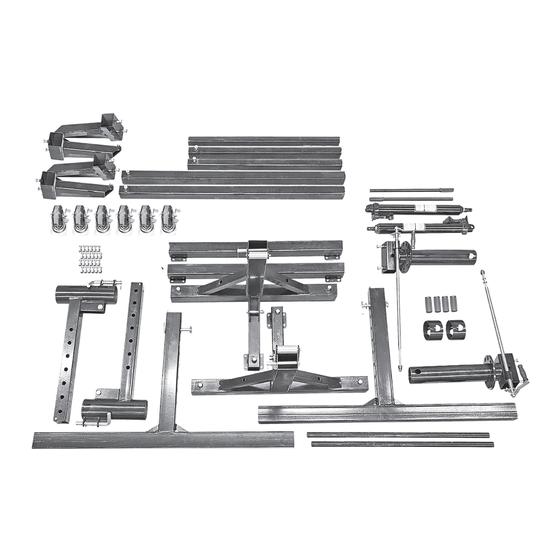

- Page 2 The EASTWOOD ROTISSERIE is built using heavy gauge steel components mounted on six 4” swivel and locking casters to support up to a total loaded weight of 3000lbs. [1360kg.] while offering shop mobility. Low-friction spindle design and fine-tuning height and balance adjustments provide greater safety and ease of use.
-
Page 3: Tools Required
• DO NOT attempt to transport this Rotisserie with a load attached by any hauling method. • DO NOT remove or cover any of the factory supplied labels or warnings! They include specific safety information that must be communicated to future users. To order parts and supplies: 800.343.9353 >> eastwood.com... -
Page 4: Assembly Preparation
ASSEMBLY PREPARATION INJURY HAZARDS! The Eastwood Rotisserie consists of heavy metal components which can cause potentially serious injuries if allowed to drop. Avoid pinching hands while handling parts during assembly. • Obtain the assistance of a helper during assembly. DO NOT attempt to construct this Rotisserie without assistance! •... - Page 5 Main Support Frame [A] at the proper indicated depth at 4” [10cm] from the ends (FIG 4) and tighten clamping screws with a 19mm wrench (not included). FIG. 2 FIG. 3 FIG. 4 To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 6 NOTE: Do Not overtighten or Bearings will bind). Insert Cotter Pin through hole and bend in place. 7. Apply a liberal amount of high-quality synthetic, high-load wheel bearing grease or an anti-seize compound to the Bearings before use. FIG. 7 FIG. 8 Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
- Page 7 Spindle Post [A] then insert the previously removed Lock Pin, Washer and Clip. 6. At this point the assembly should appear as in FIG 12. FIG. 11 FIG. 12 To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 8 Main Support Post [A] with the nearest of the 7 holes in the Spindle Support post [E] then insert the previously removed Lock Pin, Washer and Clip. FIG. 16 " " " " " " " " """" Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
- Page 9 Spindle Rotating Bar [K] (FIG 20). 8. The assembly should appear as in FIG 21. Repeat assembly procedure for opposite end. FIG. 21 FIG. 19 FIG. 20 " " " " To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 10 Lockbolt with a 21mm wrench (not included) to keep Beam from Extension sliding. 5. Apply a liberal amount of high-quality synthetic, high-load wheel bearing grease or an anti-seize compound to the Jackscrew acme threads before use. FIG. 24 Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
- Page 11 2. Once a method for attachment to vehicle body has been determined, tighten the Lockbolts with a 21mm wrench (not included) (FIGS 26 & 27). The Eastwood Rotisserie is now ready for use (FIG 28). FIG. 26 FIG. 27 FIG. 28...
- Page 12 It is strongly recommended that all telescoping Beam connections be tack welded as a safety measure before final use. They can easily be ground away to support a different vehicle for future use (FIG 30). Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
- Page 13 - Attach to suspension mounting points - Attach to bumper mounting points • Fiberglass body vehicles (Corvette, Avanti etc.): - Attach body to specially constructed support frame or structure which is attached to Rotisserie To order parts and supplies: 800.343.9353 >> eastwood.com...
- Page 14 MOUNTING When mounting a vehicle body, the Eastwood Rotisserie should only be used on a flat, level and hard surface preferably indoors. To help keep the Rotisserie free of sanding and grinding debris or paint overspray and maintain appearance, it is advisable to cover or wrap the entire Rotisserie in plastic sheeting.
-
Page 15: Maintenance
• Occasionally inspect all components for potential damage and proper alignment. Check all hardware for tightness. • DO NOT use if damage is discovered. " " " " Lube Lube FIG. 33 Lube To order parts and supplies: 800.343.9353 >> eastwood.com... - Page 16 If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: techelp@eastwood.com PDF version of this manual is available at eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA 800.343.9353 eastwood.com © Copyright 2018 Easthill Group, Inc. 7/18...
