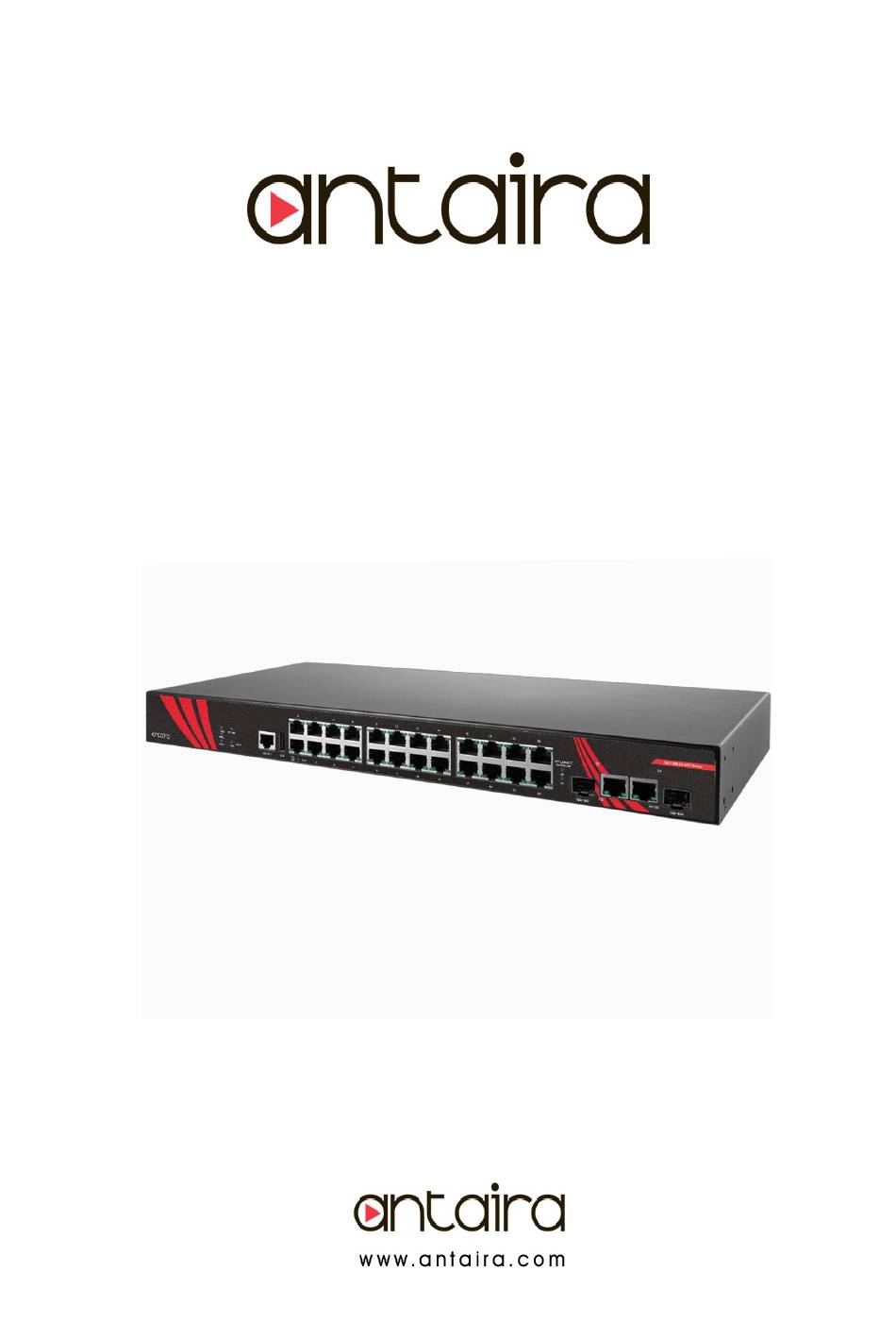

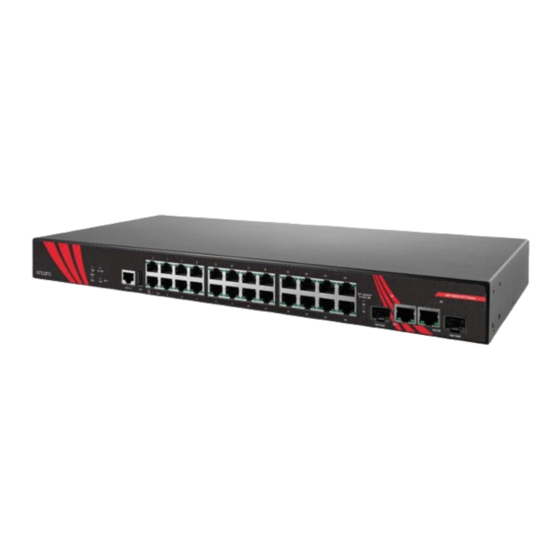

- Page 1 LMP-2602G-SFP Series 26-Port Industrial PoE+ Gigabit Managed Ethernet Switch, with 24*10/100/1000Tx RJ45 (30W/Port) and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP) Hardware Manual Version 1.0 (April 2020)
- Page 2 LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMP-2602G-SFP Series Hardware Manual V1.0 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-2602G-SFP Series Hardware Manual V1.0 Table of Contents 1. Introduction ............... 1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions... -
Page 5: Introduction
RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-2602G-SFP series is designed with IP40 rated 1U 19” rackmount and provides high EFT and ESD protection to prevent any unregulated voltage. Supporting the two wide operating temperature models with the standard version in -10°... -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMP-2602G-SFP Series Hardware Manual V1.0 ➢ IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 1024 group ➢ Supports IPv4/IPv6, RMON, event syslog, DNS, NTP/SNTP, HTTPS, SSH ◼ Port Configuration ➢ Status, statistics, rate limiting, event syslog ◼... - Page 7 Antaira Technologies - Industrial Ethernet Switches LMP-2602G-SFP Series Hardware Manual V1.0 described within this user manual. Warning Labels The caution label means that you should check the certain information on user manual when working with the device. (Shown in Figure 1.1) Figure 1.1 - Caution Label...
-
Page 8: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMP-2602G-SFP Series Hardware Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-2602G-SFP series: (W x D x H) is 440mm x 200mm x 44mm Figure 2.1 LMP-2602G-SFP Series Physical Dimensions... -
Page 9: Front Panel
Figure 2.2 - The Front Panel of LMP-2602G-SFP Series 2.3 Rear Panel Figure 2.3, below, shows the top panel of the LMP-2602G-SFP series switch that is equipped with one 8-connector redundant power inputs (48-55VDC) and one 2-pin terminal block for... -
Page 10: Led Indicators
Flashing Networking is active (Port 25-26) Not connected to network Green Connected to network, 10/100Mbps LAN Port with combo port Flashing Networking is active (Port 25-26) Not connected to network Table 2.1 Table 2.1 - LED Indicators for LMP-2602G-SFP Series... -
Page 11: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMP-2602G-SFP Series Hardware Manual V1.0 2.5 Reset Button There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMP-2602G-SFP Series Hardware Manual V1.0 The following figures shows the 10,100 and 1000 Ethernet RJ-45 pin outs 2.7 Cabling ◼ Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded twisted pair (STP) cable. -
Page 13: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LMP-2602G-SFP Series Hardware Manual V1.0 To remove the LC connector from the transceiver, please follow the steps shown below: Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.8. -
Page 14: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMP-2602G-SFP Series Hardware Manual V1.0 2.9 Grounding Note Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. -
Page 15: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMP-2602G-SFP Series Hardware Manual V1.0 3. Mounting Installation 3.1 Rack Mounting The switch comes with a rack-mounted kit which can be mounted in an EIA standard size, 19-inch rack. It can be placed in a wiring closet with other equipment. -
Page 16: Hardware Installation
LMP-2602G-SFP Series Hardware Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira Technologies’ LMP-2602G-SFP series: 26-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switches with 24*10/100/1000Tx (PSE: 30W/Port) and 2* Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots). -
Page 17: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMP-2602G-SFP Series Hardware Manual V1.0 Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMP-2602G-SFP series: IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3z Gigabit Fiber IEEE 802.3af/at... - Page 18 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
