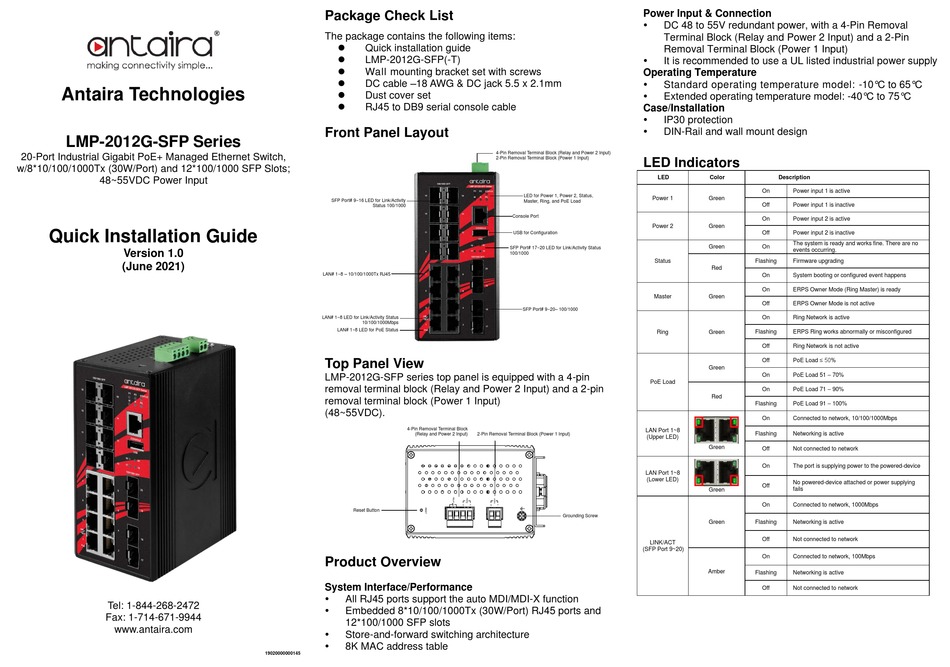

ANTAIRA LMP-2012G-SFP Series Quick Installation Manual

Antaira Technologies

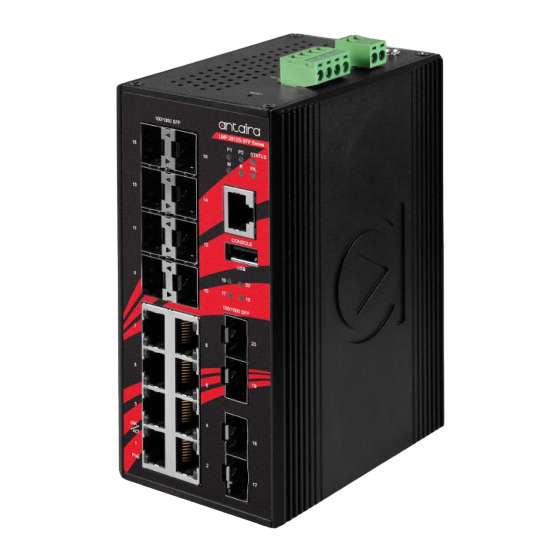

LMP-2012G-SFP Series
20-Port Industrial Gigabit PoE+ Managed Ethernet Switch,
w/8*10/100/1000Tx (30W/Port) and 12*100/1000 SFP Slots;
48~55VDC Power Input
Quick Installation Guide
Version 1.0
(June 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫
Quick installation guide
⚫
LMP-2012G-SFP(-T)
⚫
Wall mounting bracket set with screws
⚫ DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫
Dust cover set
⚫
RJ45 to DB9 serial console cable
Front Panel Layout
SFP Port# 9~16 LED for Link/Activity
Status 100/1000
LAN# 1~8 – 10/100/1000Tx RJ45
LAN# 1~8 LED for Link/Activity Status
10/100/1000Mbps
LAN# 1~8 LED for PoE Status
Top Panel View
LMP-2012G-SFP series top panel is equipped with a 4-pin
removal terminal block (Relay and Power 2 Input) and a 2-pin
removal terminal block (Power 1 Input)
(48~55VDC).
4-Pin Removal Terminal Block
(Relay and Power 2 Input)
Reset Button
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Embedded 8*10/100/1000Tx (30W/Port) RJ45 ports and
12*100/1000 SFP slots

Store-and-forward switching architecture

8K MAC address table
19020000000145
Power Input & Connection


Operating Temperature


Case/Installation


4-Pin Removal Terminal Block (Relay and Power 2 Input)
2-Pin Removal Terminal Block (Power 1 Input) LED Indicators
LED for Power 1, Power 2, Status,
Power 1
Master, Ring, and PoE Load
Console Port
Power 2
USB for Configuration
SFP Port# 17~20 LED for Link/Activity Status
100/1000
Status
Master
SFP Port# 9~20– 100/1000
PoE Load
LAN Port 1~8
2-Pin Removal Terminal Block (Power 1 Input)
(Upper LED)
LAN Port 1~8
(Lower LED)
Grounding Screw
LINK/ACT
(SFP Port 9~20)
DC 48 to 55V redundant power, with a 4-Pin Removal
Terminal Block (Relay and Power 2 Input) and a 2-Pin
Removal Terminal Block (Power 1 Input)
It is recommended to use a UL listed industrial power supply
Standard operating temperature model: -10°C to 65°C
Extended operating temperature model: -40°C to 75°C
IP30 protection
DIN-Rail and wall mount design
LED Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
The system is ready and works fine. There are no
Green On
events occurring.
Flashing Firmware upgrading
Red
On System booting or configured event happens
On ERPS Owner Mode (Ring Master) is ready
Green
Off ERPS Owner Mode is not active
On Ring Network is active
Flashing ERPS Ring works abnormally or misconfigured
Ring Green
Off Ring Network is not active
PoE Load ≤ 50%
Off
Green
PoE Load 51 – 70%
On
PoE Load 71 – 90%
On
Red
PoE Load 91 – 100%
Flashing
On Connected to network, 10/100/1000Mbps
Flashing Networking is active
Green
Off Not connected to network
On The port is supplying power to the powered-device
No powered-device attached or power supplying
Off
fails
Green
On Connected to network, 1000Mbps
Green Flashing Networking is active
Off Not connected to network
On Connected to network, 100Mbps
Amber
Flashing Networking is active
Off Not connected to network
