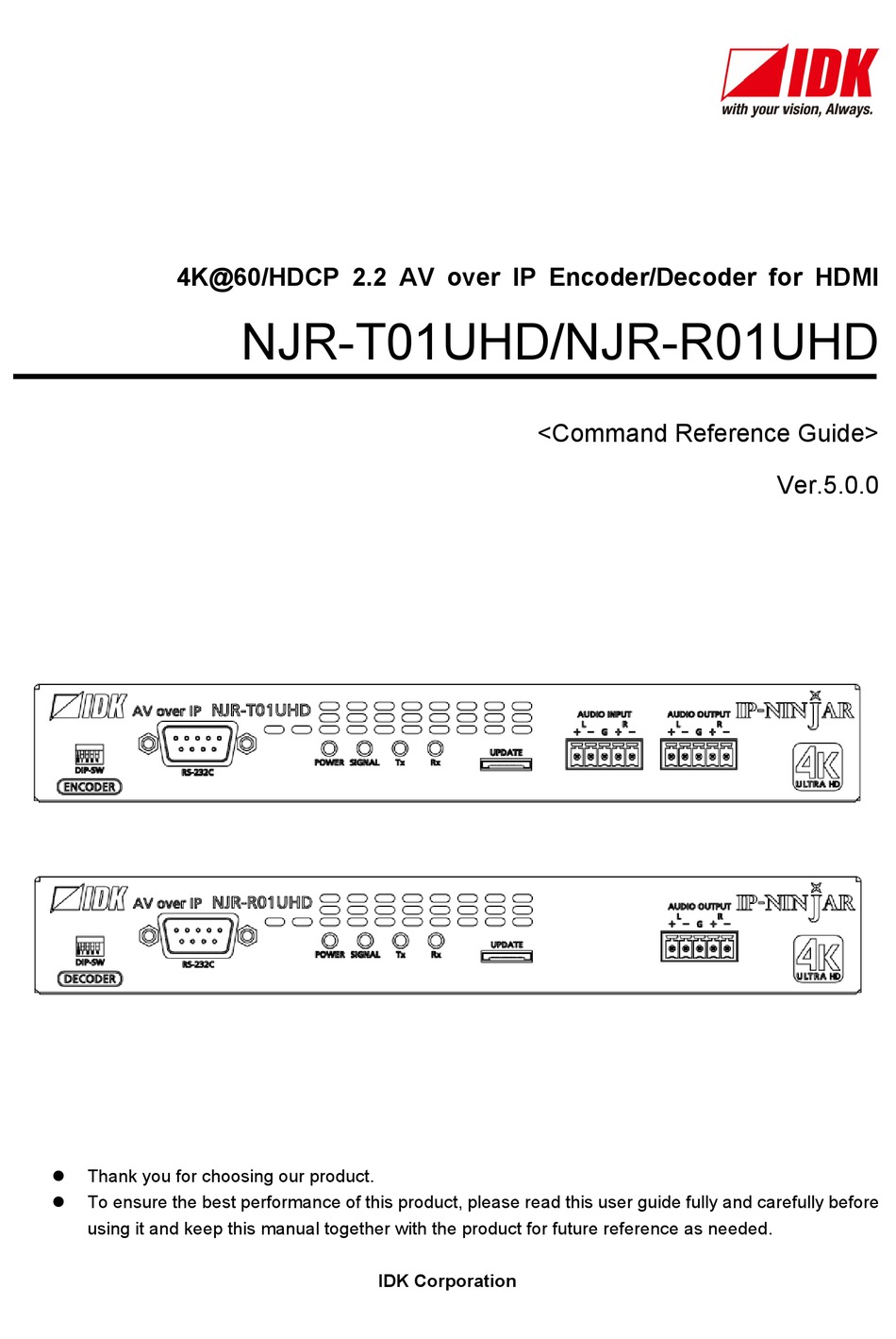

4K@60/HDCP 2.2 AV over IP Encoder/Decoder for HDMI
Thank you for choosing our product.
To ensure the best performance of this product, please read this user guide fully and carefully before
using it and keep this manual together with the product for future reference as needed.
NJR-T01UHD/NJR-R01UHD
IDK Corporation
<Command Reference Guide>
Ver.5.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NJR-T01UHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDK NJR-T01UHD

Summary of Contents for IDK NJR-T01UHD

  • Page 1 4K@60/HDCP 2.2 AV over IP Encoder/Decoder for HDMI NJR-T01UHD/NJR-R01UHD <Command Reference Guide> Ver.5.0.0 Thank you for choosing our product.  To ensure the best performance of this product, please read this user guide fully and carefully before  using it and keep this manual together with the product for future reference as needed.
  • Page 2 HDMI Licensing Administrator, Inc. in the United States and other countries.  Connection Reset and IP-NINJAR are registered trademarks of IDK Corporation in Japan.  All other company and product names mentioned in this manual are either registered trademarks or...
  • Page 3  Some information contained in this User guide such as exact product appearance, communication commands, and so on may differ depending on the product version.  This User guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...

  • Page 4: Table Of Contents

    NJR-T01UHD/NJR-R01UHD Command Guide Table of Contents How to read this Guide ..........................5 About this Guide ............................5 Communication configuration and Specifications ..................6 RS-232C communication ........................6 3.1.1 Setting up of RS-232C communication ..................6 3.1.2 RS-232C connector specification ....................7 3.1.3...

  • Page 5: How To Read This Guide

    NJR-T01UHD/NJR-R01UHD Command Guide 1 How to read this Guide This guide contains the procedure for commanding NJR-T01UHD and NJR-R01UHD via RS-232C communication or LAN communication. If other IP-NINJAR series products are connected, refer to each User Guide. 2 About this Guide This guide contains the procedure for controlling NJR-01UHD using commands via RS-232C communication or LAN communication.

  • Page 6: Communication Configuration And Specifications

    DIP switch (No.1) 　Setting the internal connection of RS-232C connector NJR-T01UHD and NJR-R01UHD are connected. ： 　　OFF Connected to CPU of NJR-T01UHD, and NJR-T01UHD can be set. ： 　　ON 　　　　　　　　　　　　　　or Connected to CPU of NJR-R01UHD, and NJR-R01UHD can be set.

  • Page 7: Rs-232C Connector Specification

    NJR-T01UHD/NJR-R01UHD Command Guide 3.1.2 RS-232C connector specification ■ Fiber optic model NJR-01UHD Control device Pin No. Signal name Signal name RS-232C connector Cross cable N.C. (Not Connected)* 　　 N.C. (Receive Data) 　　 RD (Transmit Data) 　　 TD N.C. (Not Connected)* 　　...

  • Page 8: Rs-232C Communication Specification

    NJR-T01UHD/NJR-R01UHD Command Guide 3.1.3 RS-232C communication specification There are two RS-232C modes: control mode (setting NJR) and communication mode (controlling peripheral devices). Values for the former mode are fixed as follows and cannot be changed; values for the latter mode are settable.

  • Page 9: Lan Communication

    Audio A: Analog audio Step (2) DIP switch DIP switch Step(1) (No.1) (No.1) LAN cable PC for control Step(3) Communication PCs can control both NJR-T01UHD and NJR-R01UHD by connecting to either NJR-T01UHD or NJR-R01UHD. command [Fig. 3.3] Setting LAN communication...
  • Page 10 NJR-T01UHD/NJR-R01UHD Command Guide ① ② ④ ③ ① For entering the desired command ② For sending the command to NJR-T01UHD or NJR-R01UHD ③ For displaying the log ④ For deleting the log [Fig. 3.4] Command input from Maintenance page...

  • Page 11: Lan Connector Specification

    NJR-T01UHD/NJR-R01UHD Command Guide 3.2.2 LAN connector specification LAN connector assignment is as follows. Since Auto MDI/MDI-X that distinguishes and switches straight/cross cables automatically is supported, extra care is not necessary to connect the NJR-01UHD to PC, HUB or the like.

  • Page 12: Controlled By Njr-Ctb

    NJR-T01UHD NJR-R01UHD The LAN connector of NJR-CTB should be connected to the LAN connector of NJR-T01UHD/NJR-R01UHD or the 10 GbE switch. PC for control should be connected to the MAINTENANCE connector of NJR-CTB or the LAN connector of NJR-T01UHD/NJR-R01UHD. [Fig. 3.6] Controlled by NJR-CTB...

  • Page 13: Connecting Lan Cable

    *A broadcast storm occurs when a network is overwhelmed by continuous broadcast traffic resulting in a network meltdown. During installation, it is important to avoid the creation of network loops. Contact IDK if you require assistance with network implementation.

  • Page 14: Command

    NJR-T01UHD/NJR-R01UHD Command Guide 4 Command 4.1 Summary A command consists of “@” (“40” in hexadecimal), 3 or 4 one-byte alphabetical characters (upper and lower cases) followed by parameters (one-byte numbers). For some commands, multiple parameter values can be specified. Processing is executed by sending a delimiter at the end of the command.

  • Page 15: Command List

    NJR-T01UHD/NJR-R01UHD Command Guide 4.2 Command list ■ Error status Command Function Page @ERR Error status ■ Setting input Command Function Page @GDT / @SDT No-signal input monitoring @GHE / @SHE HDCP input enabled/disabled ■ Setting output Command Function Page @GDM / @SDM...
  • Page 16 NJR-T01UHD/NJR-R01UHD Command Guide ■ Information Command Function Page @GSS I/O status @GES Monitor’s EDID @GIV Version...

  • Page 17: Setting Items

    NJR-T01UHD/NJR-R01UHD Command Guide 4.3 Setting items Some setting items can be controlled via commands/GUI operation; the others cannot be controlled. [Table 4.1] Available setting method Command: Command input, GUI: GUI operation, WEB&C: WEB browser and command input, No: Not supported, -: N/A...

  • Page 18: Parameter Input Format

    4.4 Parameter input format Parameter input formats are common for each setting. If a command is input from the RS-232C connector of NJR-T01UHD/NJR-R01UHD or from the LAN connector using the IP-NINJAR Configurator (Software for setting IP-NINJAR), “1” (fixed) is specified to “ch” (channel) because only one NJR-T01UHD/NJR-R01UHD can be controlled.
  • Page 19 NJR-T01UHD/NJR-R01UHD Command Guide Input channel1 Output channel1 Cable for extension NJR-R01UHD NJR-T01UHD @SAM,2,1,1,1 Input channel64 Output channel64 NJR-R01UHD NJR-T01UHD 10 GbE switch @SAM,1,64,1,1 LAN cable LAN cable PC for control NJR-CTB [Fig. 4.3] Command input from NJR-CTB...

  • Page 20: Details Of Commands

    NJR-T01UHD/NJR-R01UHD Command Guide 4.5 Details of commands 4.5.1 Error status @ERR Error status Format Return value only Return value @ERR, error Parameter error: Error status 1 = Erroneous parameter format or value 2 = Undefined command or wrong format 3 = Currently cannot be used.

  • Page 21: Basic Setting

    “1” fixed ch: Input channel 1 to 512 = Input channel 1 to Input channel 512 If a command is input from the RS-232C connector of NJR-T01UHD or from the IP-NINJAR Configurator, “1” is set (fixed). port: Input connector “1” fixed time: No-signal input monitoring 0 = OFF, 2000 to 15000 = 2 sec.
  • Page 22 NJR-T01UHD/NJR-R01UHD Command Guide @GHE / @SHE HDCP input enabled/disabled Function Getting Setting Format @GHE, device, ch, port @SHE, device, ch, port, hdcp Return value @GHE, device, ch, port, hdcp @SHE, device, ch, port, hdcp Parameter device: Model “1” fixed ch: Input channel...

  • Page 23: Setting Output

    NJR-T01UHD: mode_1 = Output connector for extension, mode_2 = HDMI output connector NJR-R01UHD: mode_1 = HDMI output connector Example Getting the output mode of NJR-T01UHD Channel 1 @GDM,1,1,1 @GDM,1,1,1,0,4 Output connector for extension : AUTO, HDMI output connector : YCbCr4:4:4 output...
  • Page 24 1 = ALWAYS [Default], 2 = HDCP INPUT ONLY, 3 = HDCP 2.2 Example Getting the HDCP output of NJR-R01UHD Channel 1 @GEN,2,1,1 @GEN,2,1,1,1 ALWAYS @SEN,2,1,1,2 Setting the HDCP output of NJR-R01UHD Channel 1 to HDCP INPUT ONLY Completed @SEN,2,1,1,2 Remarks The NJR-T01UHD does not support this command.
  • Page 25 @SHM, device, ch, port, time Parameter device: Model 1 = NJR-T01UHD, 2 = NJR-R01UHD ch: Channel 1 to 512 = Input channel 1 to Input channel 512 If a command is input from the RS-232C connector of NJR-01UHD or from the IP-NINJAR Configurator, “1”...

  • Page 26: Setting Audio

    “1” fixed mute: Audio mute 0 = Mute OFF [Default], 1 = Mute ON Example @GAM,1,1,1 Getting the audio mute of NJR-T01UHD Channel 1 @GAM,1,1,1,0 @SAM,1,1,1,0 Setting the audio mute of NJR-T01UHD Channel 1 to OFF Completed @SAM,1,1,1,0 Remarks －...
  • Page 27 @SAAS,2,1,1,0,1 Setting analog input audio to be output from the analog audio output connector of Channel 1 @SAAS,2,1,1,0,1 Completed Remarks The NJR-T01UHD does not support this command. This command can be input only via the NJR-CTB command server.

  • Page 28: Setting Edid

    “1” static ch: Input channel 1 to 512 = Input channel 1 to Input channel 512 If a command is input from the RS-232C connector of NJR-T01UHD or from the IP-NINJAR Configurator, “1” is set (fixed). port: Input connector “1” fixed...
  • Page 29 “1” fixed ch: Input channel 1 to 512 = Input channel 1 to Input channel 512 If a command is input from the RS-232C connector of NJR-T01UHD or from the IP-NINJAR Configurator, “1” is set (fixed). reserved: Reservation “1” fixed number : Destination of the copied data to save “0”...
  • Page 30 “1” fixed ch: Input channel 1 to 512 = Input channel 1 to Input channel 512 If a command is input from the RS-232C connector of NJR-T01UHD or from the IP-NINJAR Configurator, “1” is set (fixed). port: Input connector “1” fixed...
  • Page 31 “1” fixed ch: Input channel 1 to 512 = Input channel 1 to Input channel 512 If a command is input from the RS-232C connector of NJR-T01UHD or from the IP-NINJAR Configurator, “1” is set (fixed). port: Input connector “1” fixed...
  • Page 32 “1” fixed ch: Input channel 1 to 512 = Input channel 1 to Input channel 512 If a command is input from the RS-232C connector of NJR-T01UHD or from the IP-NINJAR Configurator, “1” is set (fixed). port: Input connector “1” fixed...
  • Page 33 NJR-T01UHD/NJR-R01UHD Command Guide @GSP / @SSP Speaker configuration (Cont’d) Parameter Getting commands : the number of speakers and which speakers will be used is returned Setting commands : if you do not specify the speaker configuration, the following configuration will be applied depending on the set number of...

  • Page 34: Setting Rs-232C

    @SCTB, device, ch, reserved, baudrate, databit, stopbit, parity databit, stopbit, parity Parameter device: Model 1 = NJR-T01UHD, 2 = NJR-R01UHD ch: Channel 1 to 512 = Input channel 1 to Input channel 512 reserved: Reservation “1” fixed baudrate: Baud rate...

  • Page 35: Setting Lan

    @GIP, device, ch, reserved, mode, ip, @SIP, device, ch, reserved, mode, ip, mask, gateway mask, gateway Parameter device: Model 1 = NJR-T01UHD, 2 = NJR-R01UHD ch: Channel 1 to 512 = Input channel 1 to Input channel 512 reserved: Reservation “1” fixed mode: Mode 0 = Automatic (DHCP) [Default], 1 = static “0”...
  • Page 36 @GMC, device, ch, reserved Return value @GMC, device, ch, reserved, mac Parameter device: Model 1 = NJR-T01UHD, 2 = NJR-R01UHD ch: Channel 1 to 512 = Input channel 1 to Input channel 512 reserved: Reservation “1” fixed mac: MAC address...

  • Page 37: Advanced Setting

    0 = All channels, 1 to 512 = Input channel 1 to Input channel 512 reserved: Reservation “1” fixed Example @CLRC,1,2,1 Initializing settings of the NJR-T01UHD Channel 2 Completed @CLRC,1,2,1 Remarks This command can be input only via the NJR-CTB command server.

  • Page 38: Information

    @GSS, device, ch, port, mode, status_1 (, status_2, status_3･･･) Parameter device: Model 1 = NJR-T01UHD, 2 = NJR-R01UHD ch: Channel 1 to 512 = Input channel 1 to Input channel 512 If a command is input from the RS-232C connector of NJR-01UHD or from the IP-NINJAR Configurator, “1”...
  • Page 39 LPCM signal is input, which returns the sampling frequency. COMPRESSED Compressed audio signal (such as Dolby Digital and AUDIO DTS) is input (Because the NJR-T01UHD does not recognize detailed formats, “COMPRESSED AUDIO” is sent to all compressed audios). NO AUDIO NO signal is input.
  • Page 40 No sink device is connected. HDCP is being authenticated. HDCP authentication failed Example @GSS,1,1,1,0 Getting all input statuses of NJR-T01UHD Channel 1 @GSS,1,1,1,0,H30,1920 x 1080p 60Hz, - Input signal type : 30-BIT COLOR LINEAR PCM 48kHz, HDCP 1.4 ON HDMI signal...
  • Page 41 @GES, device, ch, port, mode, status_1 (, status_2, status_3･･･) Parameter device: Model 1 = NJR-T01UHD, 2 = NJR-R01UHD ch: Output channel 1 to 512 = Output channel1 to Ouputchannel512 If a command is input from the RS-232C connector of NJR-01UHD or from the IP-NINJAR Configurator, “1”...
  • Page 42 @GIV, device, ch, reserved, id, ver Parameter device: Model 1 = NJR-T01UHD, 2 = NJR-R01UHD ch: Channel 1 to 512 = Input channel 1 to Input channel 512 If a command is input from the RS-232C connector of NJR-01UHD or from the IP-NINJAR Configurator, “1”...
  • Page 43 NJR-T01UHD/NJR-R01UHD Command Guide User guide (Command Guide) of NJR-T01UHD/NJR-R01UHD Ver.5.0.0 Revised on: 17 March 2020 Headquarters IDK Corporation 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-200-0764 FAX: +81-46-200-0765 Email: idk_eng@idk.co.jp URL: http://www.idkav.com IDK America Inc. 72 Grays Bridge Road Suite 1-C, Brookfield, CT 06804 TEL: +1-203-204-2445 Email: sales@idkav.com URL:...
