Thank you for choosing our product.
To ensure the best performance of this product, please read this user guide fully and carefully before
using it and keep this manual together with the product for future reference as needed.
4K@60/HDCP 2.2 Multi-window Processor
IDK Corporation
ICP-401UHD
<User Guide>
Ver.1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICP-401UHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDK ICP-401UHD

Summary of Contents for IDK ICP-401UHD

  • Page 1: User Guide

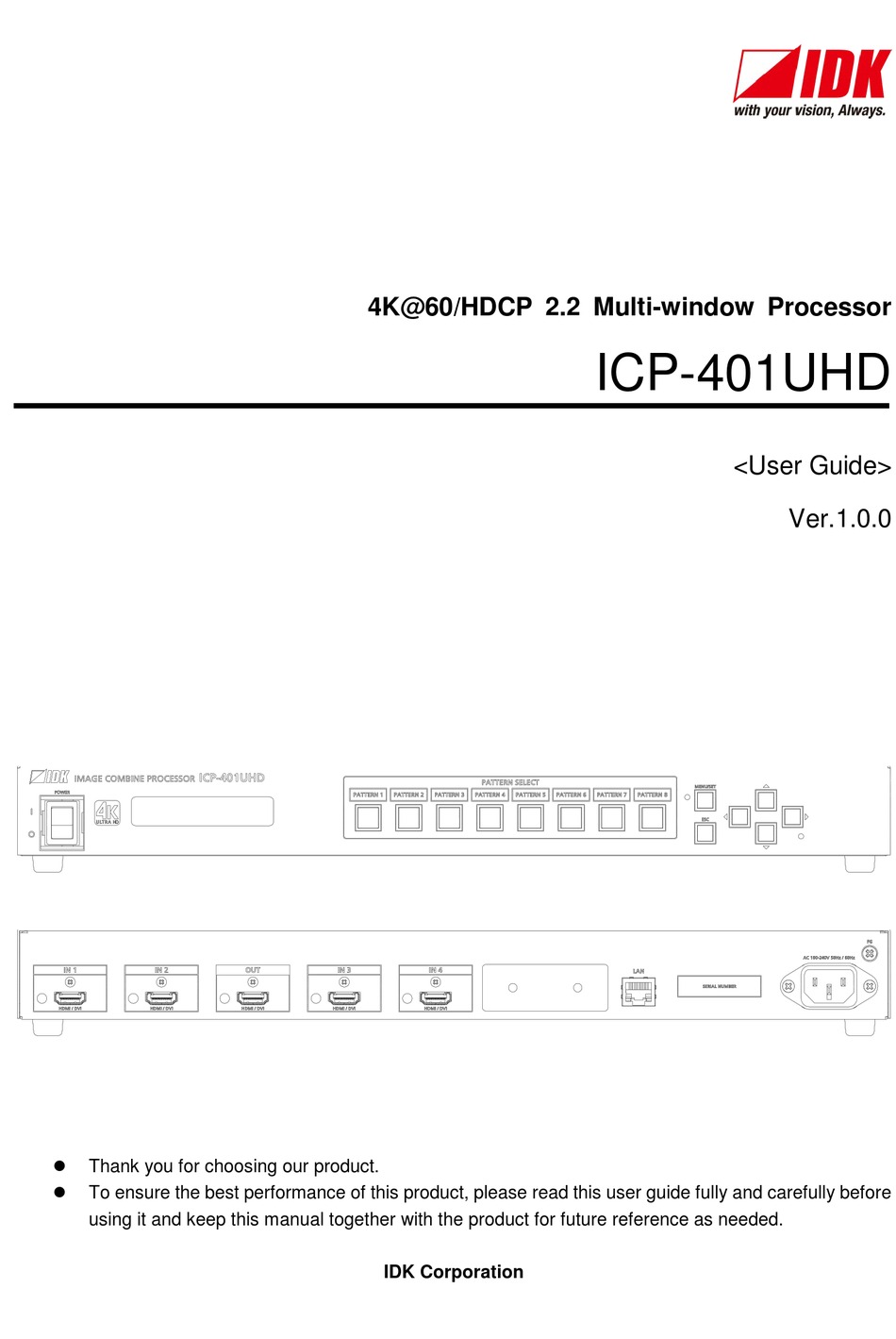

    4K@60/HDCP 2.2 Multi-window Processor ICP-401UHD <User Guide> Ver.1.0.0  Thank you for choosing our product.  To ensure the best performance of this product, please read this user guide fully and carefully before using it and keep this manual together with the product for future reference as needed.
  • Page 2  Oracle and Java are trademarks of Oracle Corporation its subsidiaries, and affiliated companies in the United States and other countries.  The terms Anti-snow and Connection Reset are registered trademarks of IDK Corporation in Japan.  All other company and product names mentioned in this manual are either registered trademarks or...
  • Page 3  Some information contained in this User guide such as exact product appearance, diagrams, menu operations, communication commands, and so on may differ depending on the product version.  This User guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...

  • Page 4: Safety Instructions

    ICP-401UHD User Guide Safety Instructions Read and understand all safety and operating instructions before using this product. Follow all instructions and cautions as detailed in this document. Enforcement Symbol Description Indicates the presence of a hazard that may result in death or serious...
  • Page 5 ● Do not repair, modify or disassemble. Since the product includes circuitry that uses potentially lethal, high voltage levels, disassembly by unauthorized personnel may lead to the risk of fire or electric shock. For internal inspection or repair, contact your IDK Do not representative.
  • Page 6 Unplug If you continue to use the product under these conditions, it may increase the risk of electrical shock or fire. For maintenance and repair, contact your IDK representative. ● Unplug immediately if water or other objects are directed inside.
  • Page 7 ICP-401UHD User Guide Caution ■ For installing and connecting products: ● Do not place the product in a location where it will be subjected to high temperatures. If the product is subjected to direct sunlight or high temperatures while under operation, it may affect the product’s performance and reliability and may increase the risk of fire.

  • Page 8: Table Of Contents

    ICP-401UHD User Guide Table of Contents Included items ............................11 Product outline ............................12 Features ..............................13 Panels ..............................14 Front/side panels ..........................14 Rear panel ............................15 System Configuration Example........................ 16 Precautions .............................. 17 Installation ............................17 Cabling ..............................18 6.2.1...
  • Page 9 ICP-401UHD User Guide 8.5.2 Saving window layout pattern ....................47 8.5.3 Editing window layout pattern name ..................48 8.5.4 Linking Window layout pattern and preset memory ..............48 8.5.5 Window pattern at startup ......................48 Output setting ............................49 8.6.1 Output mode ..........................
  • Page 10 ICP-401UHD User Guide 10 Troubleshooting ............................76...

  • Page 11: Included Items

    ICP-401UHD User Guide 1 Included items Ensure that all items illustrated below are included in the package. If any items are missing or damaged, please contact IDK. One (1) ICP-401UHD Two (2) rack mounting brackets Six (6) M4 screws One (1) power cord, 5.9 ft. (1.8 m) Five (5) Cable clamps [Fig.

  • Page 12: Product Outline

    The ICP-401UHD 4K@60 is a multi-window processor that simultaneously displays up to four images on a single screen with any layout setup. Up to four input sources are supported via HDMI inputs. The ICP-401UHD can be operated as a truly seamless switcher with four inputs and one output in single-window display mode.

  • Page 13: Features

    ICP-401UHD User Guide 3 Features ICP-401UHD Up to 98 ft. (30 m) Scan Video Up to 98 ft. (30 m) Digital video/audio Output Digital video/audio combination converter HDMI　DVI　 Inputs HDMI　DVI EDID emulator Audio switch Maximum transmission distances 98 ft. (30 m): 1080p@60 39 ft.

  • Page 14: Panels

    ICP-401UHD User Guide 4 Panels 4.1 Front/side panels Menu operation keys ② ④ ⑥ ● Front panel ① ③ ⑤ ● Side panel (left) ● Side panel (right) ⑦ ⑦ (cooling fan) [Fig. 4.1] Front/side panel drawings [Table 4.1] Front/side panel features...

  • Page 15: Rear Panel

    ICP-401UHD User Guide 4.2 Rear panel ② ③ ④ ⑤ ① [Fig. 4.2] Rear panel drawing [Table 4.2] Rear panel features Feature Description ① HDMI input connectors Input connectors for HDMI and DVI signals, interface with source devices such as Blu-ray players.

  • Page 16: System Configuration Example

    ICP-401UHD User Guide 5 System Configuration Example Example: The ICP receives video signals that are output from the FDX-32UHD and outputs them as follows: HDMI/DVI 4 chs ICP-401UHD 4K monitor 4 chs HDMI/DVI HDMI/DVI ICP-401UHD 4K monitor HDMI/DVI 4 chs...

  • Page 17: Precautions

    ICP-401UHD User Guide 6 Precautions Before connecting to external devices, follow the precautions below. 6.1 Installation When installing the ICP, please observe the following precautions. ・ Do not block vent holes. To provide adequate ventilation, maintain sufficient clearances around the ICP (1.2 in.

  • Page 18: Cabling

    ICP-401UHD User Guide 6.2 Cabling When connecting the ICP to external devices, please observe the following precautions. ・ Read manuals for the external devices. ・ Before you connecting cables to the ICP or an external device, dissipate static electricity by touching grounded metal such as racks before handling signal cables.

  • Page 19: Cables

    ICP-401UHD User Guide 6.2.1 Cables Use the correct HDMI cable or HDMI-DVI conversion cable depending on the system configuration. For 4K format video, the maximum TMDS data rate (transmission speed) is 18 Gbps. If a high-speed HDMI cable that supports up to 10.2 Gbps rate is used, video cannot be displayed stably. Select an appropriate 18 Gbps high-speed cable depending on the 4K format.

  • Page 20: Basic Operation

    ICP-401UHD User Guide 7 Basic Operation 7.1 Power up period After powering on the ICP from a power-off condition, there is a short initialization delay before the WEB browser is fully operational and before the first communication command can be received and executed.

  • Page 21: Menu Operation

    ICP-401UHD User Guide 7.3 Menu operation You can use the VFD screen and front panel keys to view and control settings. Press the “MENU/SET” key to apply settings and to change the menu level. Press the “ESC” key to go back to the previous screen.

  • Page 22: Cropping And Positioning Input Video

    ICP-401UHD User Guide 7.4 Cropping and Positioning input video Input video can be cropped and the cropped image can be displayed by setting input timing, window and output timing. 1. Input timing Sets starting position, size, and aspect ratio of the input image.
  • Page 23 ICP-401UHD User Guide “%” is used for those settings except for aspect ratio. Those settings can be set by 0.01% based on video and window sizes. -100.00% 0.00% -100.00% 100.00% 100.00% [Fig. 7.4] Cropping and positioning...

  • Page 24: Locking/Unlocking Front Key Function

    ICP-401UHD User Guide 7.5 Locking/unlocking front key function Press and hold the “ESC” key for two seconds or longer to lock or unlock the desired key function. You will hear a beep tone and then one of the following messages is displayed for one second.

  • Page 25: Initialization

    ICP-401UHD User Guide 7.6 Initialization All settings will be reset to factory default values by powering on the ICP while pressing the “ESC” key. Press and hold the “ESC” key until you hear a long beep sound. Note that after returning to factory default, the previous setting values cannot be restored.
  • Page 26 ICP-401UHD User Guide [2/4] Menu Factory default WINDOW SETTING (Cont’d) WINDOW ENABLE Each input channel P.45 Default ― WINDOW FADE OUT-IN P.46 Default PATTERN MEMORY ― PATTERN LOAD P.47 ― Default ― PATTERN SAVE P.47 ― Default ― PATTERN EDIT P.48...
  • Page 27 ICP-401UHD User Guide [3/4] Menu Factory default AUDIO ― AUDIO MUTE P.56 Default INPUT LEVEL Each input channel P.56 Default ― OUTPUT LEVEL P.56 Default ― AUDIO SELECT P.57 Default AUTO ― TEST TONE P.57 Default EDID EDID DATA Each input channel P.59...
  • Page 28 ICP-401UHD User Guide [4/4] Menu Factory default OTHERS OPERATION LOCK MENU, PATTERN P.68 Default LOCK ― BUZZER P.69 Default ― POWER SAVE P.69 Default ― CEC LINK P.69 Default ― TOP DISPLAY P.70 Default ― INPUT STATUS P.71 ― Default ―...

  • Page 29: Control From Web Browser

    JavaScript is used for the ICP WEB browser. When you set the ICP from WEB browser menu, enable JavaScript before setting up. Refer to each browser’s help menu if you do not know how to enable JavaScript. Tip: IDK tests the ICP under the following environment: : Windows 7 Professional WEB browser : Microsoft Internet Explorer 11...

  • Page 30: Web Menu

    ICP-401UHD User Guide 7.7.1 WEB menu Sub menu Menu [Fig. 7.7] WEB menu ① Select the desired item from the menu to display setting items in the submenu. ② Set items in the submenu by referring to the table below.

  • Page 31: Operations Can Be Set Only From Web Menu

    ICP-401UHD User Guide 7.7.2 Operations can be set only from WEB menu The following settings can be set only from WEB menu: ・ Editing names of displayed item ・ Updating WEB browser ・ Backing up and restoring all settings ■ Editing names of displayed items...
  • Page 32 ICP-401UHD User Guide ■ Refreshing WEB browser Manually : Click the [NOW] button on [UPDATE]. Automatically : Set [UPDATE INTERVAL] to [ON] and specify the desired interval (1 to 100 sec by 1 sec). To disable the automatic updating feature, set [UPDATE INTERVAL] to [OFF] (set by default).

  • Page 33: Menu

    ICP-401UHD User Guide 8 Menu 8.1 Menu list Menu tree structure for the ICP ├─Main menu │ ├─Sub menu │ ├─ ICP-401UHD │ │ │/＊8.2 Input setting＊/ │/＊8.5 Pattern memory＊/ ├─INPUT SETTING ├─PATTERN MEMORY │ ├─INPUT SIGNAL CHECK │ ├─PATTERN LOAD │...
  • Page 34 ICP-401UHD User Guide │ │ │/＊8.8 Audio setting＊/ │/＊8.11 Preset memory＊/ ├─AUDIO ├─PRESET MEMORY │ ├─AUDIO MUTE │ ├─PRESET LOAD │ ├─INPUT LEVEL │ ├─PRESET SAVE │ ├─OUTPUT LEVEL │ ├─PRESET EDIT │ ├─AUDIO SELECT │ └─PRESET START UP │ └─TEST TONE │...

  • Page 35: Input Setting

    ICP-401UHD User Guide 8.2 Input setting 8.2.1 No-signal input monitoring Menu Top→INPUT SETTING→INPUT SIGNAL CHECK Setting for Each input channel Setting value OFF, 3Sec to 15Sec (by 1Sec) [Default] 10Sec If you change the EDID settings of the ICP or power the ICP off/on, the source device may not output a video signal.

  • Page 36: Hdcp Input Setting

    ICP-401UHD User Guide 8.2.2 HDCP input setting Menu Top→INPUT SETTING→INPUT HDCP Setting for ALL, each input channel Setting value ・HDCP 2.2 : Supports HDCP 2.2 and HDCP 1.4 [Default] ・HDCP 1.4 : Supports HDCP 1.4 ・DISABLE : Not support HDCP Some source devices negotiate with the connected device to determine if it supports HDCP encryption.

  • Page 37: Input Timing

    ICP-401UHD User Guide 8.3 Input timing 8.3.1 Start position Menu Top→INPUT TIMING→INPUT POSITION Setting for Each input channel Setting value H : 0.00% to 100.00% (by 0.01%) [Default] 0.00% V : 0.00% to 100.00% (by 0.01%) [Default] 0.00% You can set the horizontal/vertical starting position.

  • Page 38: Aspect Ratio

    ICP-401UHD User Guide 8.3.3 Aspect ratio Menu Top→INPUT TIMING→INPUT ASPECT Setting for Each input channel Setting value ・AUTO [Default] ・16:10 ・FULL ・16:9 LETTER BOX ・4:3 ・64:27 ・5:3 ・256:135 ・5:4 ・FINE ・16:9 You can set the aspect ratio for each video input.

  • Page 39: Brightness

    ICP-401UHD User Guide 8.3.5 Brightness Menu Top→INPUT TIMING→INPUT BRIGHTNESS Setting for Each input channel Setting value 0% to 200% [Default] 100% You can set the brightness level for each input signal. 8.3.6 Blank color Menu Top→INPUT TIMING→INPUT BLANK COLOR Setting for...

  • Page 40: Window Setting

    ICP-401UHD User Guide 8.4 Window setting 8.4.1 Window position Menu Top→WINDOW SETTING→WINDOW POSITION Setting for Each input channel Setting value H : 0.00% to 100.00% (by 0.01%) [Default] 0.00% V : 0.00% to 100.00% (by 0.01%) [Default] 0.00% You can set the window display position.

  • Page 41: Window's Video Start Position

    ICP-401UHD User Guide 8.4.3 Window’s video start position Menu Top→WINDOW SETTING→VIEW POSITION Setting for Each input channel Setting value H : -400.00% to 400.00% (by 0.01%) [Default] 0.00% V : -400.00% to 400.00% (by 0.01%) [Default] 0.00% You can set the horizontal and vertical window’ video start positions based on the original video size (100%), and it starts from the upper left.

  • Page 42: Window Background Color

    ICP-401UHD User Guide 8.4.5 Window background color Menu Top→WINDOW SETTING→WINDOW BACKGROUND Setting for ALL, Each input channel Setting value R/G/B: 0 to 255 [Default] R/G/B: 0 (Black) You can set the window background color. Select “A” in the front panel to change the settings of “R” (leftmost), “G” and “B” relatively from the current setting values.

  • Page 43: Window Layer Order

    ICP-401UHD User Guide 8.4.6 Window layer order Menu Top→WINDOW SETTING→WINDOW PRIORITY ・Priority 1 (Front) IN1 to IN4 [Default] IN1 Setting value ・Priority 2 IN1 to IN4 [Default] IN2 ・Priority 3 IN1 to IN4 [Default] IN3 ・Priority 4 (Back) IN1 to IN4 [Default] IN4 You can set the window layer order.

  • Page 44: Swapping Window Setting

    ICP-401UHD User Guide 8.4.7 Swapping window setting Menu Top→WINDOW SETTING→WINDOW SWAP ・IN1 : 1 to 4 [Default] 1 Setting value ・IN2 : 1 to 4 [Default] 2 ・IN3 : 1 to 4 [Default] 3 ・IN4 : 1 to 4 [Default] 4 You can swap window settings.

  • Page 45: Editing Window Overlay Titling

    ICP-401UHD User Guide 8.4.9 Editing window overlay titling Menu Top→WINDOW SETTING→CAPTION STRING Setting for Each input channel Setting value Title [Default] INPUT1, INPUT2, INPUT3, INPUT4 You can name the title using up to 16 characters x 2 lines in ASCII codes (0x20 to 0x7D).

  • Page 46: Window Transition Effect

    ICP-401UHD User Guide 8.4.11 Window transition effect Menu Top→WINDOW SETTING→WINDOW FADE OUT-IN Setting value OFF : Cut [Default] ON : Fade out/in You can select either a cut or fade effect. Note: If selecting “OFF (Cut)”, PATTERN 1 to PATTERN 4 are switched with a black frame while PATTERN 5 to...

  • Page 47: Pattern Memory

    ICP-401UHD User Guide 8.5 Pattern memory 8.5.1 Recalling window layout pattern Menu Top→PATTERN MEMORY→PATTERN LOAD Setting value 01 to 32: Pattern memory 1 to 32 You can recall a window pattern that is registered in the pattern memory. Press the MENU/SET key to apply setting.

  • Page 48: Editing Window Layout Pattern Name

    ICP-401UHD User Guide 8.5.3 Editing window layout pattern name Menu Top→PATTERN MEMORY→PATTERN EDIT Setting value 01 to 32: Pattern memory 1 to 32 Pattern name You can name window layout pattern using up to 10 characters in ASCII codes (0x20 to 0x7D).

  • Page 49: Output Setting

    ICP-401UHD User Guide 8.6 Output setting 8.6.1 Output mode Menu Top→OUTPUT SETTING→OUTPUT MODE Setting value AUTO : Automatic mode [Default] (Automatically selects appropriate mode and color space for the sink device) HDMI RGB : HDMI RGB mode HDMI 422 : HDMI YCbCr4:2:2 mode HDMI 444 : HDMI YCbCr4:4:4 mode HDMI 420 : HDMI YCbCr4:2:0 mode;...

  • Page 50: Hot Plug Ignoring Duration

    ICP-401UHD User Guide 8.6.3 Hot plug ignoring duration Menu Top→OUTPUT SETTING→OUTPUT HPD MASK Setting value OFF: Not ignoring request signals [Default] 2 to 15 Sec Time for ignoring the video output request signals sent from the sink device. If the request signals are repeated in a short cycle, the ICP processes video output from the first cycle.

  • Page 51: Hdcp Output

    ICP-401UHD User Guide 8.6.5 HDCP output Menu Top→OUTPUT SETTING→OUTPUT HDCP Setting value ・AUTO : Once channel with HDCP input is selected, HDCP is always output regardless of input signal status. [Default] ・AUTO(HDCP1.4) : Encrypts HDCP only if input signal has HDCP 1.4 ・INPUT ONLY...

  • Page 52: Output Timing

    ICP-401UHD User Guide 8.7 Output timing 8.7.1 Output resolution Menu Top→OUTPUT TIMING→OUTPUT RESOLUTION Setting value ・AT : AUTO [Default] ・15 : 1920x1080 : VESAHD@60 (1920x1080) ・16 : 1920x1200@60 : WUXGA@60 (1920x1200) ・22 : 1080i@50 : 1080i@50 (1920x1080) ・23 : 1080i@59 : 1080i@59.94 (1920x1080)

  • Page 53: Aspect Ratio Of Sink Device

    ICP-401UHD User Guide 8.7.2 Aspect ratio of sink device Menu Top→OUTPUT TIMING→OUTPUT ASPECT Setting value ・AUTO [Default] ・16:10 ・4:3 ・64:27 ・5:3 ・256:135 ・5:4 ・FINE ・16:9 You can set the aspect ratio of the connected sink device. If you select “AUTO,” the aspect ratio of the resolution selected in “8.7.1 Output resolution” will be applied.

  • Page 54: Display Position

    ICP-401UHD User Guide 8.7.4 Display position Menu Top→OUTPUT TIMING→OUTPUT POSITION Setting value H : -400.00% to 400.00% (by 0.01%) [Default] 0.00% V : -400.00% to 400.00% (by 0.01%) [Default] 0.00% You can set the horizontal and vertical display positions based on the output video (100%), and it starts from the upper left.

  • Page 55: Background Color

    ICP-401UHD User Guide 8.7.6 Background color Menu Top→OUTPUT TIMING→OUTPUT BACKGROUND Setting value R/G/B: 0 to 255 [Default] R/G/B: 0 (Black) You can set the background color for blanking area when “8.7.4 Display position” and “8.7.5 Display size” are set. Select “A” in the front panel to change the settings of “R” (leftmost), “G” and “B” relatively from the current setting values.

  • Page 56: Audio Setting

    ICP-401UHD User Guide 8.8 Audio setting HDMI digital audio supports 2-channel LPCM. When multi-channel LPCM is input, only Front Left and Front Right can be output. Other audio formats are not supported. 8.8.1 Audio output mute Menu Top→AUDIO→AUDIO MUTE Setting value OFF [Default] ON You can mute/unmute the output audio.

  • Page 57: Selecting Audio Input Channel

    ICP-401UHD User Guide 8.8.4 Selecting audio input channel Menu Top→AUDIO→AUDIO SELECT Setting value AUTO : Audio of the frontmost video is output [Default] OFF : No audio : Input channel 1 : Input channel 2 : Input channel 3 : Input channel 4 You can select the input channel that outputs audio.

  • Page 58: Edid Setting

    ICP-401UHD User Guide 8.9 EDID setting You can set or customize EDID to be sent to the source device. Change the setting as needed. EXTERNAL (External EDID) IN 1 Copied EDID 1 Copied EDID 2 IN 4 Step (1) Copied EDID 3...

  • Page 59: Edid Resolution

    ICP-401UHD User Guide 8.9.1 EDID Resolution Menu Top→EDID→EDID DATA Setting for Each input channel Setting value [Table 8.3] Maximum resolution of EDID You can set the resolution requested to be output from the source device. This setting will also be applied for controlling output resolution when AV devices (such as Blu-ray players) are connected via HDMI.
  • Page 60 ICP-401UHD User Guide [2/2] Setting Maximum resolution Pixels Standard Remarks value WXGA 1360×768, VESA The number of pixels can be set in LPCM 1366×768 “8.9.4 ”. SXGA+ 1400×1050 WXGA+ 1440×900 WXGA++ 1600×900 (RB) 1600×1200 UXGA WSXGA+ 1680×1050 VESA1080 1920×1080 (RB), for DVI device input WUXGA 1920×1200...
  • Page 61 ICP-401UHD User Guide [Table 8.4] Maximum resolution and supported pixels Pixels Max. resolution － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － － －...

  • Page 62: Copying Edid

    ICP-401UHD User Guide 8.9.2 Copying EDID Menu Top→EDID→EDID SAVE EDID of the sink device is loaded and registered to the ICP. The copied EDID will be treated as built-in EDID if “8.9.1 EDID Resolution” is set for “01” to “04”.

  • Page 63: Lpcm Audio

    ICP-401UHD User Guide 8.9.4 LPCM Audio Menu Top→EDID→EDID LINEAR PCM Setting for Each input channel Setting value 32kHz 44.1kHz 48kHz [Default] 88.2kHz 96kHz 192kHz You can set the maximum sampling frequency of LPCM that is output from the source device.

  • Page 64: Lan Communication

    ICP-401UHD User Guide 8.10 LAN communication The ICP can be accessed and controlled through LAN communication. The ICP does not support automatic acquisition of IP address using DHCP (Dynamic Host Configuration Protocol). If you use the ICP in a network with DHCP, keep a fixed IP address. If controlling peripheral devices connected over LAN from the ICP, keep multiple fixed IP addresses.

  • Page 65: Tcp Port Number

    ICP-401UHD User Guide 8.10.3 TCP port number Menu Top→LAN→CONTROL PORT Setting value 1 : 1100, 6000 to 6999 : TCP port number [Default] 1100 2 : OFF : Up to 4 connections can be used [Default] 2 : ON : Up to 8 connections can be used You can set the TCP port number to control the ICP externally.

  • Page 66: Preset Memory

    ICP-401UHD User Guide 8.11 Preset memory 8.11.1 Recalling preset memory Menu Top→PRESET→PRESET LOAD Setting value 01 to 32: The number of preset memory 1 to 32 You can recall settings saved in the preset memory. Once you recall a setting, output video settings will be updated.

  • Page 67: Editing Preset Memory Name

    ICP-401UHD User Guide 8.11.3 Editing preset memory name Menu Top→PRESET MEMORY→PRESET EDIT Setting value 01 to 32: The number of preset memory 1 to 32 ASCII code You can name preset memory using up to 10 characters in ASCII codes.

  • Page 68: Other Settings

    ICP-401UHD User Guide 8.12 Other settings 8.12.1 Key function lock Menu Top→OTHERS→OPERATION LOCK Setting for MENU, PATTERN Setting value LOCK [Default], UNLOCK You can set the key function lock. PATTERN: PATTERN SELECT keys will be locked/unlocked MENU: MENU/SET, ESC, and arrow keys will be locked/unlocked 【See: 7.5 Locking/unlocking front key function】...

  • Page 69: Beep

    ICP-401UHD User Guide 8.12.2 Beep Menu Top→OTHERS→BUZZER Setting value OFF, ON [Default] You can enable/disable the audible beep (sounding every time you press a front panel key). 8.12.3 Power saving Menu Top→OTHERS→POWER SAVE Setting value OFF, ON [Default] If you select “ON” and no key function is operated for 10 seconds, the display brightness is reduced to approximately 25%.

  • Page 70: Top Page

    ICP-401UHD User Guide 8.12.5 Top page Menu Top→OTHERS→TOP DISPLAY ● OFF [Default] ICP-401UHD ● ON Input signal status Sink device status System status [INPUT STATUS 1] [MONITOR STATUS 1] [FAN STATUS] IN1:1920x1080p 59.94 OUT: HP[42-]DC[12][OK] 1: 4800rpm (OK) [INPUT STATUS 2]...

  • Page 71: Input Signal Status

    ICP-401UHD User Guide 8.12.6 Input signal status Menu Top→OTHERS→INPUT STATUS You can view the input signal status that is input from HDMI input connector. 【See: 8.12.5 Top page】 [Table 8.7] Input signal status Display Description ① Input channel number Input signal [INPUT STATUS 1] ②...

  • Page 72: Sink Device Status

    ICP-401UHD User Guide 8.12.7 Sink device status Menu Top→OTHERS→MONITOR STATUS You can view the status of sink device connected to output connectors. 【See: 8.12.5 Top page】 [Table 8.8] Sink device status [1/2] Display Description ① Audio Sink device [MONITOR STATUS 1]...

  • Page 73: System Status

    ICP-401UHD User Guide [2/2] Display Description ① HDR Sink device [MONITOR STATUS 3] status 3 : HDR supported OUT: HDR[--] SCDC[ON] : HDR not supported ② SCDC ① ② : SCDC supported : SCDC not supported When no sink device is connected, “UNCONNECTED”...

  • Page 74: Viewing Version Information

    ICP-401UHD User Guide 8.12.9 Viewing version information Menu Top→OTHERS→VERSION You can view the firmware and hardware versions. The version information is displayed on two pages, and you can switch pages by pressing “▲” and “▼” keys. Firmware version Hardware version...

  • Page 75: Product Specification

    4K format: 24 bit/pixel (8 bit/component) is supported. The maximum cable distance varies depending on the connected devices and was measured under following conditions: ・1080p@60 : when IDK’s AWG 24 cable was used and signals of 1080p@60 24 bit/pixel (8 bit/component) was input or output. ・4K@60 : when IDK’s 18 Gbps supported cable was used and signals of 4K@60 24 bit/pixel (8 bit/component) was input or output...

  • Page 76: Troubleshooting

    ICP-401UHD User Guide 10 Troubleshooting This chapter recommends what to do if you have problems operating the ICP. In case the ICP does not work correctly, please check the following items first. ・ Are the ICP and all devices plugged in and powered on normally? ・...
  • Page 77 ICP-401UHD User Guide Problem Cause/Check item/Solution Page ● Video output (Cont’d) － Video is not output. [4] If a long cable is connected for input or output, replace it with a 16 ft. (5 m) or shorter cable. Even though a 16 ft. (5 m) or...
  • Page 78 ICP-401UHD User Guide Problem Cause/Check item/Solution Page ● Video output (Cont’d) － Video looks Some sink devices display input video with full screen mode, and shrunken horizontally the aspect ratio cannot be kept. Check the display setting of the or vertically.
  • Page 79 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-259-6920 FAX: +81-46-259-6930 Email: info@arvanics.com URL: http://www.arvanics.com Information in this document is subject to change without notice. ©2019 IDK Corporation, all rights reserved. All trademarks mentioned are the property of their respective owners.
