Thank you for choosing our product.
To ensure the best performance of this product, please read this user guide fully and carefully before
using it and keep this manual together with the product for future reference as needed.
<Command Reference Guide>
IDK Corporation
AV over IP Encoder for SDI
NJR-T01SDI
Ver.1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NJR-T01SDI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDK NJR-T01SDI

Summary of Contents for IDK NJR-T01SDI

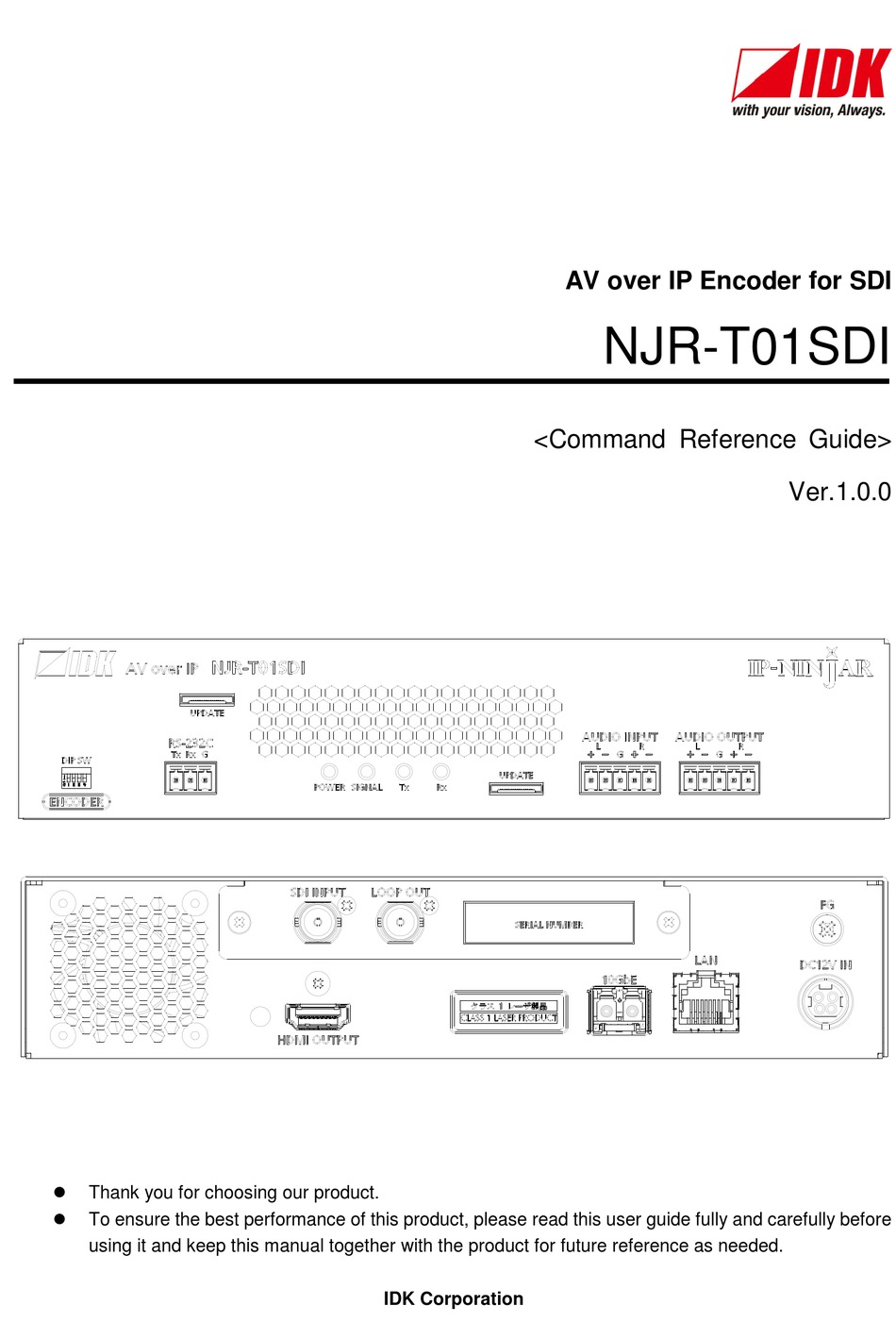

  • Page 1 AV over IP Encoder for SDI NJR-T01SDI <Command Reference Guide> Ver.1.0.0  Thank you for choosing our product.  To ensure the best performance of this product, please read this user guide fully and carefully before using it and keep this manual together with the product for future reference as needed.
  • Page 2 HDMI Licensing Administrator, Inc. in the United States and other countries.  IP NINJAR is a registered trademark of IDK Corporation in Japan.  All other company and product names mentioned in this manual are either registered trademarks or...
  • Page 3  Some information contained in this Command guide such as exact product appearance, diagrams, menu operations, communication commands, and so on may differ depending on the product version.  This Command guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...

  • Page 4: Table Of Contents

    NJR-T01SDI Command Guide Table of Contents How to read this Guide ..........................5 About this Guide ............................6 Communication configuration and Specifications ..................7 RS-232C communication ........................7 3.1.1 Setup of RS-232C communication ....................7 3.1.2 RS-232C connector specification ....................8 3.1.3...

  • Page 5: How To Read This Guide

    NJR-T01SDI Command Guide 1 How to read this Guide This guide contains the procedure for commanding NJR-T01SDI via RS-232C communication or LAN communication. For other products of IP-NINJAR series, see [Table 1.1] Document for IP-NINJAR products. Chapter 2 to 4...

  • Page 6: About This Guide

    NJR-T01SDI Command Guide 2 About this Guide This guide contains the procedure for controlling NJR-T01SDI using commands via RS-232C communication or LAN communication. ■ Communication commands enables the following main operations: ・Setting input, output ・Setting audio ・Displaying information...

  • Page 7: Communication Configuration And Specifications

    (1) Connect the control device to the RS-232C connector of the NJR-T01SDI through an RS-232C cable. (2) See the control device according to “[Table 3.2] RS-232C specification”. (3) Set the DIP switch of the NJR-T01SDI to Group A or Group B depending on the communication command you use. (“[Table 3.1] DIP switch”).

  • Page 8: Rs-232C Connector Specification

    Insert and secure the wires from the RS-232C cable into the supplied 3-position terminal block, and then insert the terminal block into to the mating connector on the NJR-T01SDI. AWG28 to AWG16 conductor gauge is recommended. The recommended wire strip length is 0.28 in. (7 mm).

  • Page 9: Lan Communication

    3.2.1 Setup LAN communication Follow the procedure below. (1) Connect the control device to the LAN connector of the NJR-T01SDI through a LAN cable. (2) Start the IP-NINJAR Configurator in the control device. (3) Send communication command from the Maintenance page of the IP-NINJAR Configurator.
  • Page 10 NJR-T01SDI Command Guide ① ② ④ ③ ① For entering the desired command. ② For sending the command to NJR-T01SDI or IP-NINJAR series decoders. ③ For displaying the log. ④ For deleting the log. [Fig. 3.4] Command input from Maintenance page...

  • Page 11: Lan Connector Specification

    Pin assignment of the LAN connector is as follows. Since Auto MDI / MDI-X that distinguishes and switches straight/cross cables automatically is supported, extra care is not necessary to connect the NJR-T01SDI to PC, HUB or the like. 8-pin RJ-45...

  • Page 12: External Control From Njr-Ctb

    The NJR-T01SDI sends broadcast packets periodically for the purposes of internal system management. *A broadcast storm occurs when a network is overwhelmed by continuous broadcast traffic resulting in a network meltdown. During installation, it is important to avoid the creation of network loops. Contact IDK if you require assistance with network implementation.

  • Page 13: Command

    NJR-T01SDI Command Guide 4 Command 4.1 Summary A command consists of “@” (“40” in hexadecimal), 3 or 4 one-byte alphabetical characters (upper and lower cases) followed by parameters (one-byte numbers). For some commands, multiple parameter values can be specified. Processing is executed by sending a delimiter at the end of the command.

  • Page 14: Command List

    NJR-T01SDI Command Guide 4.2 Command list ■ Error status Command Function Group A Group B Page @ERR Error status Supported Supported ■ Output settings Command Function Group A Group B Page @GDM / @SDM Output mode Supported @GDI / @SDI...

  • Page 15: Setting Items

    NJR-T01SDI Command Guide 4.3 Setting items Some setting items can be controlled via commands/GUI operation; the others cannot be controlled. [Table 4.1] Available setting method Command: Command input, GUI: GUI operation, WEB&C: WEB browser and command input, No: Not supported, -: N/A...

  • Page 16: Parameter Input Format

    Parameter input formats are common for each setting. If a command is input from the RS-232C connector of NJR-T01SDI or from the LAN connector using the IP-NINJAR Configurator, “1” (fixed) is specified to “ch” (channel) because only one NJR-T01SDI can be controlled.

  • Page 17: Details Of Commands

    NJR-T01SDI Command Guide 4.5 Details of commands 4.5.1 Error status @ERR Error status － Command group Format Return value only. Return value @ERR, error Parameter error: Error status 1 = Erroneous parameter format or value 2 = Undefined command or wrong format 3 = Currently cannot be used.

  • Page 18: Basic Settings

    Model “1” (fixed). ch: Channel 1 to 512 = Channel 1 to Channel 512 If a command is input from the RS-232C connector of NJR-T01SDI or from IP-NINJAR Configurator through LAN, the value is “1” (fixed). reserved: Reservation “1” (fixed).
  • Page 19 Model “1” (fixed). ch: Channel 1 to 512 = Channel 1 to Channel 512 If a command is input from the RS-232C connector of NJR-T01SDI or from IP-NINJAR Configurator through LAN, the value is “1” (fixed). reserved: Reservation “1” (fixed).
  • Page 20 Model “1” (fixed). ch: Channel 1 to 512 = Channel 1 to Channel 512 If a command is input from the RS-232C connector of NJR-T01SDI or from IP-NINJAR Configurator through LAN, the value is “1” (fixed). reserved: Reservation “1” (fixed).

  • Page 21: Audio

    Model “1” (fixed). ch: Channel 1 to 512 = Channel 1 to Channel 512 If a command is input from the RS-232C connector of NJR-T01SDI or from IP-NINJAR Configurator through LAN, the value is “1” (fixed). port: Connector “1” (fixed).

  • Page 22: Input Settings

    Model “1” (fixed). ch: Channel 1 to 512 = Channel 1 to Channel 512 If a command is input from the RS-232C connector of NJR-T01SDI or from IP-NINJAR Configurator through LAN, the value is “1” (fixed). reserved: Reservation “1” (fixed).
  • Page 23 Model “1” (fixed). ch: Channel 1 to 512 = Channel 1 to Channel 512 If a command is input from the RS-232C connector of NJR-T01SDI or from IP-NINJAR Configurator through LAN, the value is “1” (fixed). reserved: Reservation “1” (fixed).

  • Page 24: Rs-232C Settings

    NJR-T01SDI Command Guide 4.5.2.4 RS-232C settings @GCTB / RS-232C communication setting @SCTB Command group N/A (only for NJR-CTB command server) Function Getting Setting Format @SCTB, device, ch, reserved, baudrate, @GCTB, device, ch, reserved databit, stopbit, parity Return value @GCTB, device, ch, reserved, baudrate,...

  • Page 25: Lan Settings

    - Default gateway : 192.168.3.254 0,192.168.3.254 Completed normally. Remarks This command can be input only via the NJR-CTB command server. If the LAN setting is changed, the communication may be disabled. Change the environmental settings based on the NJR-T01SDI settings.
  • Page 26 NJR-T01SDI Command Guide @GMC MAC address Command group N/A (only for NJR-CTB command server) Function Getting Format @GMC, device, ch, reserved Return value @GMC, device, ch, reserved, mac Parameter device: Model “1” (fixed). ch: Channel 1 to 512 = Channel 1 to Channel 512 reserved: Reservation “1”...

  • Page 27: Other Settings

    NJR-T01SDI Command Guide 4.5.2.6 Other settings @CLRC Initialization Command group N/A (only for NJR-CTB command server) Function Setting Format @CLRC, device, ch, reserved, comm_setting Return value @CLRC, device, ch, reserved, comm_setting Parameter device: Model “1” (fixed). ch: Channel 0 = All channels, 1 to 512 = Channel 1 to Channel 512 reserved: Reservation “1”...

  • Page 28: Information

    Model “1” (fixed). ch: Channel 1 to 512 = Channel 1 to Channel 512 If a command is input from the RS-232C connector of NJR-T01SDI or from IP-NINJAR Configurator through LAN, the value is “1” (fixed). reserved: Reservation “1” (fixed).
  • Page 29 10 = 4:4:4:4 (G/B/R/D) 14 = 4:4:4 (X'Y'Z') Example @GQV,1,1,1 Getting the input video status of channel 1. @GQV,1,1,1,1920,1080,0,4,2, 1080p@30, HD, YCbCr4:2:2, 10 bit. 1,0,1,34,1,1,2200,1125,1,0 Remarks If setting from the RS-232C connector of the NJR-T01SDI, set the DIP switch to Group B.
  • Page 30 Model “1” (fixed). ch: Channel 1 to 512 = Channel 1 to Channel 512 If a command is input from the RS-232C connector of NJR-T01SDI or from IP-NINJAR Configurator through LAN, the value is “1” (fixed). reserved: Reservation “1” (fixed).
  • Page 31 12 = Output signal type 13 = Error code 0 to 4: Compatible with other models. For NJR-T01SDI, the status of HDMI signal that is converted from SDI signal will be returned. status_1 to status_4: Status *1 For input signal type, one of the following values is returned.
  • Page 32 NJR-T01SDI Command Guide @GSS I/O status (cont’d) Parameter *3 For format of audio input signal Reply example Description LINEAR PCM 48kHz LPCM signal is input, which returns the sampling frequency. NO AUDIO No signal is input. *4 For HDCP presence, one of the following values is returned.
  • Page 33 - HDCP authentication : HDCP 1.4 H30,00 - Output signal type : 30-BIT COLOR HDMI signal - Error code: Video and audio are output correctly. Remarks If setting from the RS-232C connector of the NJR-T01SDI, set the DIP switch to Group A.
  • Page 34 “1” (fixed). ch: Channel 1 to 512 = Channel 1 to Channel 512 If a command is input from the RS-232C connector of NJR-T01SDI or from IP-NINJAR Configurator through LAN, the value is “1” (fixed). port: Output connector “2” fixed.
  • Page 35 - Dot clock : 148.50MHz - HDMI : Not supported - Audio : Not supported Remarks If setting from the RS-232C connector of the NJR-T01SDI, set the DIP switch to Group A. @GIV Version Command group Group A Function Getting...
  • Page 36 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-259-6920 FAX: +81-46-259-6930 Email: info@arvanics.com URL: http://www.arvanics.com Information in this document is subject to change without notice. ©2019 IDK Corporation, all rights reserved. All trademarks mentioned are the property of their respective owners.
