IDK ICP-401UHD Command Reference Manual

IDK ICP-401UHD Command Reference Manual

4k@60/hdcp multi- window processor
Hide thumbs Also See for ICP-401UHD:
Table of Contents

Advertisement

Quick Links

Download this manual
Thank you for choosing our product.
To ensure the best performance of this product, please read this user guide fully and carefully before
using it and keep this manual together with the product for future reference as needed.

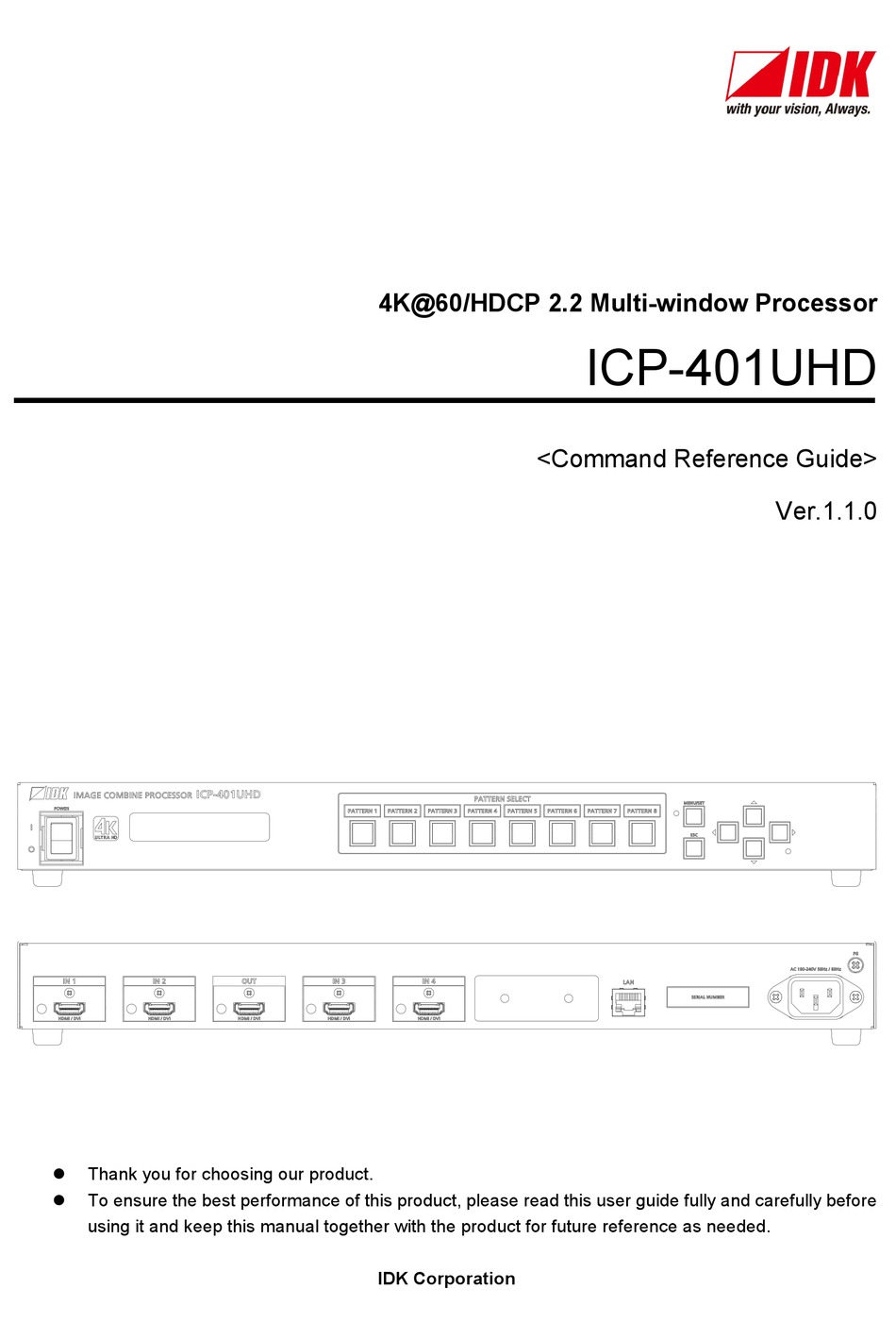

4K@60/HDCP 2.2 Multi-window Processor
<Command Reference Guide>
IDK Corporation
ICP-401UHD
Ver.1.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICP-401UHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDK ICP-401UHD

Summary of Contents for IDK ICP-401UHD

  • Page 1 4K@60/HDCP 2.2 Multi-window Processor ICP-401UHD <Command Reference Guide> Ver.1.1.0 Thank you for choosing our product.  To ensure the best performance of this product, please read this user guide fully and carefully before  using it and keep this manual together with the product for future reference as needed.
  • Page 2 ICP-401UHD Command Guide Trademarks  The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.  All other company and product names mentioned in this manual are either registered trademarks or...
  • Page 3  Some information contained in this Command guide such as exact product appearance, diagrams, menu operations, communication commands, and so on may differ depending on the product version.  This Command guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...

  • Page 4: Table Of Contents

    ICP-401UHD Command Guide Table of Contents 1 About this Guide ............................5 2 Communication Configuration and Specifications ..................6 LAN communication ..........................6 2.1.1 LAN connector specification ......................6 2.1.2 LAN communication specification ....................6 2.1.3 Setting up LAN communication ..................... 7 2.1.4...

  • Page 5: About This Guide

    ICP-401UHD Command Guide 1 About this Guide This guide explains how to control the ICP-401UHD (hereafter referred to as “ICP”) using commands through LAN communication. ■ Communication commands enables the following main operations: ・Switching and saving window pattern ・Setting input, output, and EDID...

  • Page 6: Communication Configuration And Specifications

    ICP-401UHD Command Guide 2 Communication Configuration and Specifications 2.1 LAN communication 2.1.1 LAN connector specification It supports Auto MDI/MDI-X, which distinguishes/switches straight and cross cables automatically. Pin assignments of LAN connector: Lights in green while link is established. Lights in orange if the send/receive Blinks in green while data is being rate is 100 Mbps.

  • Page 7: Setting Up Lan Communication

    ICP-401UHD Command Guide 2.1.3 Setting up LAN communication (1) Connect the ICP and the control device via a LAN cable. (2) Set up LAN communication as follows: ・Set IP address and subnet mask ・TCP pot number: 1100, 6000 to 6999 【Reference: User guide】...

  • Page 8: The Number Of Tcp-Ip Connections

    ICP-401UHD Command Guide 2.1.4 The number of TCP-IP connections The ICP supports up to eight simultaneous TCP-IP connections (eight logical ports). To maintain optimal system accessibility, it is advisable to issue “port-open” and “port-close” commands before and after command or query strings are issued. This approach enables eight or more control devices to be effectively interfaced simultaneously and without concern for communication errors.

  • Page 9: Command

    ICP-401UHD Command Guide 3 Command 3.1 Summary A command consists of “@” (“40” in hexadecimal), 3 one-byte alphabetical characters (upper and lower cases), followed by parameters (one-byte numbers). For some commands, multiple parameter values can be specified or parameters are not necessary. Processing is executed by sending a delimiter at the end of the command.

  • Page 10: Command List

    ICP-401UHD Command Guide 3.2 Command list Error status Command Function Page @ERR Error status Input setting Command Function Page @GDT / @SDT No-signal input monitoring @GHE / @SHE HDCP input setting Input timing Command Function Page @GPI / @SPI Start position...
  • Page 11 ICP-401UHD Command Guide Output setting Command Function Page @GDM / @SDM Output mode @GHM / @SHM Sink device EDID check @GMK / @SMK Hot plug ignoring duration @GDC / @SDC Deep Color @GEN / @SEN HDCP output Output timing Command...
  • Page 12 ICP-401UHD Command Guide Preset memory Command Function Page @RPM Recalling preset memory @SPM Saving preset memory Other settings Command Function Page @GLS / @SLS Key function lock @GLM / @SLM Grouping front key function lock @GIS Input signal status @GOS...

  • Page 13: Details Of Commands

    ICP-401UHD Command Guide 3.3 Details of commands 3.3.1 Error status @ERR Error status Description Response in case the command is not executed Response @ERR, error Parameter error: Error status 1 = Erroneous parameter format or value 2 = Undefined command or wrong format...

  • Page 14: Input Setting

    ICP-401UHD Command Guide 3.3.2 Input setting @GDT / @SDT No-signal input monitoring Getting Command @GDT Response @GDT, time_1, ･･･, time_4 Setting Command @SDT, in_1, time_1 (,in_2, time_2･･･) Response @SDT, in_1, time_1 (,in_2, time_2･･･) Parameter time_1-4: No-signal input monitoring time 0 = OFF, 3 to 15 = 3 sec. to 15 sec. [Default] 10 = 10 sec.

  • Page 15: Input Timing

    ICP-401UHD Command Guide 3.3.3 Input timing @GPI / @SPI Start position Getting Command @GPI, in Response @GPI, in, h_posi, v_posi @SPI, in, h_posi, v_posi Setting Command @SPI, in, h_posi, v_posi Response Parameter in: Input channel 1 to 4 = IN1 to IN4 h_posi : Horizontal start position (by 0.01%)

  • Page 16: Gap / @Sap Aspect Ratio

    ICP-401UHD Command Guide @GAP / @SAP Aspect ratio Getting Command @GAP, in @GAP, in, aspect, val Response Setting Command @SAP, in, aspect (,val) @SAP, in, aspect (,val) Response Parameter in: Input channel 1 to 4 = IN1 to IN4 aspect: Input video aspect ratio...

  • Page 17: Gic / @Sic Contrast

    ICP-401UHD Command Guide @GIC / @SIC Contrast Getting Command @GIC, in @GIC, in, red, green, blue Response Setting Command @SIC, in, red, green, blue @SIC, in, red, green, blue Response Parameter in: Input channel 1 to 4 = IN1 to IN4...

  • Page 18: Gbl / @Sbl Blank Color

    ICP-401UHD Command Guide @GBL / @SBL Blank color Getting Command @GBL, in @GBL, in, red, green, blue Response Setting Command @SBL, in, red, green, blue @SBL, in, red, green, blue Response Parameter in: Input channel 1 to 4 = IN1 to IN4...

  • Page 19: Gef / @Sef Input Video Settings

    ICP-401UHD Command Guide @GEF / @SEF Input video settings Getting Command @GEF, in Response @GEF, in, h_size, v_size, h_posi, v_posi, aspect, c_red, c_green, c_blue, brightness, b_red, b_green, b_blue Setting Command @SEF, in, h_size, v_size, h_posi, v_posi, aspect, c_red, c_green, c_blue,...
  • Page 20 ICP-401UHD Command Guide @GEF / @SEF Input video settings (Cont’d) @GEF,1 Getting Command @GEF,1,10000,10000,0,0,0,100,100,100,100,50,50,50 example Response Description Getting the IN1 input video settings - Horizontal and vertical active area : 100% - Horizontal and vertical start position : 0% - Input video aspect ratio...

  • Page 21: Window Setting

    ICP-401UHD Command Guide 3.3.4 Window setting @GOP / @SOP Window position/size Getting Command @GOP, in Response @GOP, in, h_posi, v_posi, h_size, v_size @SOP, in, h_posi, v_posi, h_size, v_size Setting Command @SOP, in, h_posi, v_posi, h_size, v_size Response Parameter in: Input channel 1 to 4 = IN1 to IN4 h_posi : Horizontal window position (by 0.01%)

  • Page 22: Gqp / @Sqp Window Start Position/Display Size

    ICP-401UHD Command Guide @GQP / @SQP Window start position/display size Getting Command @GQP, in @GQP, in, h_posi, v_posi, h_size, v_size Response Setting Command @SQP, in, h_posi, v_posi, h_size, v_size @SQP, in, h_posi, v_posi, h_size, v_size Response Parameter in: Input channel 1 to 4 = IN1 to IN4 h_posi : Horizontal window start position (by 0.01%)

  • Page 23: Gbc / @Sbc Window Background Color

    ICP-401UHD Command Guide @GBC / @SBC Window background color Getting Command @GBC, in @GBC, in, red, green, blue Response Setting Command @SBC, in, red, green, blue @SBC, in, red, green, blue Response Parameter in: Input channel 1 to 4 = IN1 to IN4...

  • Page 24: Gto / @Sto Window Overlay Titling

    ICP-401UHD Command Guide @GTO / @STO Window overlay titling Getting Command @GTO, in @GTO, in, disp Response Setting Command @STO, in, disp @STO, in, disp Response Parameter in: Input channel 1 to 4 = IN1 to IN4 disp: Overlay titling...

  • Page 25: Gwv / @Swv Window Hiding

    ICP-401UHD Command Guide @GWV / @SWV Window hiding Getting Command @GWV, in @GWV, in, disp Response Setting Command @SWV, in, disp @SWV, in, disp Response Parameter in: Input channel 1 to 4 = IN1 to IN4 disp: Window hiding 0 = Not display...

  • Page 26: Pattern Memory

    ICP-401UHD Command Guide 3.3.5 Pattern memory @RWM Recalling window pattern @RWM, pattern Setting Command Response @RWM, pattern Parameter pattern: The number of pattern memory 1 to 32 = Pattern memory 1 to Pattern memory 32 @RWM,1 Setting Command example Response...

  • Page 27: Output Setting

    ICP-401UHD Command Guide 3.3.6 Output setting @GDM / @SDM Output mode Getting Command @GDM Response @GDM, mode Setting Command @SDM, out, mode @SDM, out, mode Response Parameter mode: Output mode 0 = AUTO [Default], 1 = DVI, 2 = YCbCr 4:4:4,...
  • Page 28 ICP-401UHD Command Guide @GMK / @SMK Hot plug ignoring duration Getting Command @GMK @GMK, mask Response Setting Command @SMK, out, mask Response @SMK, out, mask Parameter mask: Hot plug ignoring duration 1 = OFF [Default] 2 to 15 = 2 sec. to 15 sec.
  • Page 29 ICP-401UHD Command Guide @GEN / @SEN HDCP output @GEN, out Getting Command @GEN, out, hdcp Response Setting Command @SEN, out, hdcp @SEN, out, hdcp Response Parameter out: Output channel 1, fixed hdcp: HDCP output 0 = Once channel with HDCP input is selected, always HDCP is output regardless off input signal status.

  • Page 30: Output Timing

    ICP-401UHD Command Guide 3.3.7 Output timing @GOT / @SOT Output resolution Getting Command @GOT, out Response @GOT, out, auto, resolution @SOT, out, auto, resolution Setting Command @SOT, out, auto, resolution Response Parameter out: Output channel 1, fixed auto: Output resolution mode 0 = Resolution can be specified for the “resolution”...
  • Page 31 ICP-401UHD Command Guide @GUM / @SUM Aspect ratio of sink device Getting Command @GUM, out @GUM, out, aspect, val Response Setting Command @SUM, out, aspect (,val) @SUM, out, aspect (,val) Response Parameter out: Output channel 1, fixed aspect: Aspect ratio of sink device...
  • Page 32 ICP-401UHD Command Guide @GTP / @STP Test pattern Getting Command @GTP, out @GTP, out, pattern Response Setting Command @STP, out, pattern @STP, out, pattern Response Parameter out: Output channel 1, fixed pattern: Test pattern 0 = OFF [Default] 1 = V-STRIPES...
  • Page 33 ICP-401UHD Command Guide @GMR / @SMR Display size/position Getting Command @GMR, out @GMR, out, h_size, v_size, h_posi, v_posi Response Setting Command @SMR, out, h_size, v_size, h_posi, v_posi @SMR, out, h_size, v_size, h_posi, v_posi Response Parameter out: Output channel 1, fixed h_size : Horizontal size (by 0.01%)
  • Page 34 ICP-401UHD Command Guide @GEC / @SEC Background color Getting Command @GEC, out @GEC, out, red, green, blue Response Setting Command @SEC, out, red, green, blue @SEC, out, red, green, blue Response Parameter out: Output channel 1, fixed : Background color (Red)
  • Page 35 ICP-401UHD Command Guide @GOA / @SOA Output video settings @GOA, out Getting Command Response @GOA, out, auto, resolution, aspect, pattern, h_size, v_size, h_posi, v_posi, red, green, blue Setting Command @SOA, out, auto, resolution, aspect, pattern, h_size, v_size, h_posi, v_posi, red, green, blue...
  • Page 36 ICP-401UHD Command Guide @GOA / @SOA Output video settings (Cont’d) Parameter pattern: Test pattern 0 = OFF [Default] 1 = V-STRIPES 2 = CROSS HATCH 3 = WHITE RASTER 4 = RED RASTER 5 = GREEN RASTER 6 = BLUE RASTER...
  • Page 37 ICP-401UHD Command Guide @GOA / @SOA Output video settings (Cont’d) @SOA,1,0,28,0,0,10000,10000,0,0,0,0,0 Setting Command @SOA,1,0,28,0,0,10000,10000,0,0,0,0,0 example Response Description Setting the output video settings as follows: - Output resolution mode : Fixed - Output resolution : 2160p@59.94(3840x2160) - Aspect ratio of sink device : AUTO...

  • Page 38: Audio Setting

    ICP-401UHD Command Guide 3.3.8 Audio setting @GAM / @SAM Audio output mute Getting Command @GAM Response @GAM, mute Setting Command @SAM, out, mute @SAM, out, mute Response Parameter mute: Audio output mute 0 = OFF [Default], 1 = ON out: Output channel...
  • Page 39 ICP-401UHD Command Guide @GSL / @SSL Audio output level Getting Command @GSL @GSL, level Response Setting Command @SSL, out, level Response @SSL, out, level Parameter level: Audio output level -60 to 10 [Default] 0 out: Output channel 1, fixed Getting...
  • Page 40 ICP-401UHD Command Guide @GAT / @SAT Test tone @GAT Getting Command @GAT, tone Response Setting Command @SAT, out, tone @SAT, out, in Response Parameter tone: Test tone 0 = OFF [Default] 1 = 1000 Hz 2 = 400 Hz out: Output channel...

  • Page 41: Edid Setting

    ICP-401UHD Command Guide 3.3.9 EDID setting @GED / @SED EDID resolution Getting Command @GED Response @GED,format_1, ･･･ format_4 Setting Command @SED,in_1,format_1 (,in_2,format_2･･･) Response @SED,in_1,format_1 (,in_2,format_2･･･) Parameter format_1 to format_4 : EDID resolution of input channels 0 = External EDID, 1 to 4 = Copied EDID1 to Copied EDID4, 5 = 1080p (59.94 / 60),...
  • Page 42 ICP-401UHD Command Guide @RME Copying EDID Setting Command @RME,out,number @RME,out,number Response Parameter out: Output channel 1, fixed number: Destination COPY DATA number 1 to 4 = Destination 1 to Destination 4 Setting Command @RME,1,1 example Response @RME,1,1 Description Setting the sink device EDID connected to OUT to Destination 1 Remarks －...
  • Page 43 ICP-401UHD Command Guide @GAF / @SAF LPCM Audio Getting Command @GAF,in,format @GAF,in,format,frequency Response Setting Command @SAF,in,format,frequency Response @SAF,in,format,frequency Parameter in: Input channel 1 to 4 = IN1 to IN4 format: Audio format 0, fixed frequency: The maximum sampling frequency 1 = 32 kHz, 2 = 44.1 kHz,...

  • Page 44: Lan Communication

    ICP-401UHD Command Guide 3.3.10 LAN communication @GIP / @SIP IP address @GIP Getting Command Response @GIP,unit_1,unit_2,unit_3,unit_4 Setting Command @SIP,unit_1,unit_2,unit_3,unit_4 @SIP,unit_1,unit_2,unit_3,unit_4 Response Parameter unit_1 to unit_4: Upper bit of the IP address to lower bit of the IP address 0 to 255 = 8 bit (Decimal notation) [Default] 192.168.1.199...
  • Page 45 ICP-401UHD Command Guide @GLP / @SLP TCP port number Getting Command @GLP @GLP,port,connection Response Setting Command @SLP,port,connection Response @SLP,port,connection Parameter port: TCP port number 1100 [Default], 6000 to 6999 connection: 8-connection setting 0 = 8-connection setting OFF (WEB browser 4 connections/communication command control...

  • Page 46: Preset Memory

    ICP-401UHD Command Guide 3.3.11 Preset memory @RPM Recalling preset memory @RPM,preset Setting Command Response @RPM,preset Parameter preset: The number of preset memory 1 to 32 @RPM,1 Setting Command example Response @RPM,1 Description Recalling preset memory 1 Remarks Once preset memory is recalled, all settings of video and audio in the memory will be updated.

  • Page 47: Other Settings

    ICP-401UHD Command Guide 3.3.12 Other settings @GLS / @SLS Key function lock @GLS Getting Command Response @GLS,lock Setting Command @SLS,lock @SLS,lock Response Parameter lock: Front key function lock 0 = Unlock [Default], 1 = Lock Getting Command @GLS @GLS,0 example...
  • Page 48 ICP-401UHD Command Guide @GIS Input signal status @GIS,in,mode Getting Command @GIS,in,mode,status_1 (,status_2,status_3) Response Parameter in : Input channel 1 to 4 = IN1 to IN4 mode: Status 0 = All statuses of input signals 1 = Input signal and HDCP/color depth...
  • Page 49 ICP-401UHD Command Guide @GIS Input signal status (Cont’d) @GIS,1,0 Getting Command @GIS,1,0,H08,1920x1080p 59.94Hz,L-PCM 48kHz example Response Description Getting the IN1 all input statuses - Input signal and HDCP : HDMI signal, with HDCP - Color depth : 24 bit/pixel (8 bit/component) - Input resolution/input vertical sync frequency : 1080p 59.94 Hz...
  • Page 50 ICP-401UHD Command Guide @GOS Sink device status @GOS,out,mode Getting Command @GOS,out,mode,status_1 (,status_2) Response Parameter out: Output channel 1, fixed mode: Status 0 = All statuses of sink device 1 = HDCP of sink device 2 = HDCP authentication between the ICP and sink device...
  • Page 51 ICP-401UHD Command Guide @GST Temperature status Getting Command @GST @GST, temp_1, status_1, temp_2, status_2 Response Parameter temp_1-2: Temperature (°C) status_1-2: Temperature status 0 = No problem detected, 1 = Problem detected @GST Getting Command example Response @GST,36,0,32,0 Description Getting the temperature sensor status Temperature sensor 1 : 36°C;...
  • Page 52 ICP-401UHD Command Guide @GHC System status Getting Command @GHC @GHC,temp_status,fan_status,power_status Response Parameter temp_status: Temperature status 0 = No problem detected, 1 = Problem detected fan_status: Fan status 0 = No problem detected, 1 = Problem detected power_status: Power supply voltage status...
