Thank you for choosing our product.
To ensure the best performance of this product, please read this user guide fully and carefully before
using it and keep this manual together with the product for future reference as needed.

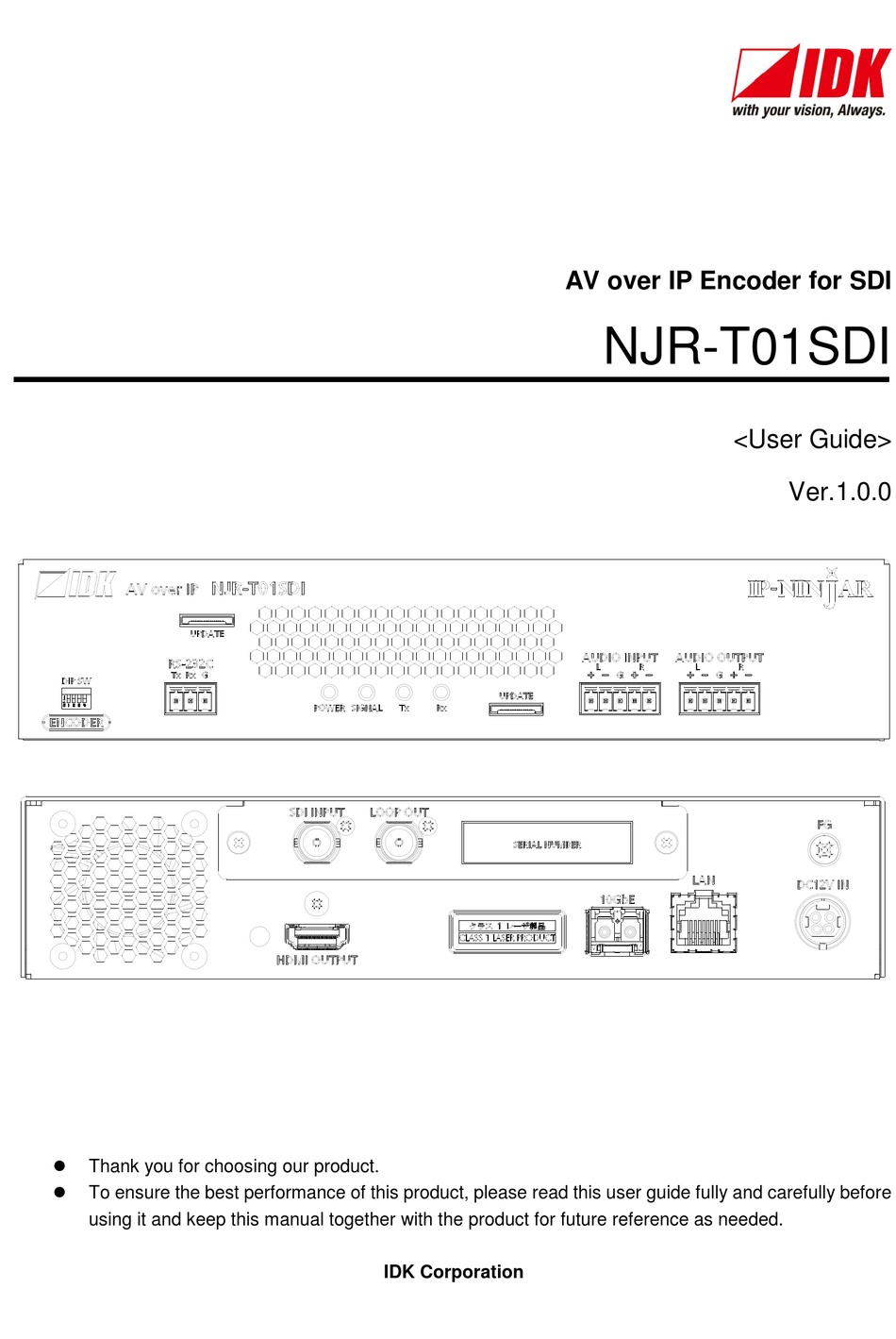

IDK Corporation
AV over IP Encoder for SDI
NJR-T01SDI
<User Guide>
Ver.1.0.0
Advertisement
Table of Contents
Related Manuals for IDK NJR-T01 SDI
Summary of Contents for IDK NJR-T01 SDI
- Page 1 Thank you for choosing our product. To ensure the best performance of this product, please read this user guide fully and carefully before using it and keep this manual together with the product for future reference as needed. IDK Corporation...
- Page 2 HDMI Licensing Administrator, Inc. in the United States and other countries. IP NINJAR is a registered trademark of IDK Corporation in Japan. All other company and product names mentioned in this manual are either registered trademarks or...
- Page 3 Some information contained in this User guide such as exact product appearance, diagrams, menu operations, communication commands, and so on may differ depending on the product version. This User guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...
- Page 4 NJR-T01SDI User Guide Safety Instructions Read and understand all safety and operating instructions before using this product. Follow all instructions and cautions as detailed in this document. Enforcement Symbol Description Indicates the presence of a hazard that may result in death or serious Warning personal injury if the warning is ignored or the product is handled incorrectly.
- Page 5 ● Do not repair, modify or disassemble. Since the product includes circuitry that uses potentially lethal, high voltage levels, disassembly by unauthorized personnel may lead to the risk of fire or electric shock. For internal inspection or repair, contact your IDK Do not representative.
- Page 6 Unplug If you continue to use the product under these conditions, it may increase the risk of electrical shock or fire. For maintenance and repair, contact your IDK representative. ● Unplug immediately if water or other objects are directed inside.
- Page 7 NJR-T01SDI User Guide Caution ■ For installing and connecting products: ● Do not place the product in a location where it will be subjected to high temperatures. If the product is subjected to direct sunlight or high temperatures while under operation, it may affect the product’s performance and reliability and may increase the risk of fire.
-
Page 8: Table Of Contents
NJR-T01SDI User Guide Table of Contents About this Guide ............................10 Included items ............................11 Precautions for shipping .......................... 12 Product outline ............................13 Features ..............................14 Panels ..............................15 System configuration example ......................... 17 Used as Network Extender ......................... 17 Used as Extender .......................... - Page 9 NJR-T01SDI User Guide 10.6.4 Sink device EDID ........................41 10.6.5 Version ............................41 11 Product specification ..........................42 12 Troubleshooting ............................43...
-
Page 10: About This Guide
NJR-T01SDI User Guide 1 About this Guide This user guide explains AV over IP Encoder for SDI (NJR-T01SDI). This document also describes basic operations from external devices for controlling the NJR-T01SDI. For other products of IP-NINJAR series, see [Table 1.1] Document for IP-NINJAR products. Chapter 2 to 11 Chapter 9 PC for control... -
Page 11: Included Items
NJR-T01SDI User Guide 2 Included items Ensure that all items illustrated below are included in the package. If any items are missing or damaged, please contact IDK. One (1) NJR-T01SDI (Encoder) One (1) Cable clamp Two (2) 5-pin terminal blocks... -
Page 12: Precautions For Shipping
NJR-T01SDI User Guide 3 Precautions for shipping The MM / SM model (NJR-T01SDI-MM / SM) has an SFP+ optical transceiver that makes it vulnerable to damage caused by mishandling during shipment if it is improperly packaged. If, for any reason, you need to ship the NJR, use the carton and cushion which were used at the time of purchase. -
Page 13: Product Outline
NJR-T01SDI User Guide 4 Product outline The NJR-T01SDI is a 3G/HD/SD-SDI input-capable network encoder. It is designed to transmit SDI signals for local and long-haul extension over fiber optic cables. The NJR-T01SDI features a local monitor output, enabling video recording and previewing using an HDMI monitor. -
Page 14: Features
NJR-T01SDI User Guide 5 Features ■ Video ・ Up to 1080p ・ 3G-SDI / HD-SDI / SD-SDI input ・ Local monitor output ・ Extension distances Multimode fiber (OM3) : Up to 984 ft. (300 m) Singlemode fiber (OS1) : Up to 6.21 mi. (10 km) (up to 24.85 mi. (40 km, optional) ■... -
Page 15: Panels
NJR-T01SDI User Guide 6 Panels ① ② ③ ④ ③ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ [Fig. 6.1] NJR-T01SDI drawing [Table 6.1] NJR-T01SDI features Feature Description ① DIP switch Switches internal connections of RS-232C signals. 【See: 8.4 Setting DIP switch】... - Page 16 NJR-T01SDI User Guide [Table 6.2] NJR-T01SDI features (Cont’d) Feature Description ⑤ Audio input connector Input connector (5-pin terminal block) for analog audio signals. ⑥ Audio output connector Output connector for converted analog audio signal from SDI audio input signal. Connects to amplifiers, speakers, and mixers. ⑦...
-
Page 17: System Configuration Example
NJR-T01SDI User Guide 7 System configuration example This chapter cites two system configuration examples. 7.1 Used as Network Extender Using the NJR-T01SDI and other IP-NINJAR encoders/decoders with a 10 GbE switch enables extending, distributing, matrix switching, videowall, and multiview. ① Video and audio signals are input to the SDI input connector of the NJR-T01SDI from an industrial video device. -
Page 18: Used As Extender
NJR-T01SDI User Guide 7.2 Used as Extender An NJR-T01SDI and IP-NINJAR series decoders are connected as Point To Point. ① Video and audio signals are input to the SDI input connector of the NJR-T01SDI from an industrial video device. ② The NJR-T01SDI sends those signals to the NJR-R01UHD / NJR-R04HD over a fiber optic cable. ③... -
Page 19: Precautions
40°C / 104°F or less. If inadequately vented, the life of parts may be shortened and operation may be affected. (Exception: Installing to IDK’s rack mounting RM-SF, RM-SH) ・ When you do not use an EIA rack-mount unit, maintain adequate clearances (1.2 in. (30 mm) or more) as shown below. -
Page 20: Cabling
NJR-T01SDI User Guide 8.3 Cabling When connecting the NJR-T01SDI to external devices, please observe the following precautions. ・ Read manuals for the external devices. ・ Before connecting cables to the NJR or an external device, dissipate static electricity by touching grounded metal such as equipment racks before handling signal cables. -
Page 21: Fiber Optic Cable For Extension
[Fig. 8.3] Connecting fiber optic cable Note: For the connectors of 10 GbE switch, refer to its manual. Tip: IDK supplies various optical cables, such as high-performance optical cables and non-strip fiber optic cables. See our web site for details. -
Page 22: Sfp+ Optical Transceiver
NJR-T01SDI User Guide ・ To polish connectors: For SFP+ optical transceiver for multimode : PC polishing is recommended. For SFP+ optical transceiver for singlemode : UPC polishing is recommended. Note: APC polishing is not supported. ・ Extension distance varies depending on attenuation of the fiber, connector and other contact portions. ・... -
Page 23: Connecting Audio Cable
NJR-T01SDI User Guide 8.3.4 Connecting audio cable The NJR’s audio input and output connectors mate with 5-pin terminal blocks. Connect audio cables to the 5-pin terminal blocks. The NJR supports both balanced and unbalanced analog signals. AWG28 to AWG16 conductor gauge and a strip length of 0.28 in. (7 mm) are recommended. Up to 0.28"... -
Page 24: Connecting Lan Cable
NJR-T01SDI User Guide 8.3.6 Connecting LAN cable Pin assignment of the LAN connector is as follows. Auto MDI/MDI-X that detecting and switching straight cable/cross cable is supported. 8-pin RJ-45 Modular connector Signal name MDI-X number 1000BASE-T 100BASE-TX/10BASE-T 1000BASE-T 100BASE-TX/10BASE-T TRX+ (Transmitted & TX+ (Transmitted data＋) TRX+ (Transmitted &... -
Page 25: Din Plug Ac Adapter With Locking Mechanism
NJR-T01SDI User Guide 8.3.7 DIN plug AC adapter with locking mechanism The shapes of AC plugs with screw locking mechanism vary from country to country. The AC plug can be removed from the AC adapter. Removing AC plug: Slide the AC plug (②) from the AC adapter while holding down the portion mentioned below (①). ②... - Page 26 NJR-T01SDI User Guide ■ Plugging and unplugging DC plug Plug the DC plug to the power supply connector of the unit until it clicks. Hold the portion mentioned below when unplugging the DC plug. Hold this part and pull the DC plug. Plugging Unplugging [Fig.
-
Page 27: Setting Dip Switch
NJR-T01SDI User Guide 8.4 Setting DIP switch Use the DIP switch to change settings of the NJR-T01SDI RS-232C connector. DIP switch RS-232C connector NJR-T01SDI (Encoder) Video/audio D Cable driver SDI receiver Group B Video/audio D HDMI transmitter Group A IP-NINJAR series DIP switch PC for control decoders... -
Page 28: Basic Operation
NJR-T01SDI User Guide 9 Basic Operation NJR-T01SDI can be set by commands over RS-232C communication, NJR-CTB (control box for IP-NINJAR), or IP-NINJAR Configurator. PC for control PC for control (for communication (for IP-NINJAR Configurator) command) RS-232C Cable for extension HDMI 1080p 1080p Source device... -
Page 29: Ip-Ninjar Configurator (Setting Software For Ip-Ninjar)
NJR-T01SDI User Guide 9.2 IP-NINJAR Configurator (Setting software for IP-NINJAR) NJR-T01SDI connected to LAN can be set from the IP-NINJAR Configurator remotely over LAN communication. The following settings can be set from the GUI: selecting output audio, setting RS-232C, setting LAN, resetting settings, and rebooting NJR-T01SDI. -
Page 30: Control Over Njr-Ctb (Control Box For Ip-Ninjar)
NJR-T01SDI User Guide 9.3 Control over NJR-CTB (Control box for IP-NINJAR) The NJR-CTB is the integrated control unit for NP-NINJAR products connected to a network over a 10 GbE switch. The control box can control all devices and acquire their statuses using communication commands through WEB browser or LAN by connecting to IP-NINJAR products or 10 GbE switch. -
Page 31: Setting Items
NJR-T01SDI User Guide 9.4 Setting items Some setting items can be controlled through commands / GUI operation; the others cannot be controlled. [Table 9.1] Setting items C: Command input, G: GUI, W: WEB browser and command input, No: Not supported NJR-T01SDI Setting item Page... -
Page 32: Initialization
NJR-T01SDI User Guide 9.5 Initialization All user configurable settings can be reset to their respective factory default values using IP-NINJAR Configurator or NJR-CTB over LAN. When initialization completes, the NJR-T01SDI reboots with new settings automatically. Note: Once values are initialized, they cannot be restored. Communication command @CLRC Initialization 【See: 9.2 IP-NINJAR Configurator (Setting software for IP-NINJAR)】... -
Page 33: Setting
NJR-T01SDI User Guide 10 Setting The following items of NJR-T01SDI can be set using the RS-232C communication, IP-NINJAR Configurator, or NJR-CTB. Refer to NJR-CTB User Guide for the following operations: Using as Network Extender base on 10GbE Switcher, setting channel information, selecting input/output channel, operating preset memory, setting video wall, setting cross point, and setting NJR-CTB LAN. -
Page 34: Output Setting
NJR-T01SDI User Guide 10.1 Output setting 10.1.1 Setting output mode You can set the color space to be sent to the sink device. The sink device selects the best color space for the color space of the input video automatically, but if for some reason the sink device cannot select the color space, set the desired color space in the NJR-T01SDI. -
Page 35: Setting Hot Plug Masking
NJR-T01SDI User Guide 10.1.3 Setting hot plug masking You can set how long hot plug (signals for requesting video output) that is sent from a sink device will be ignored. If a sink device repeatedly sends requests to output video at short intervals, the NJR-T01SDI may not output video, because it sets output video every time receiving the signals. -
Page 36: Audio Setting
NJR-T01SDI User Guide 10.2 Audio setting 10.2.1 Muting digital audio You can enable or disable the audio output mute. Once you mute NJR-T01SDI, all audio of IP-NINJAR series decoders connected through the 10 GbE switch can be muted. If digital audio is output from the analog audio output connector of NJR-R01UHD, these output audio is also muted. -
Page 37: Input Setting
NJR-T01SDI User Guide 10.3 Input setting 10.3.1 Setting SDI input audio group Up to 16 audio channels are in SDI input audio, and these channels are divided into one to four groups by four channels. Selected two audio groups can be output as multi channel audio and can be specified as Primary or Secondary audio as follows. -
Page 38: Rs-232C Setting
NJR-T01SDI User Guide 10.4 RS-232C setting 10.4.1 RS-232C communication You can set the RS-232C communication between devices that connected to NJR-T01SDI / IP-NINJAR series decoders. The same setting should be set for NJR-T01SDI / IP-NINJAR series decoders. Notes: The RS-232C connector is used for two modes: controlling NJR-T01SDI and communicating between devices that connected to NJR-T01SDI / IP-NINJAR series decoders. -
Page 39: Lan Setting
NJR-T01SDI User Guide 10.5 LAN setting 10.5.1 LAN The IP address can be obtained automatically by DHCP (Dynamic Host Configuration Protocol). Static IP address, subnet mask, and default gateway can also be configured manually. Setting value [Table 10.3] Setting items of LAN communication Setting item Setting value Default... -
Page 40: Information
NJR-T01SDI User Guide 10.6 Information 10.6.1 Input video status You can view the input video status. Items to be acquired The number of horizontal active pixels The number of vertical active pixels Scanning method (Progressive/Interlaced) Frame rate [Hz] Dot clock [MHz] SDI format (SD-SDI / HD-SDI / 3G-SDI Level A / 3G-SDI Level B / 3G-SDI Level B (2xHD)) CEA-861 video code Color depth (8 bit / 10 bit / 12 bit) -
Page 41: Output Status
NJR-T01SDI User Guide 10.6.3 Output status You can view the status of sink device connected to the HDMI output connector. Items to be acquired Output signal type (HDMI/DVI) Communication command @GSS Getting I/O status 10.6.4 Sink device EDID You can view the EDID information of the sink device that is connected to the HDMI output connector. Items to be acquired Monitor name Resolution and pixel clock... -
Page 42: Product Specification
NJR-T01SDI User Guide 11 Product specification Item Description 1 input 3G-SDI / HD-SDI / SD-SDI NRZI / NRZ, 0.8 V[p-p] / 75 Ω Input SMPTE 424M (3G-SDI) / SMPTE 292M (HD-SDI) / SMPTE 259M-C (SD-SDI) Connector: BNC (*1) Cable: 75-Ω coaxial cable for high-frequency signals 1 output Digital signal for extension Connector: 2 LCs... -
Page 43: Troubleshooting
NJR-T01SDI User Guide 12 Troubleshooting In case the NJR-T01SDI does not work correctly, please check the following items first. Also refer to manuals for connected devices as well, since they may possibly be the cause of the problem. ・ Are the NJR-T01SDI and all devices plugged in and powered on normally? ・... - Page 44 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-259-6920 FAX: +81-46-259-6930 Email: info@arvanics.com URL: http://www.arvanics.com Information in this document is subject to change without notice. ©2019 IDK Corporation, all rights reserved. All trademarks mentioned are the property of their respective owners.
