SWF EMBROIDERY MACHINE
SU-M-26
[F3] SEQUIN DEVICE
A. Content
B. Order
C. Details
[Picture 1-1]
[Picture 1-2]
─ Ver.2009 1st
How to Set the Lifting Guide Shaft
No.
Order
1
Lightly tighten the base plate
fixing screws
2
Set the lifting slider
and replace the shaft
────────────────────── SunStar Co., Ltd ─
CD CODE No:
Tools Required
T-wrench or L-wrench(2,4MM)
1.Lightly Tighten the Base Plate Fixing Screws

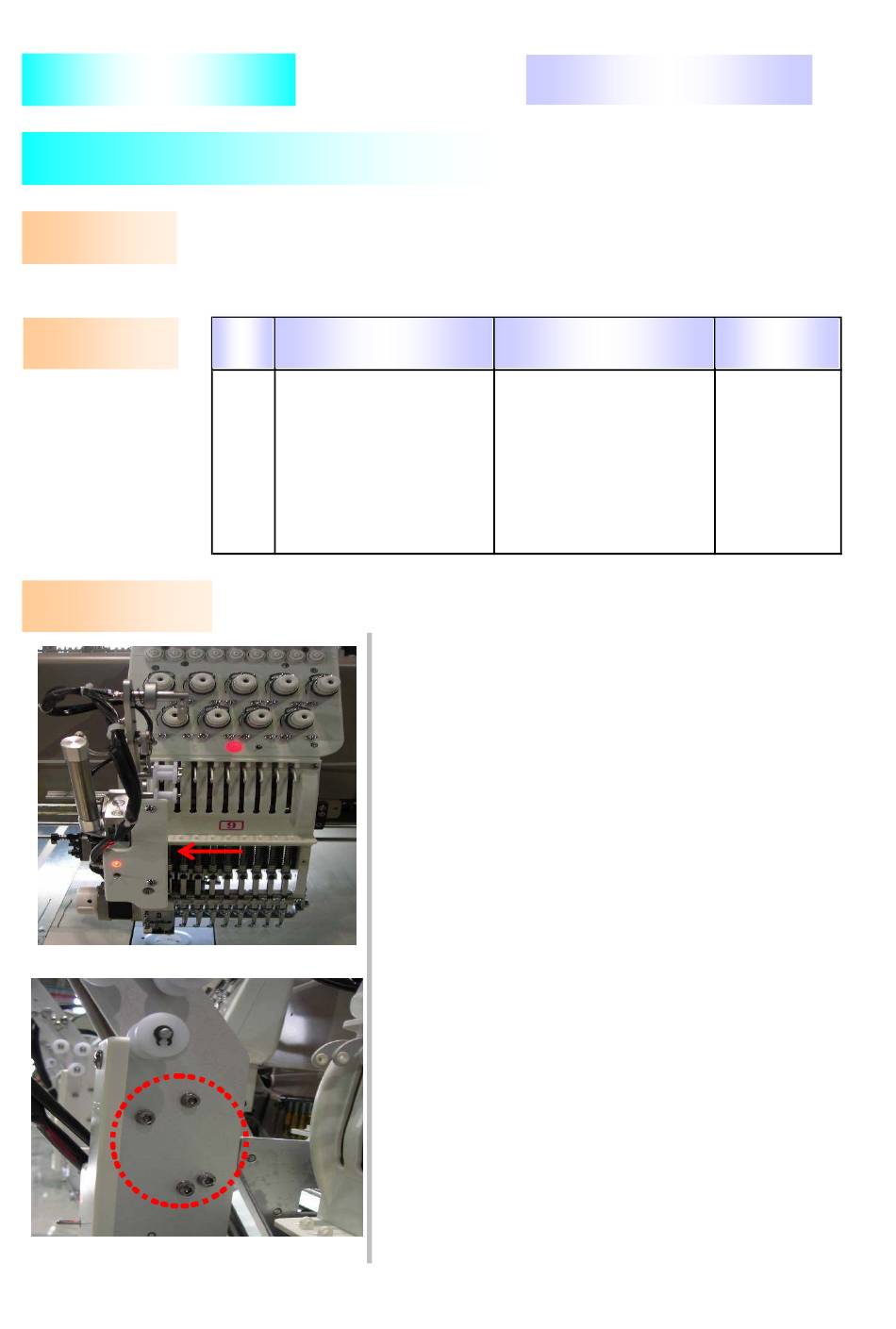

1) Check the position of screws inside of sequin
device. [Refer to Picture 1-1]
2) Use T or L wrench (4mm) to lightly loosen the base plate
fixing screws. [Refer to Picture 1-2]
JIG /
Instruments
Advertisement
Table of Contents
Related Manuals for SunStar SU-M-26
Summary of Contents for SunStar SU-M-26
- Page 1 1) Check the position of screws inside of sequin device. [Refer to Picture 1-1] [Picture 1-1] 2) Use T or L wrench (4mm) to lightly loosen the base plate fixing screws. [Refer to Picture 1-2] [Picture 1-2] ─ Ver.2009 1st ────────────────────── SunStar Co., Ltd ─...
- Page 2 Caution ) When you insert the lifting guide shaft into the lifting base after replacing it, 'A', end of the shaft, should point to the floor. [Picture2-3] ─ Ver.2009 1st ────────────────────── SunStar Co., Ltd ─...
