Setup and adjustment CO
Required material:
•
CO
Transmitter (CF5/8-Series)
2
•
CF5/8 Comm Cable
•
ROLINE USB to Serial Converter (Article No. 12.02.1089
•
Software UIP5 from SenseAir,
•
CO2 CALIBRATOR (for CO
Installation of USB to Serial Converter Cable:
•
Insert installation disk and follow the instructions on the screen.
•

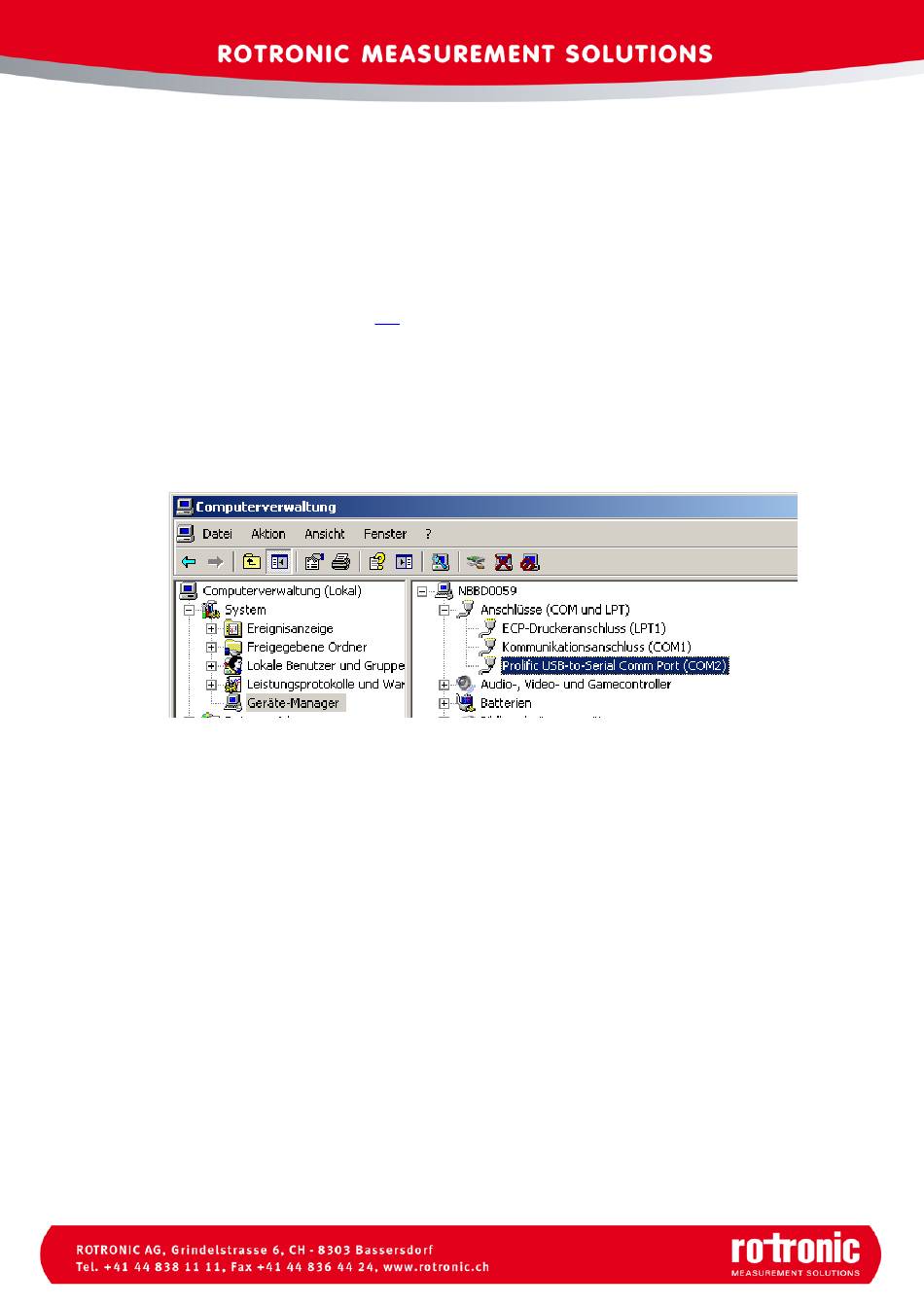

IMPORTANT: The cable must be configured from COM-Port 1 to 8 (Device Manager)
transmitter
2
link
calibration only)
2
)
