Summary of Contents for Rotronic HygroFlex HF3 Series

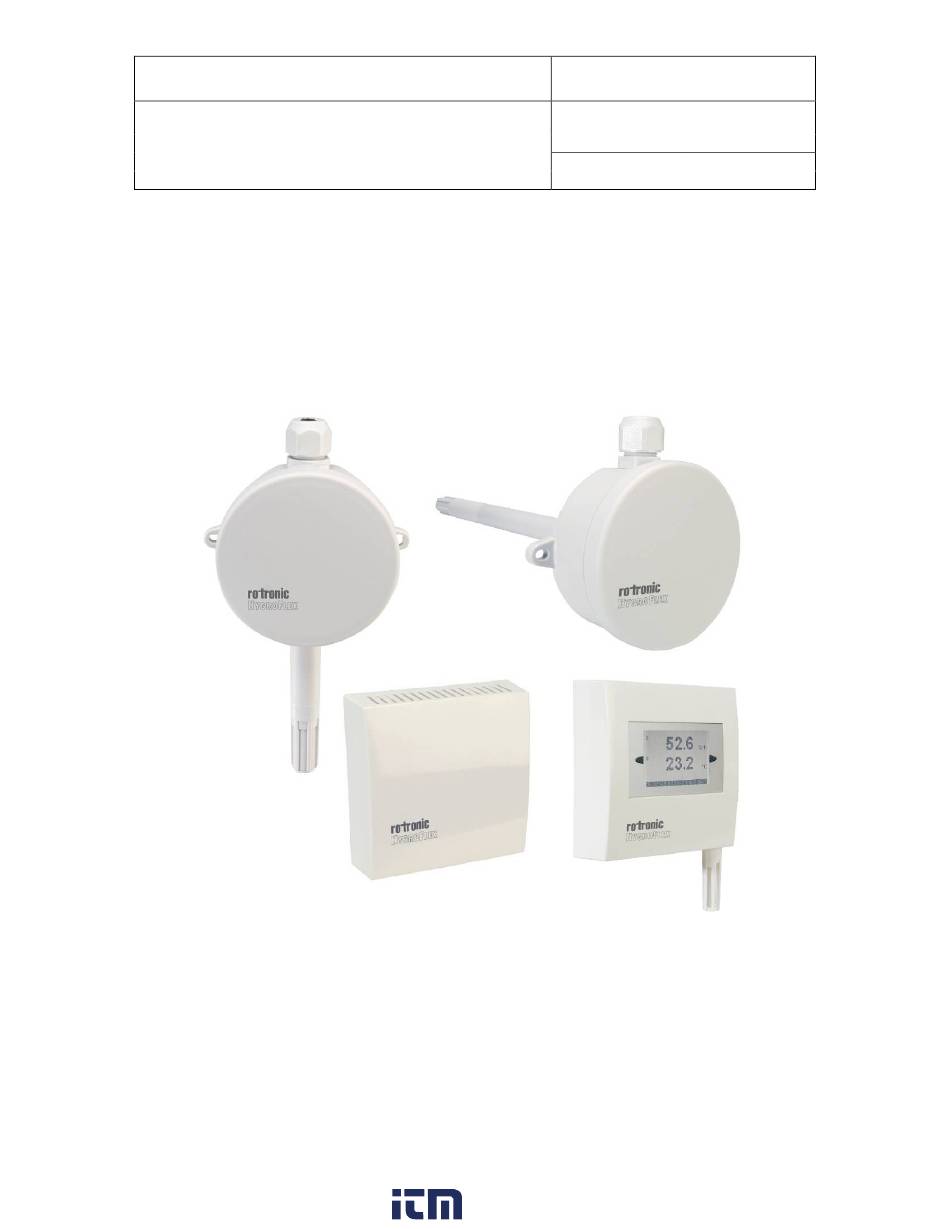

- Page 1 Rotronic AG E-M-HF3-V1_24 Bassersdorf, Switzerland HygroFlex HF3 Transmitters: User Guide Instruction Manual Page 1 of 27 HygroFlex HF3 Transmitters User Guide © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Cleaning or replacing the dust filter (type D and W) ................. 21 Firmware updates ..........................21 Technical data ............................ 22 10.1 Specifications ........................... 22 10.2 Dew point accuracy .......................... 25 Accessories ............................26 Supporting documents ........................26 Document releases ..........................27 © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. .com... -
Page 3: Overview
The HF3 features well proven sensors and a robust housing. Digital signal processing ensures consistent product performance and also facilitates the task of field maintenance with features such as potentiometer free - digital calibration. Based on the ROTRONIC AirChip 3000 digital technology, the HF3 series offers the following user functions: • User configurable settings •... -
Page 4: Mechanical Configurations And Dimensions
Rotronic AG E-M-HF3-V1_24 Bassersdorf, Switzerland HygroFlex HF3 Transmitters: User Guide Instruction Manual Page 4 of 27 Mechanical configurations and dimensions © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. .com... -
Page 5: Display Option
[ ! ] to the right of the value. For instructions see the following HW4 manual: E-M-HW4v3-F2-002. The display option for the HF33 has a backlight. The display option for the HF32 does not have a backlight. © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. -
Page 6: General Description
The HF3 measures relative humidity with a ROTRONIC Hygromer IN1 capacitive sensor and temperature with a Pt100 RTD. Calculated parameters Using the ROTRONIC HW4 software, the HF3 can be configured by the user to calculate either the dew point or the frost point. © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187... -
Page 7: Analog Output Signals (Hf32 And Hf33)
Instruction Manual Page 7 of 27 Analog output signals (HF32 and HF33) HF32 and HF33: with the ROTRONIC HW4 software any of the two analog output signals can be made to correspond to one of the following: • Relative humidity •... -
Page 8: Service Connector
The service connector is a UART digital interface (Universal Asynchronous Receiver Transmitter) with a mini- USB type connector. This allows connecting the HF3 either to a PC running the ROTRONIC HW4 software or to a probe input of another instrument that is compatible with the HygroClip 2 (HC2) probes. In both cases a service cable is required. -
Page 9: User Configurable Settings And Functions
HW4 software, time stamped and viewed MEASUREMENT LOOP VALIDATION AirChip 3000 Functions Description ► Simulator mode Used to generate fixed values for the humidity, temperature and calculated parameter. Can be configured, enabled or disabled © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. .com... - Page 10 ► Fail safe mode Used to specify a “safe” fixed value for humidity and for temperature in the event of a sensor failure. Can be configured, enabled or disabled © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www.
-
Page 11: Factory Default Settings
11 of 27 Factory default settings Note: Configuration of the HF3 by the user and access to its functions requires a PC with the ROTRONIC HW4 software (version 2.1.1 or higher) installed. Service cable AC3006 or AC3009 is used to connect the HF3 service connector to a USB port of the PC (see Maintenance >... -
Page 12: Mechanical Installation
The AC5005 allows easy installation and removal of the HF3. Type W – surface mount The transmitter housing can be attached to the mounting wall using screws with an approximate diameter of 3 mm (1/8”). © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. -
Page 13: Type R And S - Surface Mount
Note: dimensions in mm 5.4.1 Type S – Ventilation Insufficient ventilation on the Sensor can result in an additional temperature measurement error of +1,5 °C (self-heating effect). © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. .com... -
Page 14: Electrical Installation
When planning an installation, the rules provided by EN 50170 should be followed under consideration of local circumstances to determine the position of machines and equipment. All ROTRONIC products are tested for Electromagnetic Compatibility according to EMC Directive 2004/106/EG and following European standards:... -
Page 15: Cable Grip And Cable Specifications
This resistance should not exceed 500 ohms. © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. .com... - Page 16 The HF32 can be directly ordered from the factory to measure either humidity or temperature only. When necessary, any unused output of the HF32 can be disabled with the ROTRONIC HW4 software. When the HF32 is configured with one of the two outputs disabled, close only the loop that is being used.
- Page 17 Power supply: 18…40 VDC (+) or 13…28 VAC (Phase) Power supply (-) or neutral Relative humidity or dew point (+) OUT1 OUT-1 Temperature output (+) OUT2 OUT-2 Ground (tied with other GND) © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. .com...
- Page 18 Operation of the HF33 does not require both current loops to be closed. When using the HF33 to measure either humidity only or temperature only, close only the loop that is being used. If necessary, any unused output of the HF32 can be disabled with the ROTRONIC HW4 software. 6.3.3...
-
Page 19: Operation
5.0V 5 kOhm HF33 Voltage Output HF33 signal R pull-up ≥ 1 Mohm 0…1V 10.0V 1 kOhm ≥ 1 Mohm 0…5V 10.0V 5 kOhm ≥ 1 Mohm 0…10V 10.0V 10 kOhm © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. .com... -
Page 20: Maintenance
Both cables AC3006 and AC3009 convert UART (service connector) to USB and are used to connect the HF3 to a USB port of a PC running the ROTRONIC HW4 software. Prior to using any of these cables, the ROTRONIC USB driver must be installed on the PC. Both the driver and the installation instructions (document E-M-HW4v3-Main) are located on the HW4 CD. -
Page 21: Periodic Calibration Check
Use the appropriate model of service cable (see Maintenance > Service Cable) to connect the service connector of the HF3 to a USB port of a PC with the ROTRONIC HW4 software installed. Note that the ROTRONIC USB driver must be installed on the PC as explained in the HW4 manual E-M-HW4v3-Main •... -
Page 22: Technical Data
Start-up time and data refresh rate HF32 HF33 Start-up time 3.4s (typical) 1.9s (typical) Data refresh rate 3.4s (typical) 1.7s (typical) * Additional error in case of insufficient ventilation: +1,5 °C © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. .com... - Page 23 Minimum external load 10 kΩ (0…10 V output) 0 Ω (current output) Digital interface (service connector) HF32 HF33 Interface type UART (Universal Asynchronous Receiver Transmitter) Maximum service cable length 5 m (16.4 ft) © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. .com...
- Page 24 Maximum humidity at sensor 100 %RH Maximum air velocity at probe 20 m/s (3,935 ft /min), except type R and S Critical environments Humidity sensor: as per DV04-14.0803.02 – Critical chemicals © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. .com...
-
Page 25: 10.2 Dew Point Accuracy
Example: at a temperature of 10 ˚C, a dew point value of 0 ˚C is measured with an accuracy of ± 1.0 ˚C or better. © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. -
Page 26: Accessories
E-M-AC3000-CP AirChip 3000 Communication Protocol Temperature and humidity adjustment basics E-M-CalBasics Instructions for using the ROTRONIC humidity standards E-T-HumiDefs Humidity Definitions Note: All document file names have an extension corresponding to the document release number (example of a first release: E-M-HW4v3-Main_10). This extension is not shown in the above table. -
Page 27: Document Releases
2-wire and 3-wire models. HF34 removed (discontinued) Update for firmware v3.0 Jan. 13. 2014 Specification of power supply updated Offset of analog outputs updated Drawing of terminal block updated April 2016 Update Type S © 2009-2016; Rotronic AG E-M-HF3-V1_24 1.800.561.8187 information@itm.com www. .com...
