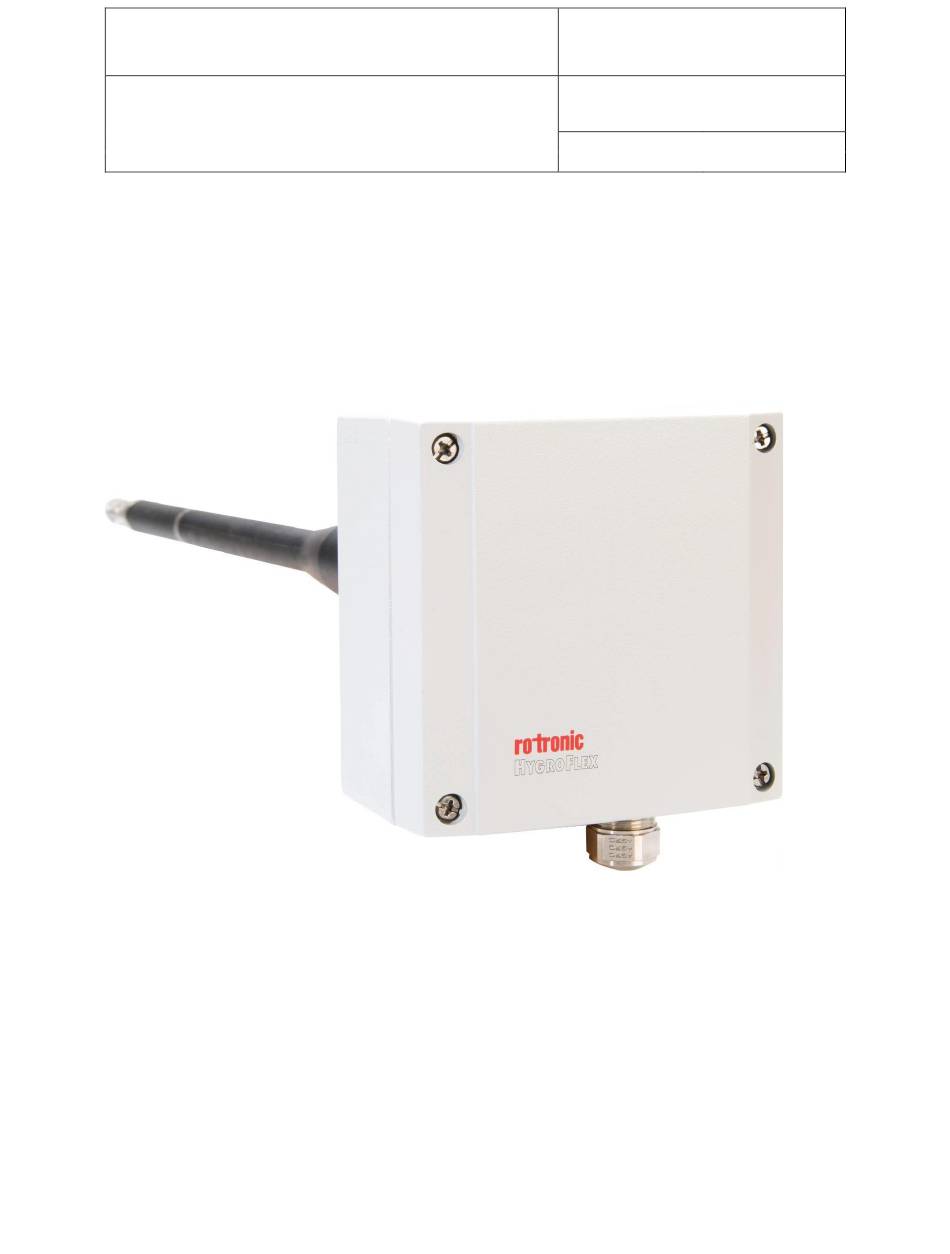

- Page 1 Rotronic AG E-M-HF732A-V1_0 Bassersdorf, Switzerland Document code Unit HygroFlex HF732A Humidity Temperature Instruction Manual Transmitters: User Guide Document Type Page 1 of 22 Document title HygroFlex HF732A Humidity Temperature Transmitters User Guide © 2015; Rotronic AG E-M-HF7-V1_27...
-
Page 2: Table Of Contents
Rotronic AG E-M-HF732A-V1_0 Bassersdorf, Switzerland Document code Unit HygroFlex HF732A Humidity Temperature Instruction Manual Transmitters: User Guide Document Type Page 2 of 22 Document title Table of contents Overview .............................. 3 Mechanical configurations and dimensions ..................4 General description ..........................4 Power supply ............................ -
Page 3: Overview
The HF7 features well proven sensors and a robust housing. Digital signal processing ensures consistent product performance and also facilitates the task of field maintenance with features such as potentiometer free – digital calibration. Based on the ROTRONIC AirChip 3000 digital technology the HF7 series offers the following functions: • User configurable settings •... -
Page 4: Mechanical Configurations And Dimensions
0…20 mA or 4 …20 mA outputs: 18 VDC or 13 VAC with 500 load Measured parameters ® The HF7 measures relative humidity with a ROTRONIC Hygromer HT-1 capacitive sensor and temperature with a Pt100 RTD. © 2015; Rotronic AG... -
Page 5: Calculated Parameters
Using the ROTRONIC HW4 software, the HF7 can be configured by the user to calculate either the dew point or the frost point. Analog output signals With the ROTRONIC HW4 software any of the two analog output signals can be made to correspond to one of the following: •... -
Page 6: Service Connector
The service connector is a UART digital interface (Universal Asynchronous Receiver Transmitter) with a mini- USB type connector. This allows connecting the HF7 either to a PC running the ROTRONIC HW4 software or to a probe input of another instrument that is compatible with the HygroClipAdvanced 2 (HC2A) probes. In both cases a service cable is required. -
Page 7: User Configurable Settings And Functions
Rotronic AG E-M-HF732A-V1_0 Bassersdorf, Switzerland Document code Unit HygroFlex HF732A Humidity Temperature Instruction Manual Transmitters: User Guide Document Type Page 7 of 22 Document title User configurable settings and functions The HF7 ships configured as specified on the customer order. The analog outputs can be used just as with any conventional humidity and temperature transmitter and most users will never need to use the HF7 configurable settings and functions. - Page 8 Rotronic AG E-M-HF732A-V1_0 Bassersdorf, Switzerland Document code Unit HygroFlex HF732A Humidity Temperature Instruction Manual Transmitters: User Guide Document Type Page 8 of 22 Document title MEASUREMENT LOOP VALIDATION AirChip 3000 Functions Description ► Simulator mode Used to make the HF7 generate fixed values for the humidity, temperature and calculated parameter.
-
Page 9: Factory Default Settings
Factory default settings Configuration of the HF7 by the user and access to its functions requires a PC with the ROTRONIC HW4 software (version 2.1.1 or higher) installed. Service cable AC3006 or AC3009 is used to connect the HF7 service connector to a USB port of the PC (see Maintenance >... -
Page 10: Mechanical Installation
Rotronic AG E-M-HF732A-V1_0 Bassersdorf, Switzerland Document code Unit HygroFlex HF732A Humidity Temperature Instruction Manual Transmitters: User Guide Document Type Page 10 of 22 Document title Mechanical installation General guidelines Relative humidity is extremely dependent on temperature. Proper measurement of relative humidity requires that the probe and its sensors be at exactly the temperature of the environment to be measured. -
Page 11: Electrical Installation
When planning an installation, the rules provided by EN 50170 should be followed under consideration of local circumstances to determine the position of machines and equipment. All ROTRONIC products are tested for Electromagnetic Compatibility according to EMC Directive 2004/106/EG and following European standards:... -
Page 12: Cable Grip And Cable Specifications
Rotronic AG E-M-HF732A-V1_0 Bassersdorf, Switzerland Document code Unit HygroFlex HF732A Humidity Temperature Instruction Manual Transmitters: User Guide Document Type Page 12 of 22 Document title Cable grip and cable specifications The HF7 is supplied either with one M16 sealing cable. The M16 cable grip provides effective sealing only with cables having the proper outside diameter. - Page 13 Operation of the HF73 does not require both current loops to be closed. When using the HF73 to measure either humidity only or temperature only, close only the loop that is being used. Using the ROTRONIC HW4 software, any unused output of the HF73 can be disabled. 6.3.2...
-
Page 14: Operation
Rotronic AG E-M-HF732A-V1_0 Bassersdorf, Switzerland Document code Unit HygroFlex HF732A Humidity Temperature Instruction Manual Transmitters: User Guide Document Type Page 14 of 22 Document title Operation Minimum load requirements for the HF73 with voltage outputs The following requirements apply to any external device or circuit connected to the HF73 transmitter with voltage... -
Page 15: Service Cable
Both cables AC3006 and AC3009 convert UART (service connector) to USB and are used to connect the transmitter to a USB port of a PC running the ROTRONIC HW4 software. Prior to using any of these cables, the ROTRONIC USB driver must be installed on the PC. Both the driver and the installation instructions (document E-M-HW4v3-Main) are located on the HW4 CD. -
Page 16: Location Of The Service Connector (Mini Usb Type)
Rotronic AG E-M-HF732A-V1_0 Bassersdorf, Switzerland Document code Unit HygroFlex HF732A Humidity Temperature Instruction Manual Transmitters: User Guide Document Type Page 16 of 22 Document title Location of the service connector (mini USB type) WARNING: the service connector is a UART interface with a mini-USB connector type. Do not connect the service connector directly to the USB port of a PC or hub. -
Page 17: Periodic Calibration Check
Use the appropriate model of service cable (see Maintenance > Service Cable) to connect the service connector of the HF7 to a USB port of a PC with the HW4 software installed. Note that the ROTRONIC USB driver must be installed on the PC as explained in the HW4 manual E-M-HW4v3-Main. -
Page 18: Firmware Updates
Use the appropriate model of service cable (see Maintenance > Service Cable) to connect the service connector of the HF7 to a USB port of a PC with the ROTRONIC HW4 software installed. Note that the ROTRONIC USB driver must be installed on the PC as explained in the HW4 manual E-M-HW4v3- Main. -
Page 19: Technical Data
Rotronic AG E-M-HF732A-V1_0 Bassersdorf, Switzerland Document code Unit HygroFlex HF732A Humidity Temperature Instruction Manual Transmitters: User Guide Document Type Page 19 of 22 Document title Technical data Specifications General HF73 Device type Humidity temperature transmitter with analog output signals Circuit type... - Page 20 Rotronic AG E-M-HF732A-V1_0 Bassersdorf, Switzerland Document code Unit HygroFlex HF732A Humidity Temperature Instruction Manual Transmitters: User Guide Document Type Page 20 of 22 Document title Start-up time and data refresh rate HF73 Start-up time 1.9 s (typical) Data refresh rate 1.7 s (typical)
-
Page 21: Dew Point Accuracy
Rotronic AG E-M-HF732A-V1_0 Bassersdorf, Switzerland Document code Unit HygroFlex HF732A Humidity Temperature Instruction Manual Transmitters: User Guide Document Type Page 21 of 22 Document title Conformity with standards HF73 EMC Directive 2004/108/EG: EN 61000-6-1: 2001, EN 61000-6-2: 2005 CE / EMC immunity... -
Page 22: Accessories
Temperature and humidity calibration basics Humidity Definitions E-T-HumiDefs Instructions for using the ROTRONIC humidity standards Note: All document file names have an extension corresponding to the document release number (example of a first release: E-M-HW4v3-Main_10). This extension is not shown in the above table.
