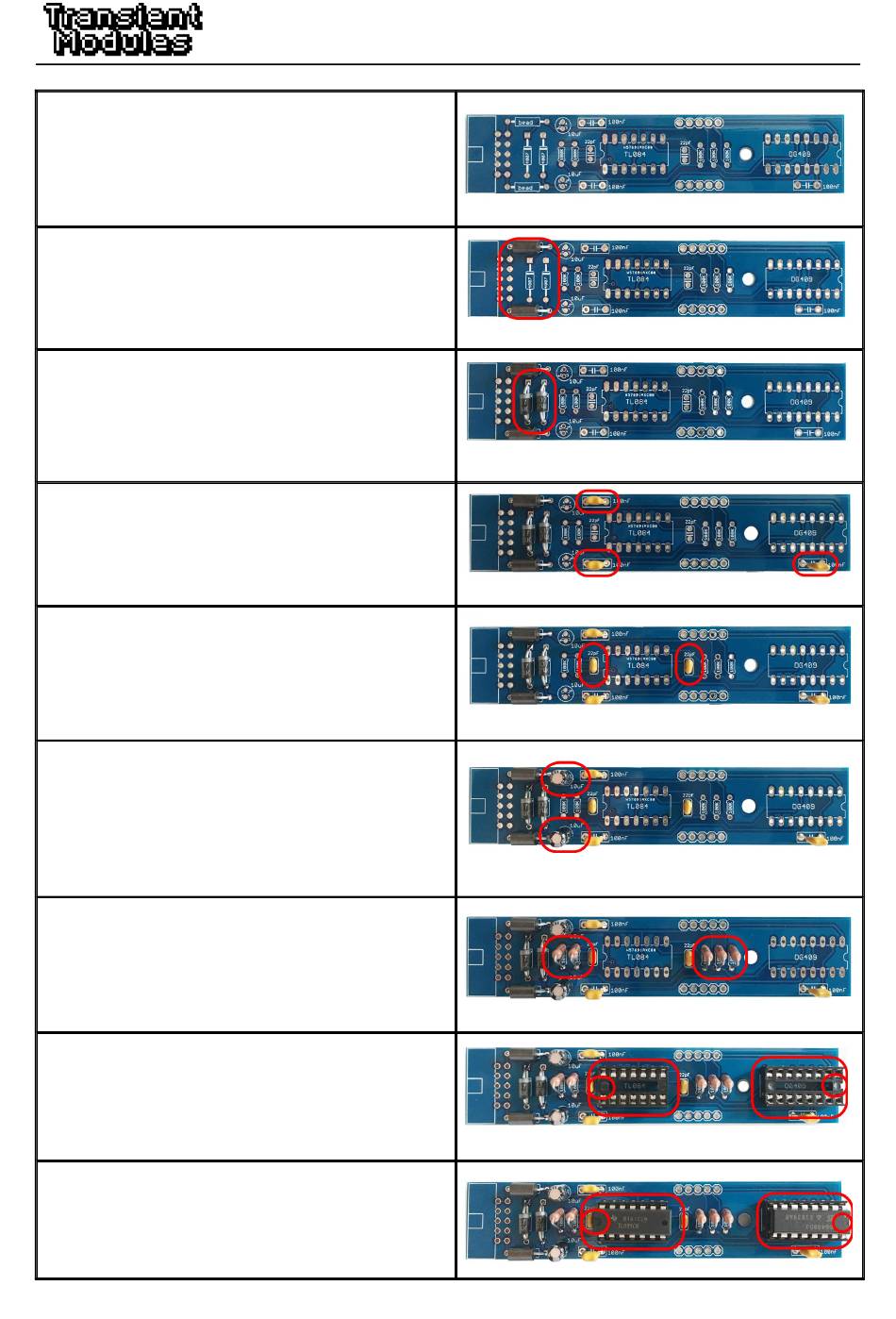

1. Let's begin with the back PCB. Start by
emptying the bag into a bowl or container.
This makes it easier to pick parts as you
need them and you're a lot less likely to lose
anything.
2. Solder the two ferrite beads.
3. Solder the two 1N4007 diodes.
NOTE! The gray ring on the diode should match
the silkscreen on the PCB.
4. Solder the 3x 100nF capacitors (104).
5. Solder the 2x 22pF capacitors (220).
6. Solder the two 10uF electrolytic capacitors
(labelled 10uF).
NOTE!
The longer leg should be positioned in
the pad marked with the positive symbol.
7. Solder the fve 100K (0.1% tolerance)
resistors. They're larger than the space on
the board. Place them standing up, as
shown.
8. Solder the IC Sockets. Make sure the
notches in the sockets match the silkscreen.
9. Take the TL084 and the DG409 and place
them in the sockets with the notch on the
top face at the same end as the notch in the
socket and silkscreen.
