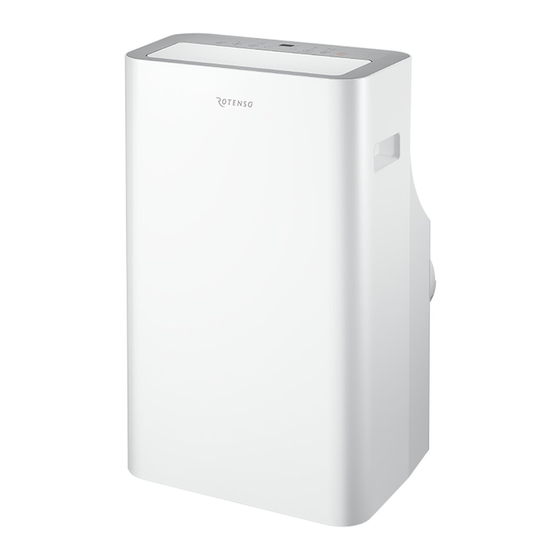

- Page 1 ORTA W User manual Orta O26W...
-
Page 2: Table Of Contents
ORTA W - Portable air conditioner ORTA W - PORTABLE AIR CONDITIONER User manual Contents SAFETY PRECAUTIONS....................................3 PART 1. CONSTRUCTION OF THE DEVICE ............................10 Construction of the unit....................................10 PART 2. INSTALLATION .....................................11 Location ..........................................11 Accessories ........................................11 Window installation kit ....................................12 Optional installation .......................................13 PART 3. -
Page 3: Safety Precautions
ORTA W - Portable air conditioner SAFETY PRECAUTIONS WARNING Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and air-conditioning equipment can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person could result in death or serious injury. - Page 4 ORTA W - Portable air conditioner SAFETY PRECAUTIONS WARNING To prevent death or injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage. •...
- Page 5 ORTA W - Portable air conditioner SAFETY PRECAUTIONS CAUTION • The appliance shall be installed in accordance with national wiring regulations. • Contact the authorised service technician for repair or maintenance of this unit. • Hold the plug by the head of the power plug when taking it out. •...
- Page 6 ORTA W - Portable air conditioner SAFETY PRECAUTIONS CAUTION • Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.
- Page 7 ORTA W - Portable air conditioner SAFETY PRECAUTIONS Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.
- Page 8 ORTA W - Portable air conditioner SAFETY PRECAUTIONS satisfactorily dealt with. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include: That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; That there no live electrical components and wiring are exposed while charging, recovering or purging the system;...
- Page 9 ORTA W - Portable air conditioner SAFETY PRECAUTIONS The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task.
-
Page 10: Part 1. Construction Of The Device
ORTA W - Portable air conditioner PART 1. CONSTRUCTION OF THE DEVICE 1. CONSTRUCTION OF THE UNIT Fig. 1 Fig. 2 1. Control panel 9. Air outlet 2. Horizontal louver blade 10. Lower air filter 3. Handle (both sides) 11. Lower air intake 4. -
Page 11: Part 2. Installation
ORTA W - Portable air conditioner PART 2. INSTALLATION 1. LOCATION Choosing The Right Location Your installation location should meet the following requirements: • Make sure that you install your unit on an even surface to minimize noise and vibration. •... -
Page 12: Window Installation Kit
ORTA W - Portable air conditioner PART 2. INSTALLATION Part Description Part Description Screw and anchor * Drain Hose Adaptor(only for 4 pc 1 pc (only for wall installation) heat pump mode) Window Slider A * 1 pc Foam Seal A (Adhesive)* 2 pc Foam Seal B (Adhesive) * 1 pc... -
Page 13: Optional Installation
ORTA W - Portable air conditioner PART 2. INSTALLATION 4. OPTIONAL INSTALLATIONS TYPE 1: Hung Window or Sliding Window Installation 1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash and frame as shown. - Page 14 ORTA W - Portable air conditioner PART 2. INSTALLATION TYPE 2: Wall Installation 1. Cut a 125mm (4.9inch) hole into the wall for the Wall Exhaust Adaptor B. 2. Secure the Wall Exhaust Adaptor B to the wall using the four Anchors and Screws provided in the kit. 3.
-
Page 15: Part 3. Operating The Unit
ORTA W - Portable air conditioner PART 3. OPERATING THE UNIT 1. TOUCH CONTROL PANEL 12 10 15 16 17 Fig. 15 Element Function Element Function Timer ON LED display Timer OFF Degrees Celsius AUTO mode light Degrees Fahrenheit COOL mode light Humidity (on some models) DRY mode light FILTER light... -
Page 16: Part 4. Operations And Functions
ORTA W - Portable air conditioner PART 4. OPERATIONS AND FUNCTIONS 1. BUTTON FUNCTIONS SWING button/Wireless button Used to initiate the AUTO SWING feature. When the operation is ON, press the SWING button can stop the louver at the desired angle. Used to initiate the Wireless connection mode. -
Page 17: Operations
ORTA W - Portable air conditioner PART 4. OPERATIONS AND FUNCTIONS UP (+) and DOWN (-) buttons Used to adjust (increasing/decreasing) temperature settings in 1°C/1°F(or2°F) increments in a range of 17°C/62°F to 30°C/86°F(or 88°F) or the TIMER setting in a range of 0~24hrs or The humidity settings in a range of 35%RH(Relative Humidity) to 85%RH (Relative Humidity) in 5% increments(only for models with humidity sensor). -
Page 18: Other Features
ORTA W - Portable air conditioner PART 4. OPERATIONS AND FUNCTIONS 4. AUTO operation • When you set the air conditioner in AUTO mode, it will automatically select cooling, or fan only operation depending on what temperature you have selected and the room temperature. •... -
Page 19: Water Drainage
ORTA W - Portable air conditioner PART 4. OPERATIONS AND FUNCTIONS 2. AUTO-RESTART(on some models) If the unit breaks off unexpectedly due to the power cut,it will restart with the previous function setting automatically when the power resumes. 3. WAIT 3 MINUTES BEFORE RESUMING OPERATION After the unit has stopped, it can not be restarted operation in the first 3 minutes. - Page 20 ORTA W - Portable air conditioner PART 4. OPERATIONS AND FUNCTIONS NOTE Make sure the hose is secure so there are no leaks. Direct the hose toward the drain, making sure that there are no kinks that will stop the water flowing. Place the end of the hose into the drain and make sure the end of the hose is down to let the water flow smoothly.
-
Page 21: Part 5. Maintenance
ORTA W - Portable air conditioner PART 5. MAINTENANCE WARNING • Always unplug the unit before cleaning or servicing. • DO NOT use flammable liquids or chemicals to clean the unit. • DO NOT wash the unit under running water. Doing so causes electrical danger. •... -
Page 22: Part 6. Faults Diagnosis
ORTA W - Portable air conditioner PART 6. FAULTS DIAGNOSIS Please check the machine according to the following form before asking for maintenance. Problem Description Solution The Water Collection Tray is full. Turn off the P1 Error Code unit, drain the water from the Water Collection Unit does not turn on Tray and restart the unit. -
Page 23: Part 7. Handling Handling Remote Control
ORTA W - Portable air conditioner PART 7. HANDLING HANDLING REMOTE CONTROL 1. TECHNICAL SPECIFICATIONS Model MAZE Power 3.0V (Bateries R03/LR03 2) Range Working temperature -5 °C ~ 60°C 2. REMOTE LED SCREEN INDICATORS 1. Transmission Indicator (optional) Lights up when remote sends signal to unit 2. -
Page 24: Function Buttons
ORTA W - Portable air conditioner PART 7. HANDLING HANDLING REMOTE CONTROL 3. FUNCTION BUTTONS 1. ON/OFF Turns the unit on or off. 2. MODE Scrolls through operation modes as follows: AUTO COOL HEAT NOTE: HEAT is Not available for this unit. Heat mode is not supported by the cooling only appliance. -
Page 25: Inserting And Replacing Batteries
ORTA W - Portable air conditioner PART 7. HANDLING HANDLING REMOTE CONTROL NOTE • Button designs on your unit may differ slightly from the example shown. • If the unit does not have a particular function, pressing that function s button on the remote control will have no effect. -
Page 26: Setting Temperatures
ORTA W - Portable air conditioner PART 7. HANDLING HANDLING REMOTE CONTROL 6. SETTING TEMPERATURES The operating temperature range for units is 17-30°C (62°F-86°F). You can increase or decrease the set temperature in 1°C (1°F) increments. 7. BASIC FUNCTIONS 1. AUTO operation In AUTO mode, the unit will automatically select the COOL, FAN, HEAT or DRY mode based on the set temperature. - Page 27 ORTA W - Portable air conditioner PART 7. HANDLING HANDLING REMOTE CONTROL 1. Press the TIMER ON button. By default, the last time period that you set and an "h" (indicating hours) will appear on the display. NOTE: This number indicates the amount of time after the current time that you want the unit to turn on. For example, if you set TIMER ON for 2 hours, "2.0h"...
- Page 28 ORTA W - Portable air conditioner PART 7. HANDLING HANDLING REMOTE CONTROL NOTE When setting the TIMER ON or TIMER OFF functions, up to 10 hours, the time will increase in 30 minute increments with each press. After 10 hours and up to 24, it will increase in 1 hour increments. The timer will revert to zero after 24 hours.
-
Page 29: Advanced Functions
ORTA W - Portable air conditioner PART 7. HANDLING HANDLING REMOTE CONTROL Unit turns Unit turns Timer starts Current time 1PM 6 hours later 8 hours later 3. ADVANCED FUNCTIONS 1. SLEEP Function The SLEEP function is used to decrease energy use while you sleep (and don t need the same temperature settings to stay comfortable). - Page 30 ORTA W - Portable air conditioner KART GWARANCYJNA The warranty is only valid with proof of purchase Indoor unit model Serial number Seller's stamp and signature Intaller's stamp and signature Sales data: Date of assembly: Invoice number: Place of assembly: I accept the terms of the warranty Seller's stamp and signature and I confirm the receipt of efficient unit...
- Page 31 ORTA W - Portable air conditioner User manual...
- Page 32 Installer stamp...
