A v a y a ™
M o d u l a r M e s s a g i n g

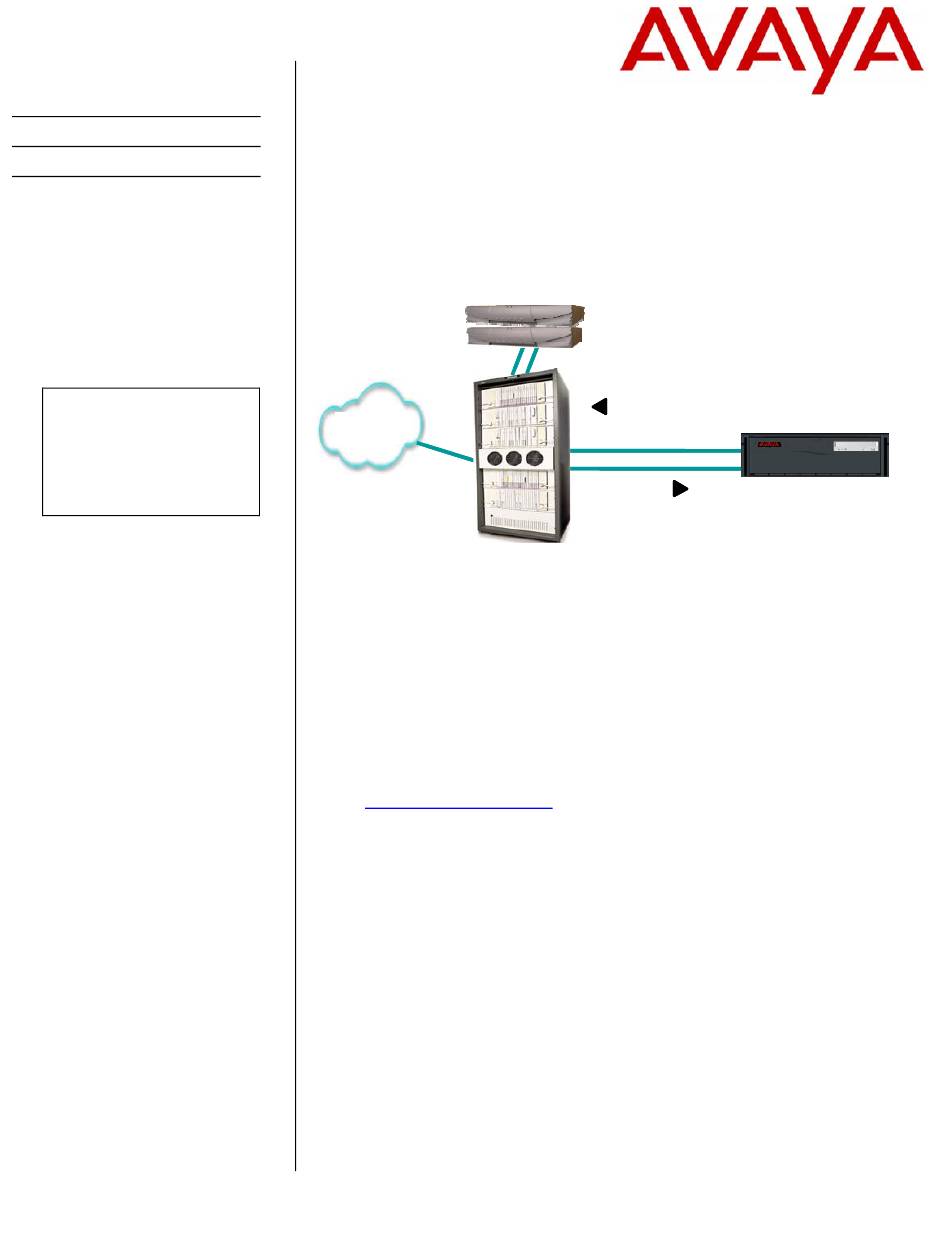

The PBX and MM are
assumed to be collocated.
For other configurations
please consult with the
Switch Integrations group.
With E1 QSIG, one digital
pathway between the PBX and
the Avaya Message Application
Server transmits both call
information and voice
communications
Configuration Note 88502 –
AVAYA Definity G3, Prologix &
S87x0/S8xx0 - EMEA
/
E1
QSIG
PSTN
PSTN
Minimum Software:
Minimum Software:
Refer to Section 3.1
Refer to Section 3.1
Overview
This Configuration Note is intended for Avaya certified Modular Messaging
technicians/engineers who are familiar with Modular Messaging
procedures and terminology. It also assumes that you are Avaya certified
or very familiar with the features and functionality of the Avaya PBXs
supported in this Configuration Note and the QSIG protocol.
Use this document in conjunction with Modular Messaging Installation Guide and
the Avaya PBX Administration Guide.
Please read the entire document before attempting any
1.0 METHOD OF INTEGRATION
With E1 QSIG integration, one digital pathway between the Avaya™ PBX
and the Avaya Message Application Server (MAS) transmits both call
information and voice communications. The pathway is provided by an
ISDN digital link (QSIG), which provides channels that connect to the
Dialogic E1 card. Within the D-Channel, routing information is sent to the
MAS containing information regarding the source of the call with reason
codes. The MAS processes call information from the supplementary code
in the D-Channel, which routes call reasons directly to mailboxes.
Message-Waiting indication is set and canceled using the supplementary
code service. Voice is carried through the system in digital format.
Disclaimer: Configuration Notes are designed to be a general guide reflecting AVAYA Inc. experience configuring its systems. These
notes cannot anticipate every configuration possibility given the inherent variations in all hardware and software products. Please
understand that you may experience a problem not detailed in a Configuration Note. If so, please notify the Technical Assistance Center
at (800) 876-2835, and if appropriate we will include it in our next revision. AVAYA Inc. accepts no responsibility for errors or omissions
contained herein.
Version AH (7/09)
Avaya PBX
Avaya PBX
Automated Attendant
Automated Attendant
Return to Operator
Return to Operator
Application Server
Application Server
Message Waiting
Message Waiting
Call ID
Call ID
configuration.
Message
Message
Supported Versions:
Supported Versions:
See section 2.0
See section 2.0
