Trend Micro txOne Networks EdgeIPS Quick Setup Manual page 5

Appendix : Connecting to the Console Port
The EdgeIPS console port is a USB Type–C Port located on the front panel of the
case. It is designed for connection to serial console terminals for viewing
messages during the boot sequence or for debugging system boot issues. To
connect the console cable, remove the protective cover on the port.

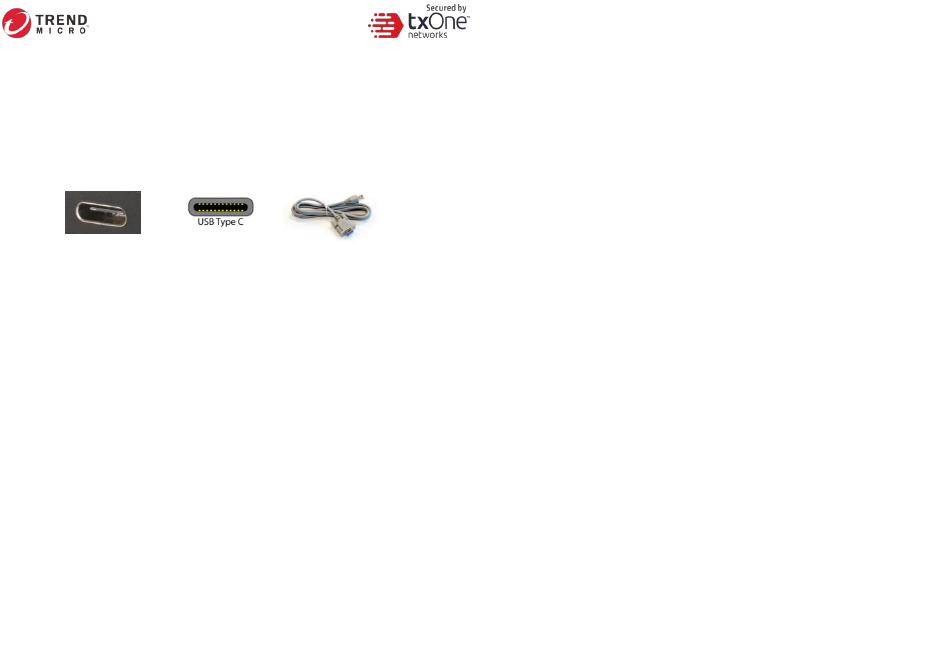

Serial Console Port, Cable & Pinouts
The initial configuration for the EdgeIPS using the command line interface (CLI) on a
serial terminal client will use the following default settings:
• Baud Rate: 115200 bps
• Character size: 8 bits
• Parity: None
• Stop Bits: 1
• Flow Control: None
