8. Wriing the Redundant Power Inputs

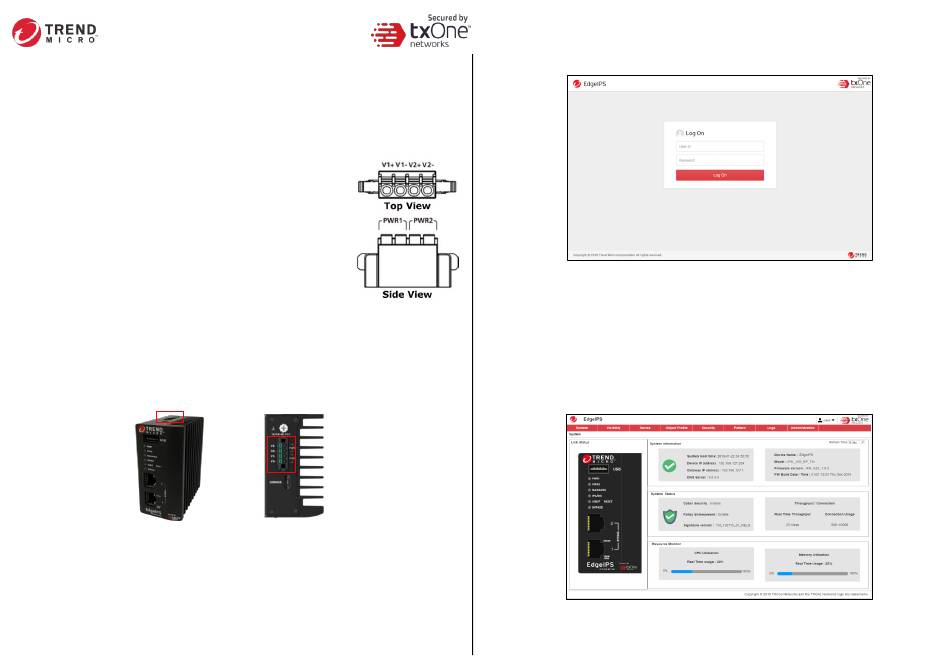

The Trend Micro EdgeIPS has two sets of power inputs – power input1 and power input2. The
top and side views of the terminal block connector are shown below.
STEP 1:
Open the terminal block's wire locks by pushing the buttons down.
STEP 2:
Insert a positive / negative DC wire into the V+/V- terminals
respectively.
STEP 3:
When the wire is properly seated, the wire lock will be forced shut
around it. Check whether the wire is properly fixed.
9. Connecting the Power
Connect the 12 to 48 VDC power line to the terminal block, which is connected to the EdgeIPS
device. If the power is supplied properly, the "Power" LED will glow steadily. The power input
location and pin definition are shown in the following diagram.
10. Grounding the Unit
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the terminal block connector to the grounding surface
prior to connecting the power. Please note that this product is intended to be mounted on a
well-grounded mounting surface, such as a metal panel. The minimum cross-sectional area of
the conductor must be equal to the input wiring cable's width/circumference
11. Software Configuration
Before connecting the PC/Laptop to EdgeIPS, the PC's IP address should be set to
192.168.127.100. After that, connect the PC and EdgeIPS using an Ethernet cable. Open a
web browser on your PC and type "https://192.168.127.254" into the address bar. A pop-up
window will open to ask for user name and password. Please type the default username,
"admin", and password, "txone".
Now, the main screen will pop up so you can configure EdgeIPS.
.
