5.

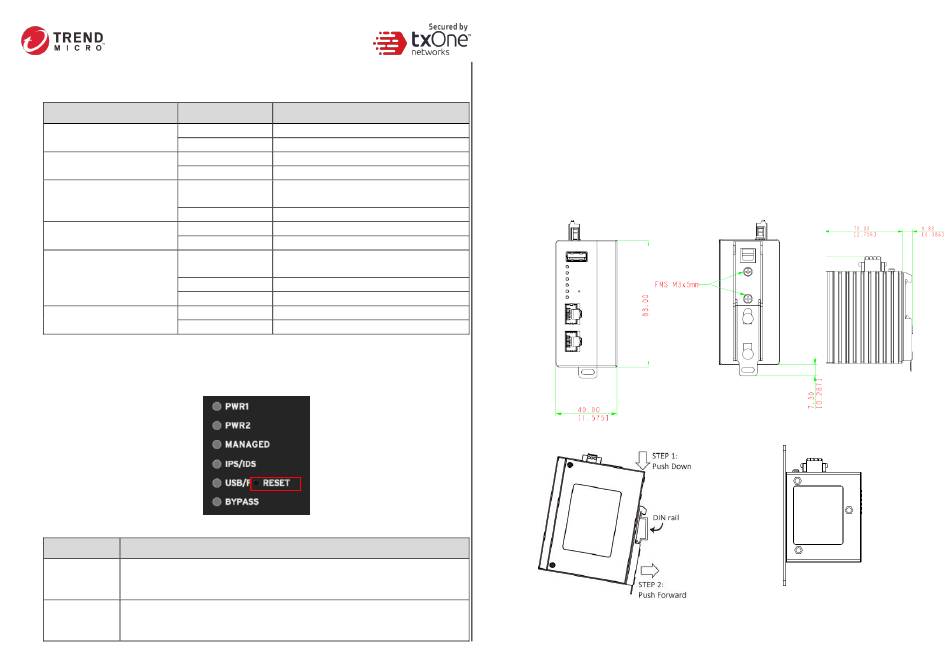

LED Indicators
The function of each LED is described in the table below
LED Name Status
Amber
PWR1
Off
Amber
PWR2
Off
Green
MANAGED
Off
Green
IPS/IDS
Off
Green
USB/F
Red
Blinking
Amber
BYPASS
Off
6.
Reset to factory default setting
The reset button for the EdgeIPS is located on the front panel.
Reset type Description
Press and hold the reset button for 2 to 10 seconds. The MANAGED LED will begin
Reboot System
to blink on a 1-second pattern, which means the system is rebooting.
Press and hold the reset button for more than 10 seconds. The MANAGED LED will
Restore Factory
begin to blink every half-second, which means the system is resetting itself to
Default Settings
factory defaults.
Function
Power 1 is ON
Power 1 is OFF
Power 2 is ON
Power 2 is OFF
OT Defense Console Sync (ODC) is
enabled and ODC is connected
OT Defense console sync is disabled
IPS and IDS enabled
IPS and IDS disabled
LED will be turned on when USB is plugged
in
Hardware or system fault
USB data transmission
Hardware bypass mode enabled
Hardware bypass mode disabled
7.
Installing the EdgeIPS
DIN Rail Mounting
The aluminum DIN Rail attachment plate should already be fixed to the back panel of
the EdgeIPS when you take it out of the box. If you need to reattach the DIN Rail
attachment plate to the EdgeIPS, make sure the stiff metal spring is oriented towards
the top, as shown in the following pictures.
