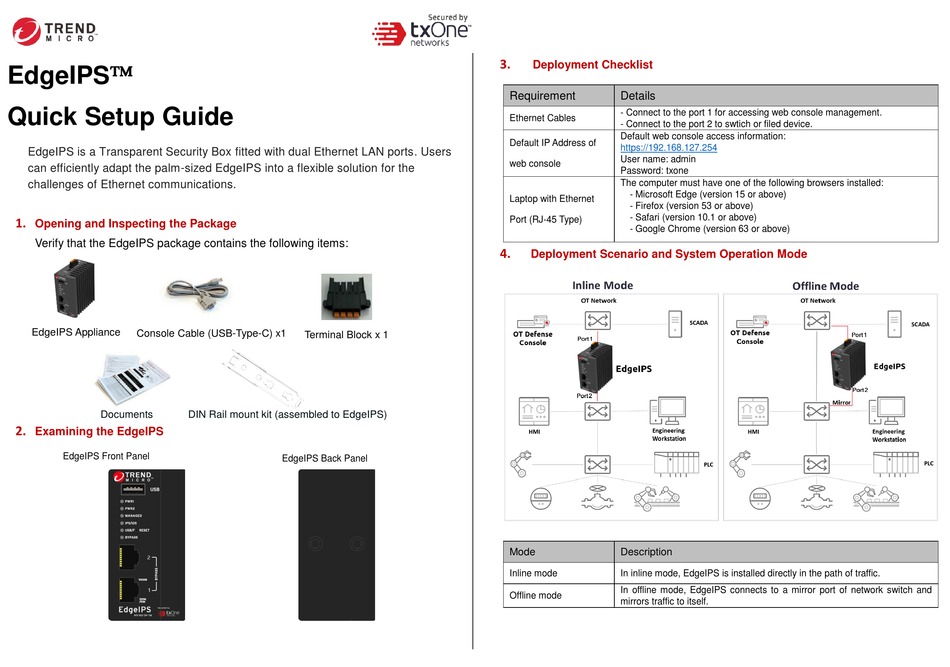

EdgeIPS
Quick Setup Guide
EdgeIPS is a Transparent Security Box fitted with dual Ethernet LAN ports. Users
can efficiently adapt the palm-sized EdgeIPS into a flexible solution for the
challenges of Ethernet communications.
1.
Opening and Inspecting the Package
Verify that the EdgeIPS package contains the following items:
EdgeIPS Appliance
Console Cable (USB-Type-C) x1
Documents
2.
Examining the EdgeIPS
EdgeIPS Front Panel
Terminal Block x 1
DIN Rail mount kit (assembled to EdgeIPS)
EdgeIPS Back Panel
3.
Deployment Checklist
Requirement Details
- Connect to the port 1 for accessing web console management.
Ethernet Cables
- Connect to the port 2 to swtich or filed device.
Default web console access information:
Default IP Address of
https://192.168.127.254
User name: admin
web console
Password: txone
The computer must have one of the following browsers installed:
- Microsoft Edge (version 15 or above)
Laptop with Ethernet
- Firefox (version 53 or above)
- Safari (version 10.1 or above)
Port (RJ-45 Type)
- Google Chrome (version 63 or above)
4.
Deployment Scenario and System Operation Mode
Mode Description
Inline mode In inline mode, EdgeIPS is installed directly in the path of traffic.
In offline mode, EdgeIPS connects to a mirror port of network switch and
Offline mode
mirrors traffic to itself.
