FrSky ARCHER M+ Instruction Manual

Introduction

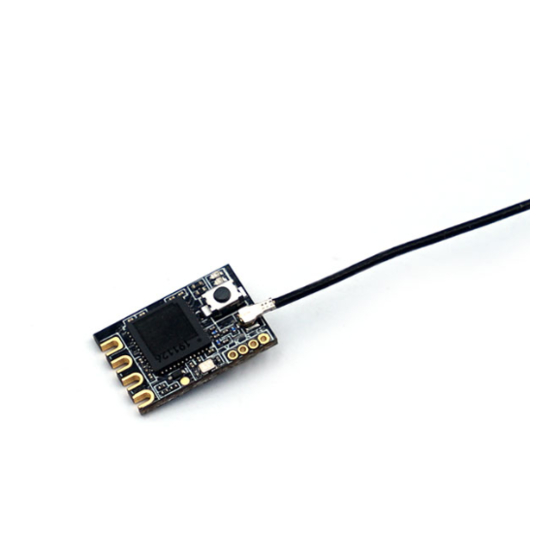

The ARCHER M+ receiver features its tiny form factor and new ACCESS protocol. ACCESS provides the lower
latency and increased performance of our previous XM+ receivers. With OTA (Over-The-Air) function support
firmware upgrades will be very easy, no more wires.
The ARCHER M+ has an S.Port/F.Port that makes this tiny receiver also support the telemetry function with around
500 to 600 meters telemetry range. Now you can enjoy the audio feedback with it from your FrSky ACCESS enabled
transmitter.

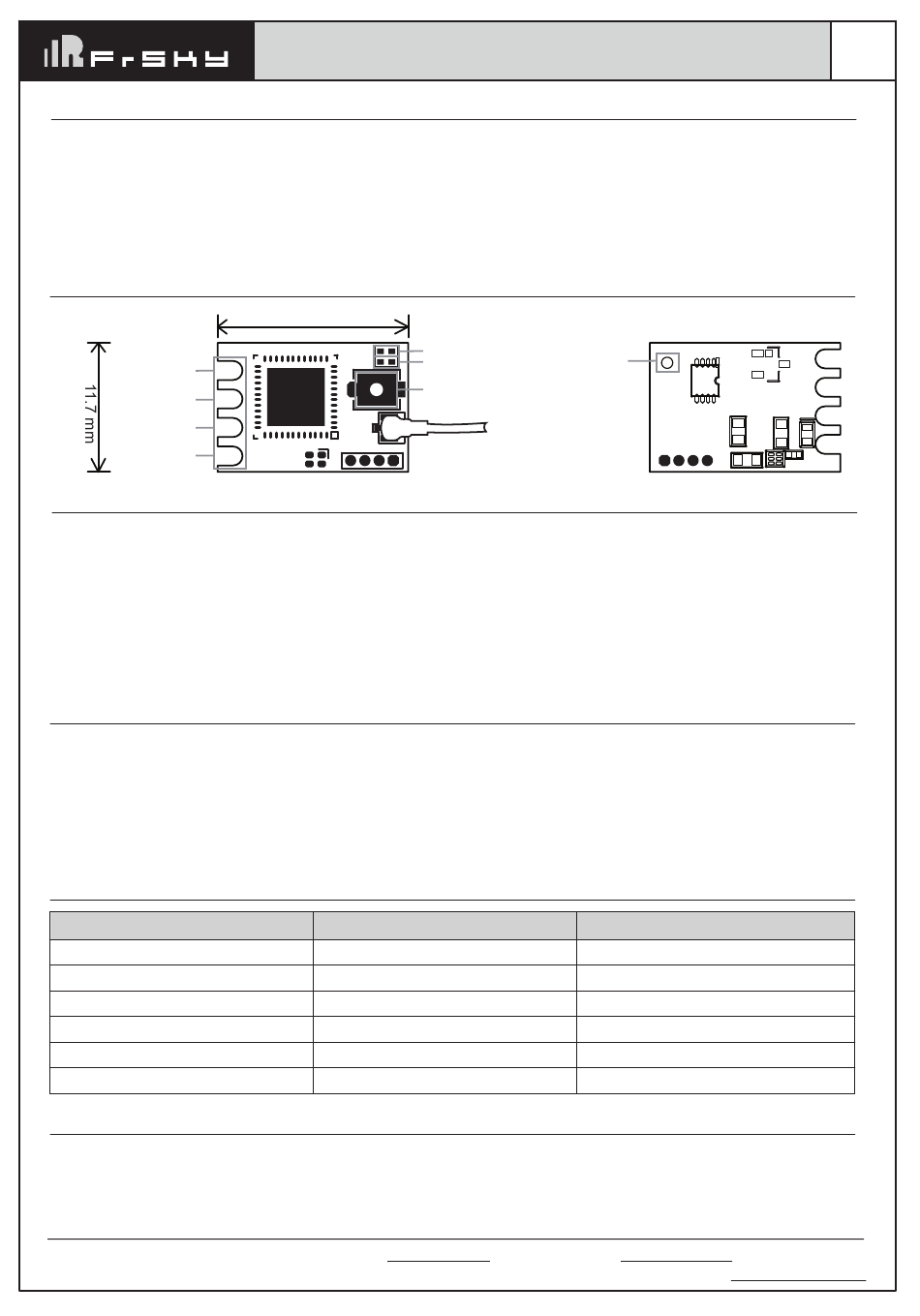

Overview
SBUS OUT
S.Port
VIN
GND

Specifications

● Dimension: 17*11.7*4 mm (L*W*H)
● Weight: 1g
● Number of Channels: 16/24 SBUS channels
– 16 SBUS channels
– 24 SBUS channels (Stay tuned)
● Operating Voltage Range: 3.5 -10V
● Operating Current: 16mA@5V typ
● Operating Range: ＞2km (Full range) (*Range may vary based on local conditions.)
● Compatibility: All FrSky ACCESS transmitters

Features

● ACCESS protocol with Over The Air (OTA)
● Tiny and super lightweight
● Full control range & 500 to 600 meters telemetry range
● SBUS OUT
● S.Port / F.Port
● Inverted S.Port
● VFR (Valid Frame Rate) telemetry

LED state

Green LED
On
Flash
On
On
On
Off
Registration & Automatic binding (Smart Match )
With the FrSky ACCESS protocol, the transmitter/transmitter module can bind receiver without using the "REG"
button.
Follow the step below to finish the Registration & binding procedure:
1. Put the transmitter/transmitter module into [Reg] status.
1.1 For Taranis X-Lite Pro as an example, turn on the transmitter, go to the MENU-MODEL SETUP-PAGE 2,
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky ARCHER M+ Receiver
17 mm
RED
GREEN
Button
Red LED
On
Flash
On
Off
Off
On
TM
www.frsky-rc.com
01140150
Inverted S.Port
Register
Register successfully
Bind successfully
Working normally
Failsafe
Contact us : frsky@frsky-rc.com
Version
1.0
Status
Bind
