Introduction

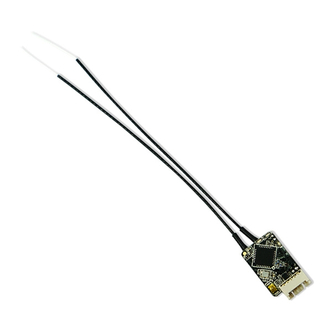

Thank you for purchasing FrSky R-XSR full duplex telemetry receiver. In order to fully enjoy the benefits of this
system, please read the instruction manual carefully and set up the device as described below.

Overview

Specifications

Dimension: 16*11*5.4mm (L x W x H)
Weight: 1.5g
Number of Channels: 16CH
Operating Voltage Range: 3.5V~10V
Operating Current: 70mA@5V
Operating Range: Full range
Firmware Upgradable
Compatibility: ACCESS

Features

ACCESS Protocol
Smart Port enabled
SBUS/CPPM output (BLUE LED stay lit indicates R-XSR in SBUS mode, otherwise in CPPM mode)
How to switch SBUS and CPPM signal: Long press the F/S button on the receiver for 4 seconds, the BLUE LED
will flash three times, indicating the switch is completed.
R-XSR supports the redundancy function for the master and slave receivers. The master receiver receives SBUS
signal from the slave receiver. The master receiver can be R-XSR, and the slave receiver can be receiver with
SBUS output.
Smart Port (S. Port) is a signal wire full duplex digital transmission interface developed by FrSky
Electronic Co., Ltd. All products enabled with Smart Port (including XJT module, XSR,X6R and X8R receiver,
new hub-less sensors, new Smart Dashboard, etc), serial port user data and other user input/output devices
can be connected without limitations for numbers or sequences at a high transmission speed.
FrSky 2.4GHz ACCESS R-XSR Manual
GND
+5V
S.Port
SBUS_OUT/CPPM
SBUS_IN
F/S
16.000 mm
GND
+5V
S.Port
SBUS_OUT/CPPM
SBUS_IN
F/S
16.000 mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2.4GHz ACCESS R-XSR and is the answer not in the manual?

Questions and answers

Сергей
April 28, 2025

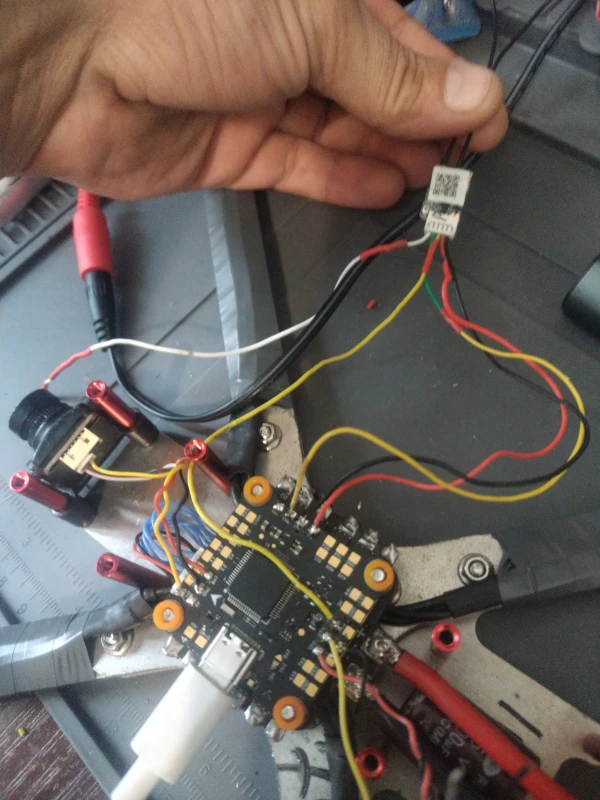

Подключение к полетному контроллеру hk4530 v2.1

User image 680f7ef92288b
1 comments:
Mr. Anderson
May 15, 2025

To connect the FrSky R-XSR to the HK4530 V2.1 flight controller, follow these steps:

1. Identify R-XSR pins:
- GND (Ground)
- +5V (Power)
- SBUS_OUT (Signal output for control)
- S.Port (Telemetry)

2. Match R-XSR to flight controller ports:
- Connect R-XSR GND to flight controller GND
- Connect R-XSR +5V to flight controller 5V
- Connect R-XSR SBUS_OUT to flight controller RX input, typically UART4 RX (TX4) if using TX4 as smart port
- Connect R-XSR S.Port to flight controller TX4 if it is assigned as smart port (as mentioned in the context)

3. Set receiver mode:
- Ensure R-XSR is in SBUS mode (BLUE LED stays solid)
- If needed, hold the F/S button on the receiver for 4 seconds to toggle between SBUS and CPPM

4. Continuity check:
- Before powering on, do a continuity test with a multimeter to ensure no short circuits

5. Mount the flight controller:
- Install using standoffs on the frame before connecting power

This setup enables control signal via SBUS and telemetry via SmartPort using UART4 (TX4).

This answer is automatically generated
